4 Commissioning
Festo – P.BE-MPA-E N – 1309f – English 91
4.4 Mounting/removing the manual override cover cap (optional)
The detenting/non-detenting function of the manual override can be modified to only non-detenting
actuation by mounting the MO c over cap.
4.4.1 Mounting
Proceed as follows:
1. Check that the c orresponding manual override is in an unactuated status. If applicable, place a
detenting manual override in the initial position ( Tab. 4.5).
2. Place the cap on the manual override so that the snap hooks of the cover can grip into the recess on
the manual override.
3. Clip the manual override cap into the recesses of the manual override ( Fig. 4.3):
1
2
1 Manual override cover caps 2 MO

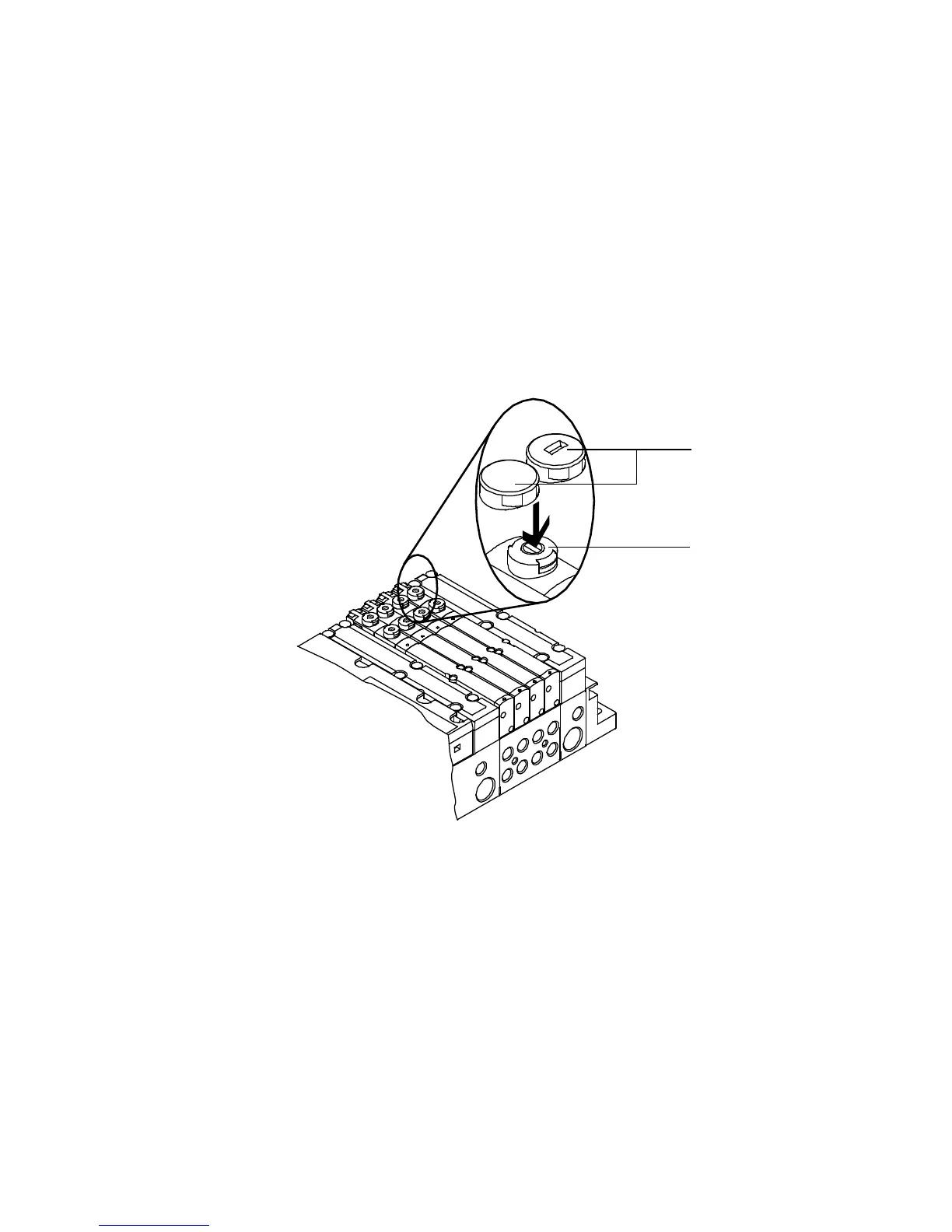

Fig. 4.3 Mounting the manual override cover caps
