2.5.3 Multi-pin connecting c omponents
You will find the following electric connecting elements on the multi-pin plug connection of the MPA-S
valve terminal:
1
2
3
1 Multi-pin plug cov er with cable
2 Connection for functional earth
3 SUB-D connection

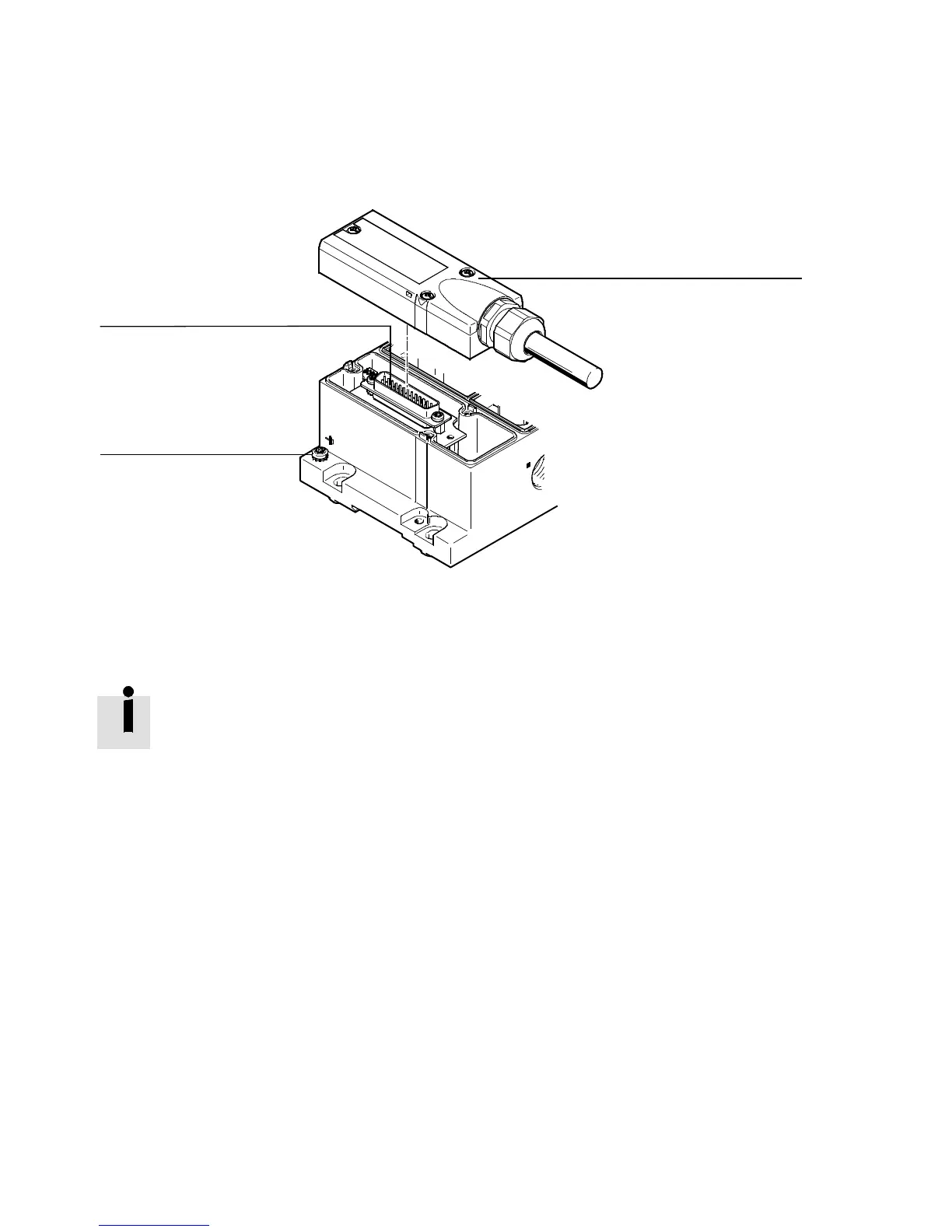

Fig. 2.16 Electric connecting elements of MPA-S valve terminal with multi-pin plug connection
Information on the electronics module of the MPA-S valve terminal c an be found in the
package inser t and the M PA -.... electronics description.
