3 Mounting and installation
Festo – P.BE-MPA-E N – 1309f – English 53
A
B
1
2
3
4
1 H-rail
2 Retaining screw of the H-rail clamping unit
3 Clamping component of the H-rail clamping
unit
4 Mounting surface

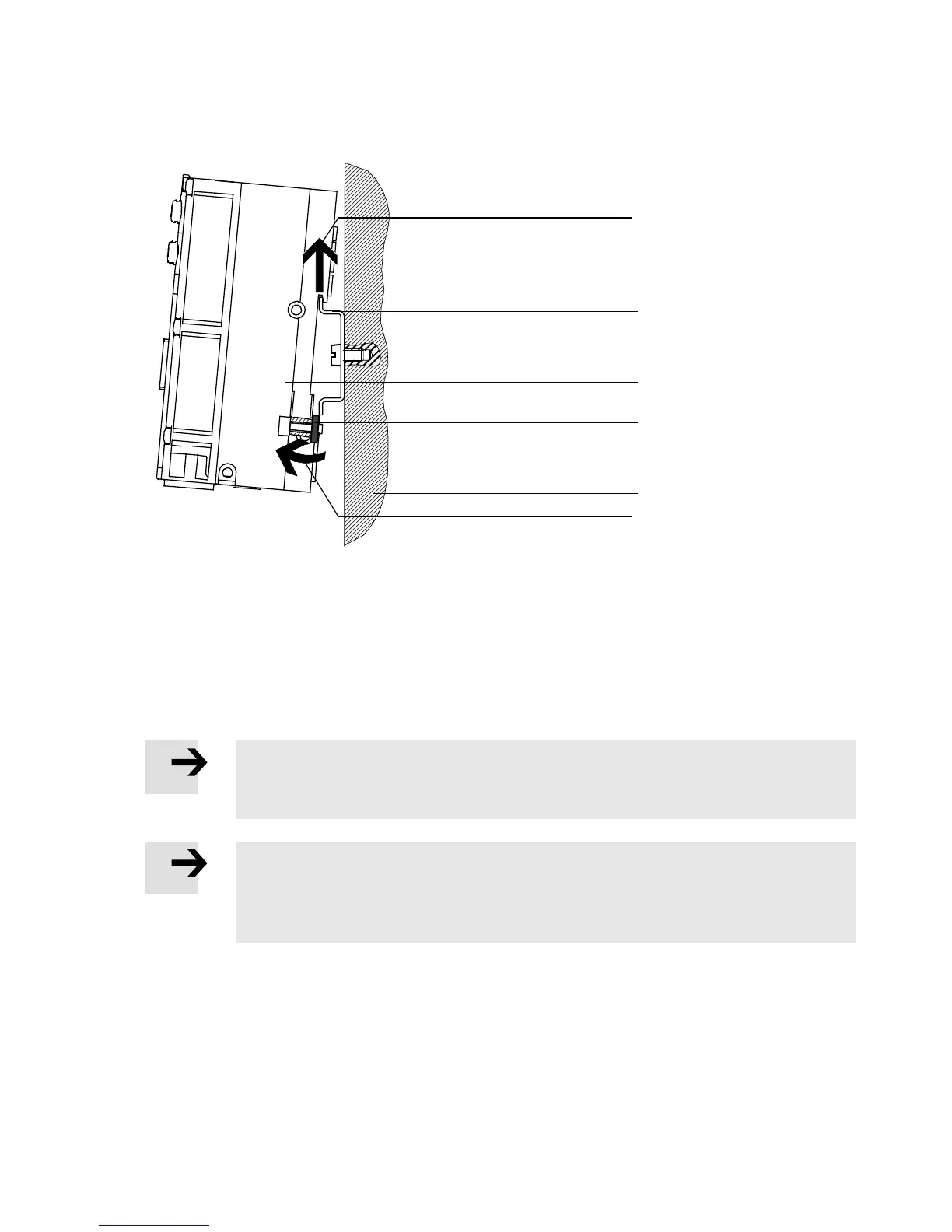

Fig. 3.3 Dismounting of the MPA-S valve terminal
3.2.2 Mounting/dismounting on walls
Note
Installation on uneven, flexible surfaces can dama ge the valve terminal MPA-S.
• Mount the MP A-S valve terminal only on a flat, torsionally rigid surface.
Note
Overloading of mounting holes or natural resonance when vibrating can cause damage.
• Besides the instructions on standard fastening points in section 3.2.3, also obser ve
the instructions on additional fastening in section 3.2.4.
