3.3 Mounting/dismounting the inscription label holder
An inscription label holder can be mounted onto each sub-base to enable the valves or work c onnec-
tions to be distinguished.
InformationonaccessoriescanbefoundintheFestoCatalogue
( www.festo.com/catalogue).
Mounting
Proceed as follows:
• Clip the inscription label holders into th e recesses in the sub-bases ( Fig. 3.4):
1
2
1 Fixture for the inscription label holder on the
sub-base
2 Inscription label holder

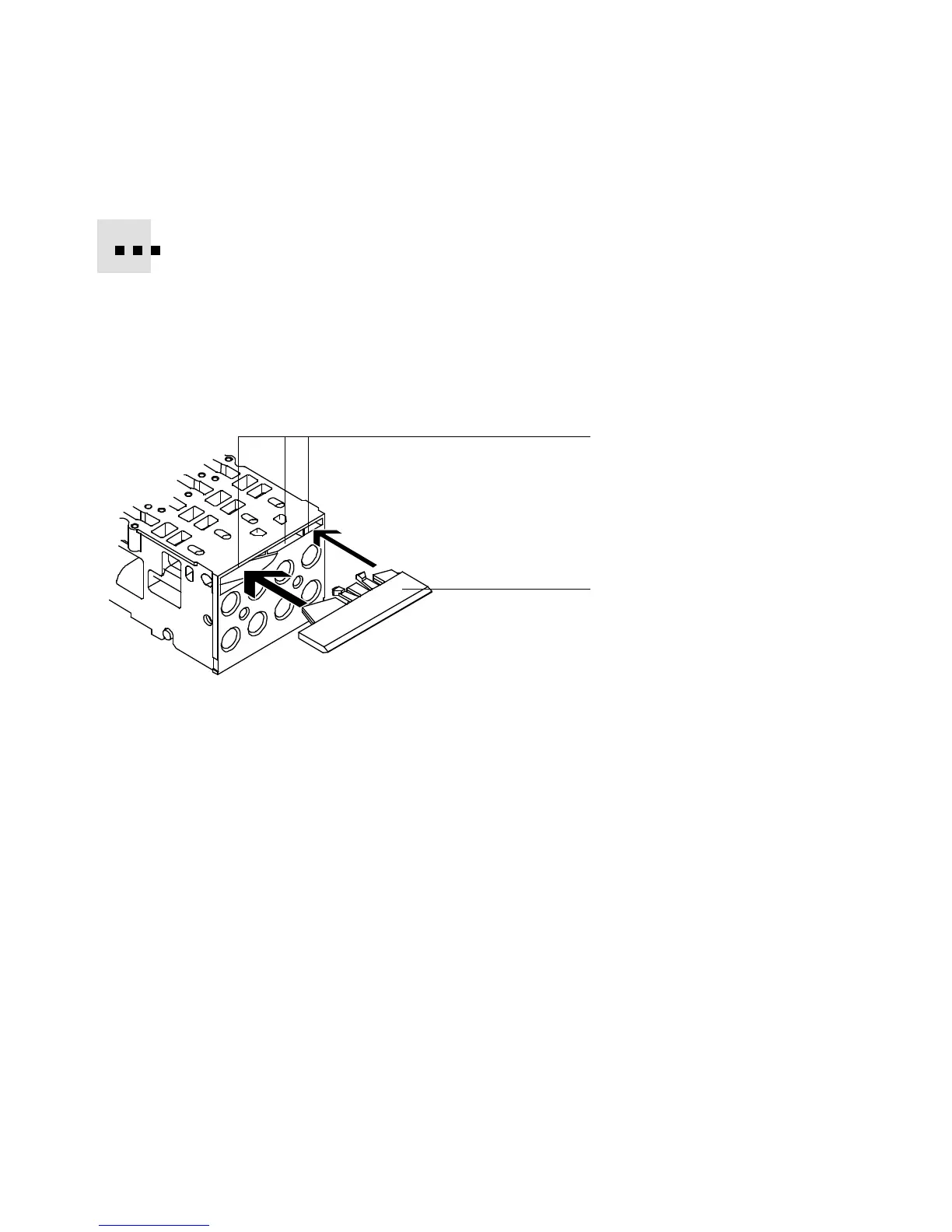

Fig. 3.4 Mounting the inscription label holder
