2Overview
20 Festo – P.BE-MPA-EN – 1309f – English
2.4 Description of components

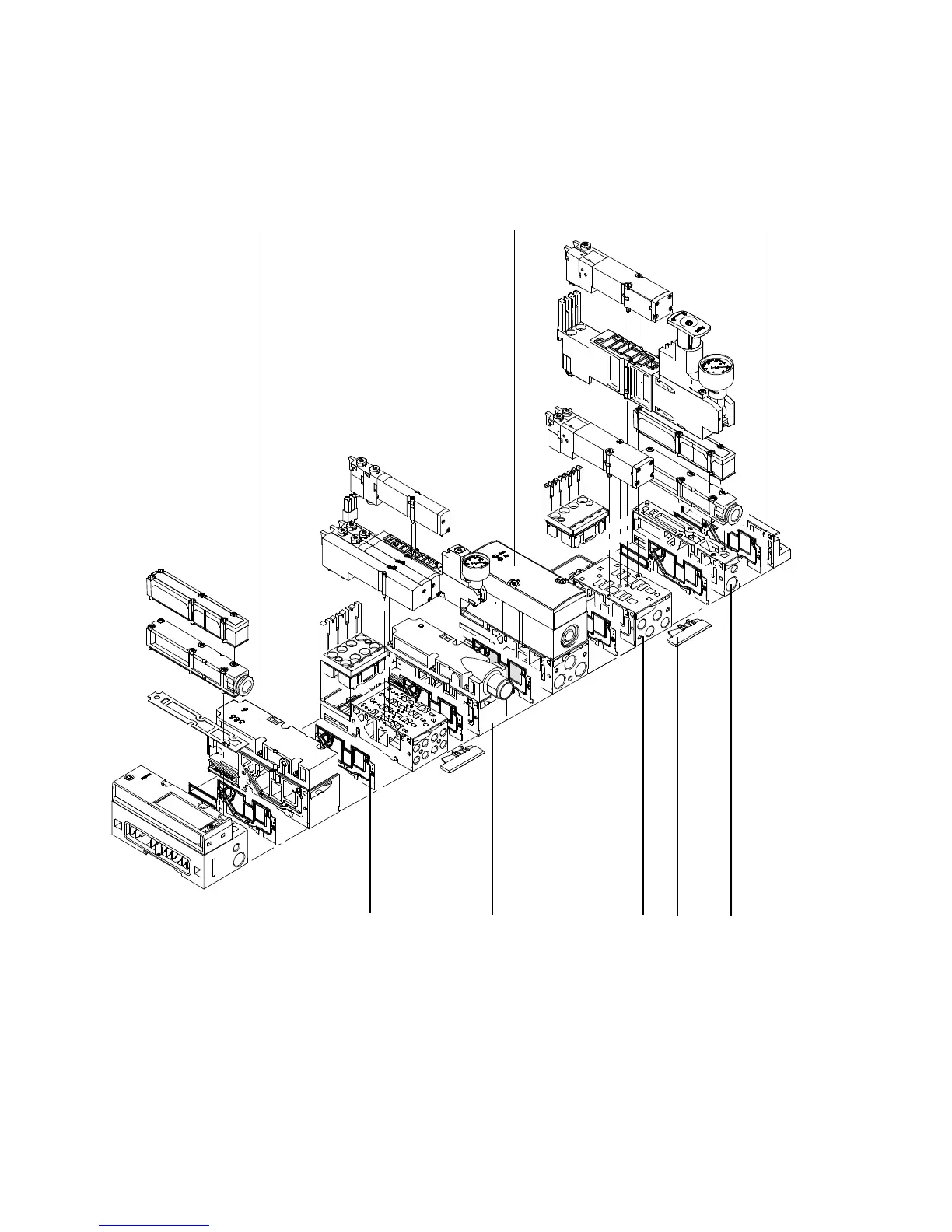

The MPA-S valve terminal with CPX terminal or CPI module consists of the following pneumatic compon-
ents:
123
456
7
8
1 Only for MPA-S with CPX terminal:
2 Only for MPA-S with CPX terminal: LED/LCD
proport ional-pressure regulator or cover
plate
3 Right end plate
4 Pneumatic air supply plate
5 Inscription label with support
6 Sub-base with working ports and serial
linking (bus)
7 Electrical air supply plate
8 Seal (opt ional separating seal for pressure
zone separation)
Fig. 2.6 Components of the MPA-S valve terminal with CPX terminal or CPI module, 1st level
