Festo MPA-S - MPA-S Valve Terminal with CPI Module or AS-Interface

3 Mounting and installation
Festo – P.BE-MPA-E N – 1309f – English 79
0
1
2
3
4
1
0
3
2
6
7
5
1)
1)
1)
1)
123
4
5
6
7
1
2
7
6
1) Unused addresses
1 Valve sub-bases with two solenoid coils
2 Valve sub-bases with one solenoid coil
3 Blanking plate
4 Pneumatics module (MPA2)
5 Pneumatics module (MPA1)
6 Addresses of the solenoid coils 14
7 Addresses of the solenoid coils 12

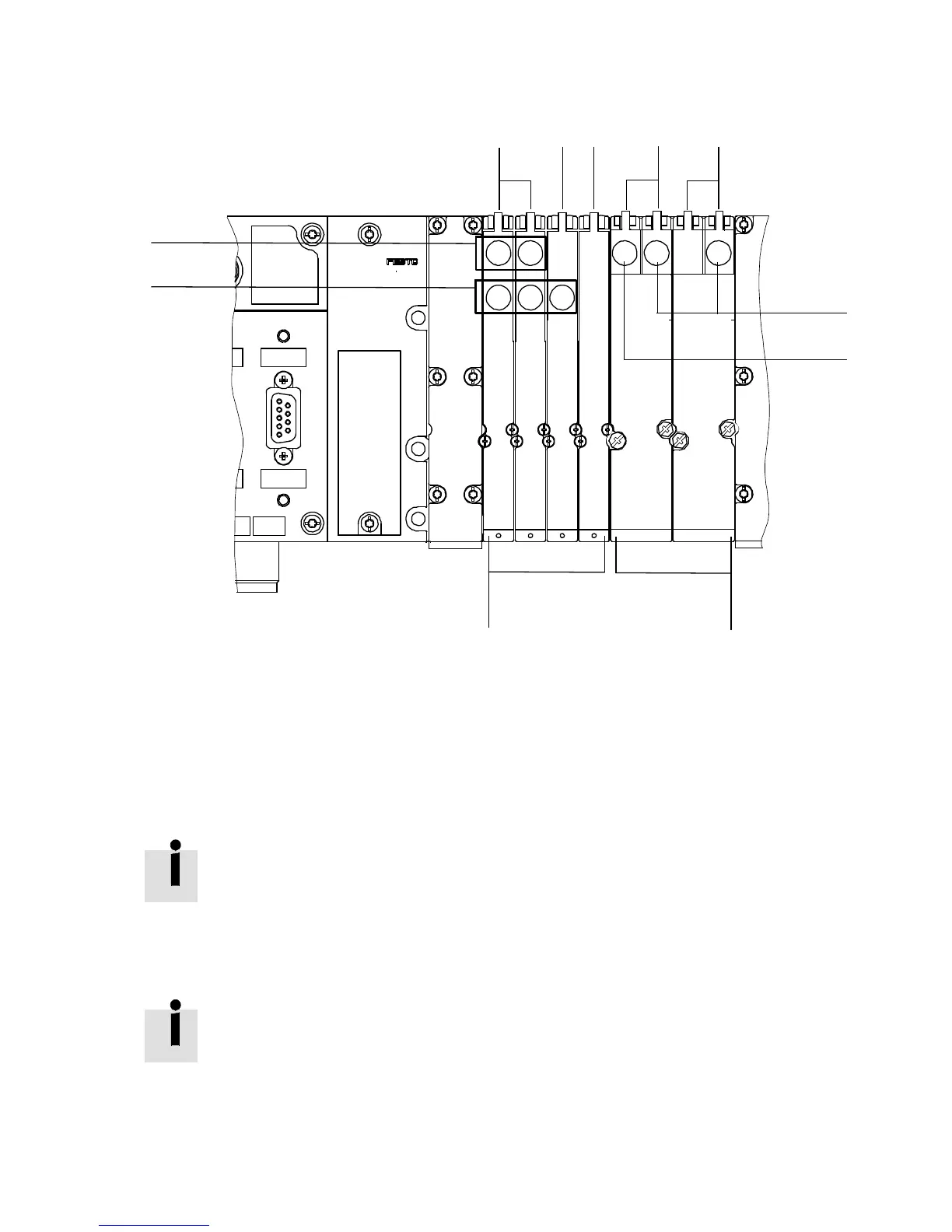

Fig. 3.16 Example: address assignment of an M PA-S valve terminal with CPX terminal, 6 valve posi-
tions (top view)
Detailed instructions on addressing the pneumatics modules of the MPA-S valve terminal
with CPX terminal can be found in the M PA-... electronics description or the corresponding
description for the bus node ( system description for your CPX terminal, table “Descrip-
tions of the CPX terminal”).
3.9.2 MPA-S valve terminal with CPI module or AS-interface
Instructio ns on addressing the pneumatics modules can be found in the package insert.
