2Overview
Festo – P.BE-MPA-E N – 1309f – English 15
2.2 Over view of variants
Valve terminal with CPX terminal
This variant of the MPA-S valve terminal is available in the following grades:
MPA-S valve terminal with CPX terminal
Number of v alve positions
1)
Load voltage supply for the valves via ... MPA1 MPA2
–CPXterminal
2)
4, 8, 12 … 32 2, 4, 6 … 16
– CPX terminal and electric air supply plate (MPA)
3)
4, 8, 12 … 64 2, 4, 6 … 32
1) Two solenoid coils can be controlled per valve position.
2) A max. of 64 solenoid coils can be supplied.
3) A max. of 128 solenoid coils can be supplied.
Tab. 2.1 Number of valve locations of the MPA-S valve terminal with CPX terminal

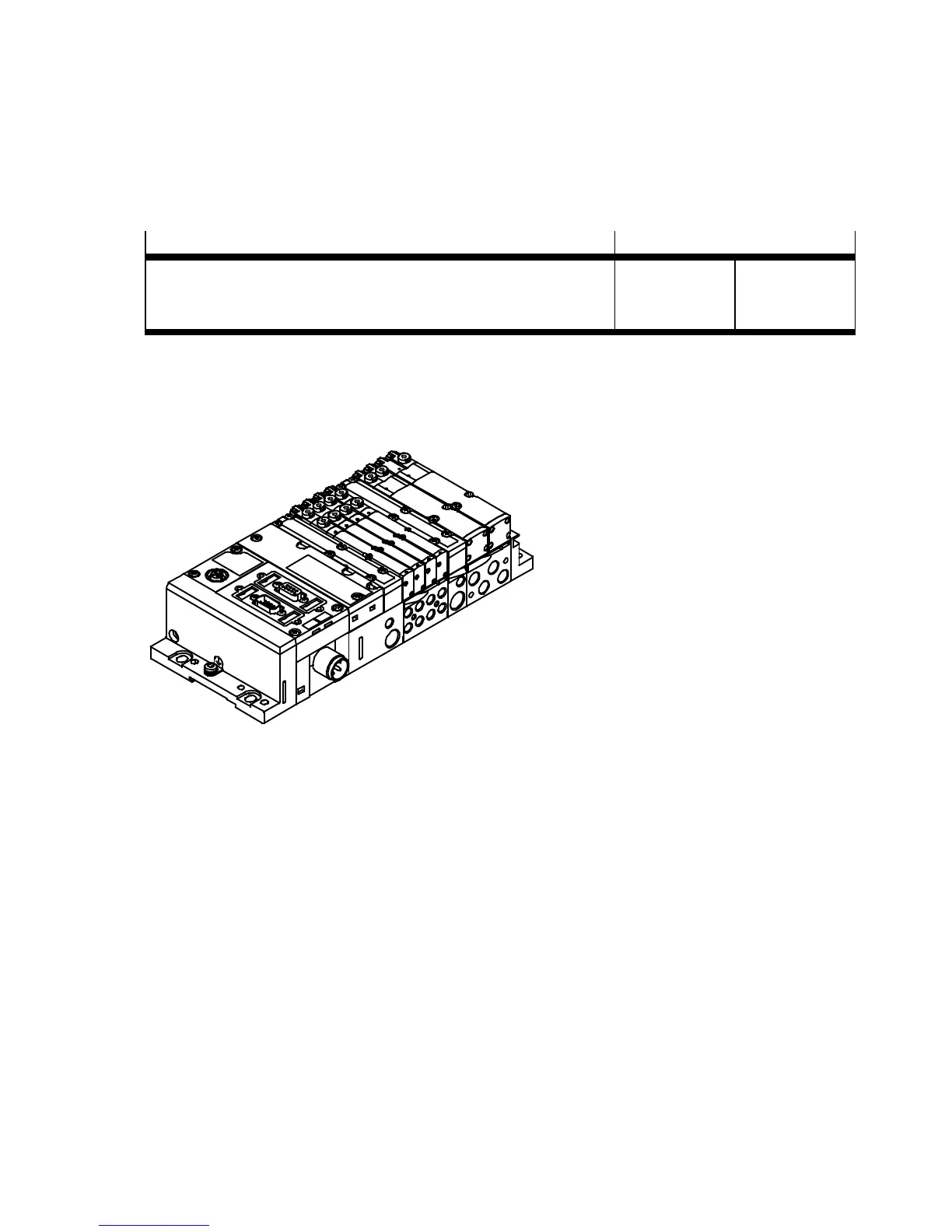

Fig. 2.1 MPA-S valve terminal with CPX terminal
