4 Commissioning
86 Festo – P.BE-MPA-EN – 1309f – English
4.2 Manual override (MO)
The manual override has been designed to be used as follows:
Actuation type
Mode of operation
non-detenting After actuation, the manual override is reset
automatically by a spring.
turning with detent The manual override remains actuated until it is
reset by hand.
Tab. 4.2 Actuation types of th e manual override
The detenting/non-detenting function of the manual override can be modified to only
non-detenting actuation if a c ap is fitted.
The assignment of the manual overrides to the solenoid coils is as follows:
12 12 12 12
14 14 14 14 14 14 14 14
12 14 14
1
2
1
2
34
1 Manual override for solenoid coils 12
2 Manual override for solenoid coils 14
3 Valve size MPA2
4 Valve size MPA1

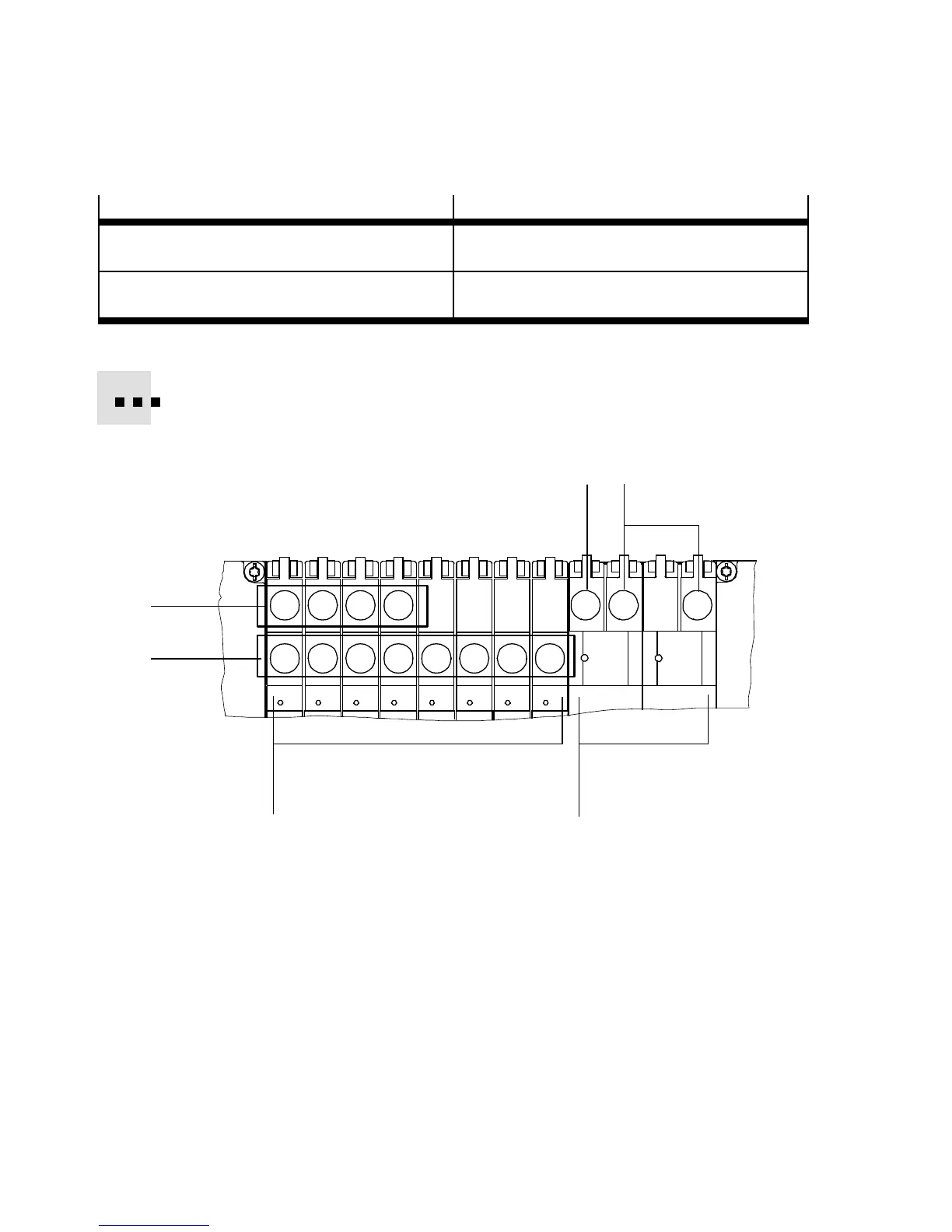

Fig. 4.2 Position of the manual overrides (top view)
