2.6.3 Proportional-pres su re regulator with LCD display
The proportional pressure regulator with LCD display has the following operation and display compon-
ents:
12
3
4
5
6
1 Proport io nal pressure regulator
2 Display
3 DOWN button
4 EDIT button
5 UP button
6 Red error LED

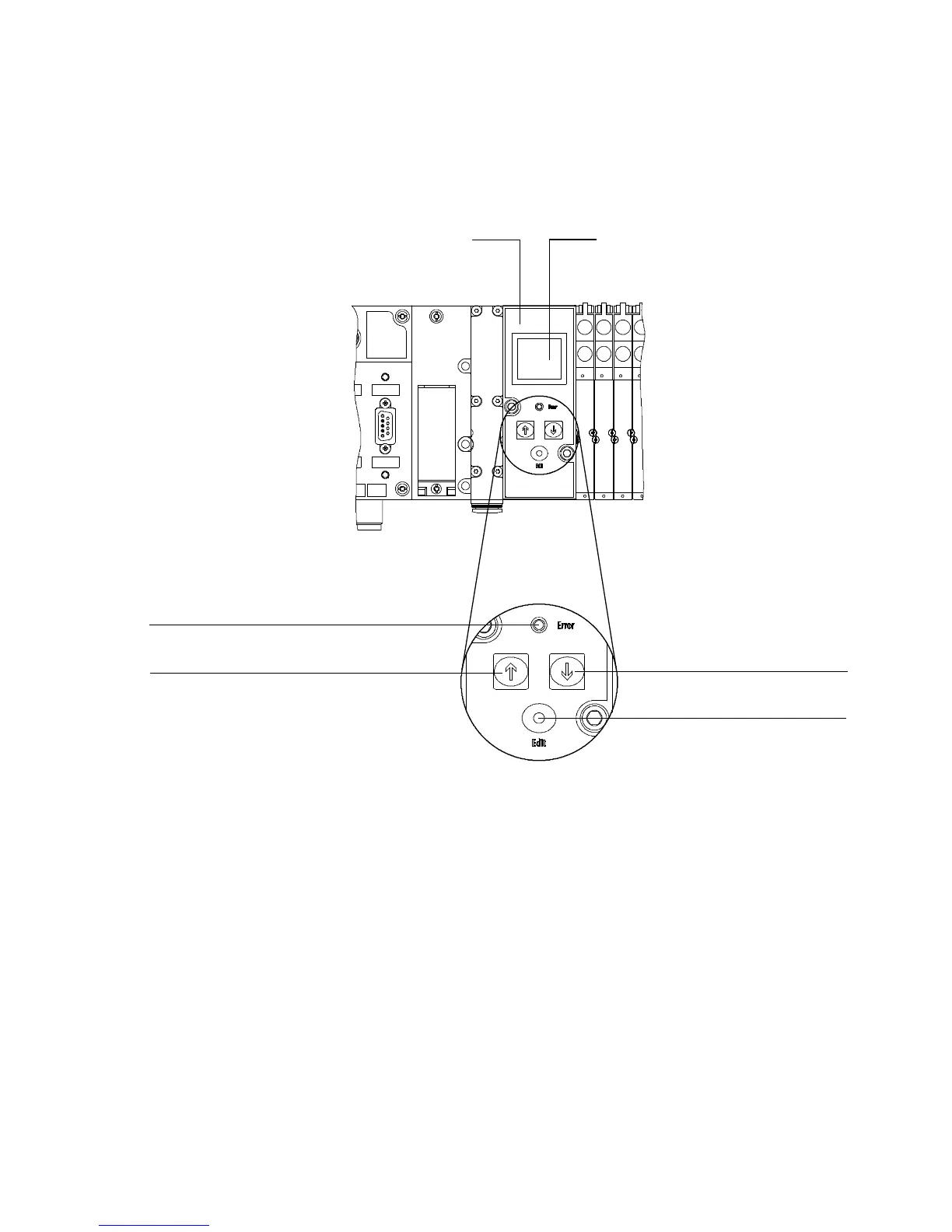

Fig. 2.21 Operation and display components of the LCD proportional pressure regulator
Menu navigation
RUN mode
The RUN mode is the basic condition of the pressure re g ulator. The following paramet ers are shown in
the display:
–Comparatorbit
– PR ESET setting from the c ontroller
– Current pressure valve (short pressing and holding down of the DOWN and/or UP key displays the
setpoint value)
– Dynamic bar graph display for fast signal changes (dependent on the displayed signal in the num-
bers field)
