2Overview
24 Festo – P.BE-MPA-EN – 1309f – English
A description of the electric c omponents of the MPA-S valve terminal with CPI module or
with AS interface can be found in the corresponding package insert.
The MPA-S v alve terminal with CPX terminal consists of the following electric components:
0
1
2
3
4
5
6
7
8
DI
PS
PM
SF
M
Run
STOP
Err
SP
1
2
3
4
1 CPX bus node
2 Electrical part of the pneumatic interface
3 Further optional CPX modules
4 Left end plate (CPX)

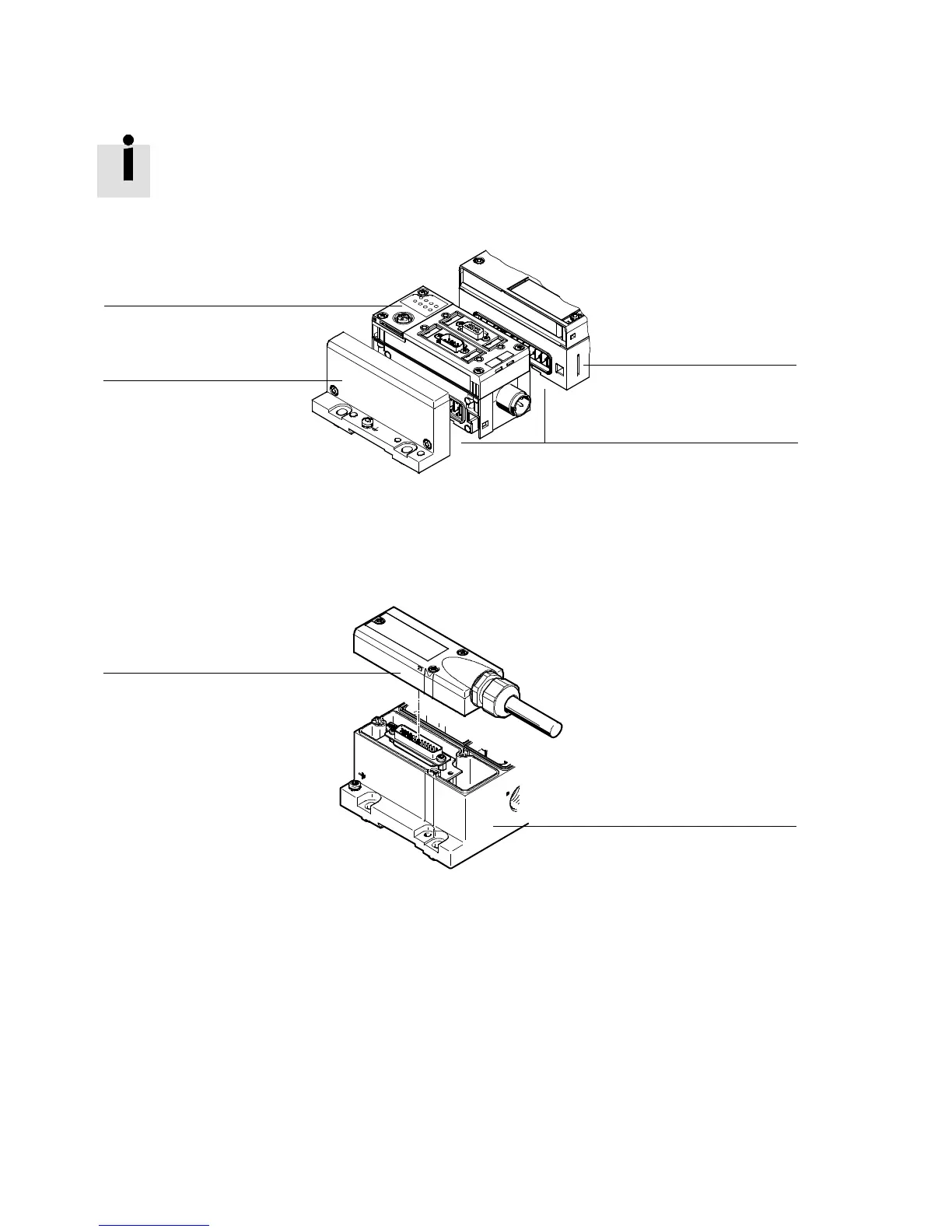

Fig. 2.10 Electric components of the MPA-S valve terminal with CPX terminal
The MPA-S valve terminal with multi-pin plug connection Sub-D consists of the following electric
components:
2
1
1 Multi-pin plug socket with cable 2 Electrical part of the multiple co nnect or plate
with Sub-D co nnect ion
Fig. 2.11 Electric components of the MPA-S valve terminal with multi-pin plug connection Sub-D
2.4.1 Sizes
The components of the valve terminal are available in the sizes:
– MPA1:width10mm
– MPA2:width20mm
2.4.2 Valves
The MPA-S valve terminal can be equipped with 2x 2/2 -way valves, 2x 3/2-way valves, 5/2 -way valves
(monost able and impulse), 5/3-way valves and proportional-pressure regulators.
