B Supplementary component overview
Festo – P.BE-MPA-E N – 1309f – English 163
B.2.2 Mounting
Proceed as follows:
1. Check the exposed seals for damage. Replace the seals if they are damaged.
2. Place the seal onto the guide pins of the port pattern.
1
2
3
1
4

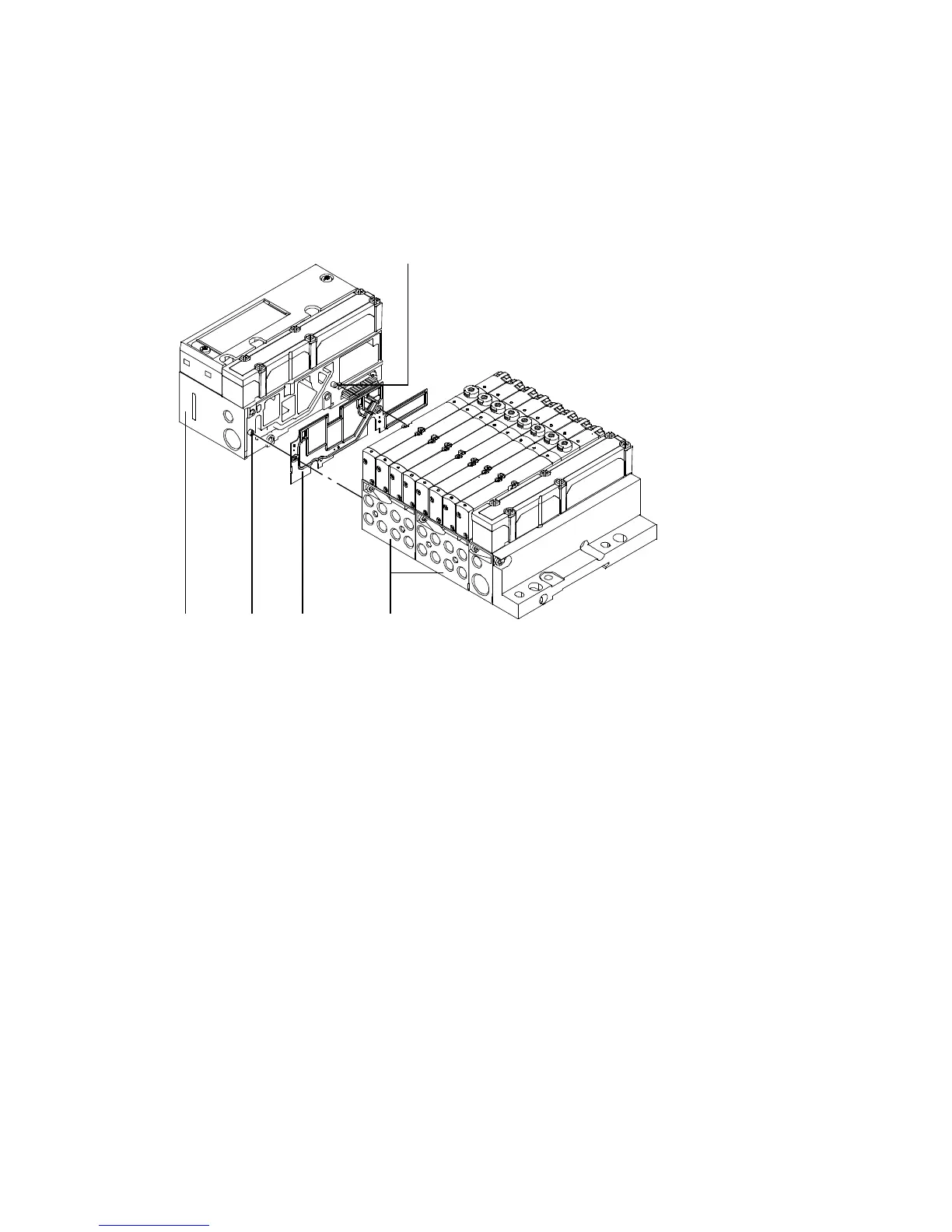

1 Guide pins
2 Pneumatic manifold blocks
3 Seal
4 Port pattern
Fig. B.3 Mounting the MPA-S valve terminal to the port pattern
3. Push the port pa ttern together with the pneumatic manifold blocks. Make sure th at the seal and the
components are correctly positioned toward each other.
