2Overview
16 Festo – P.BE-MPA-EN – 1309f – English
MPA-S valve terminal with CPI interface
This variant of the MPA-S valve terminal is available in the following grades:
MPA-S valve terminal with CPI interface
Number of v alve positions
1)
Load voltage supply for the valves via ... MPA1 MPA2
CPI interface
2)
4, 8 … 12 2, 4, 6 … 12
CPI interface and elec tric supply plate ( MPA)
3)
4, 8, 12 … 16 2, 4, 6 … 16
1) Two solenoid coils can be controlled per valve position.
2) A max. of 24 solenoid coils can be supplied.
3) A max. of 32 solenoid coils can be supplied.
Tab. 2.2 Number of valve positions of the MPA-S valve terminal with CPI interface

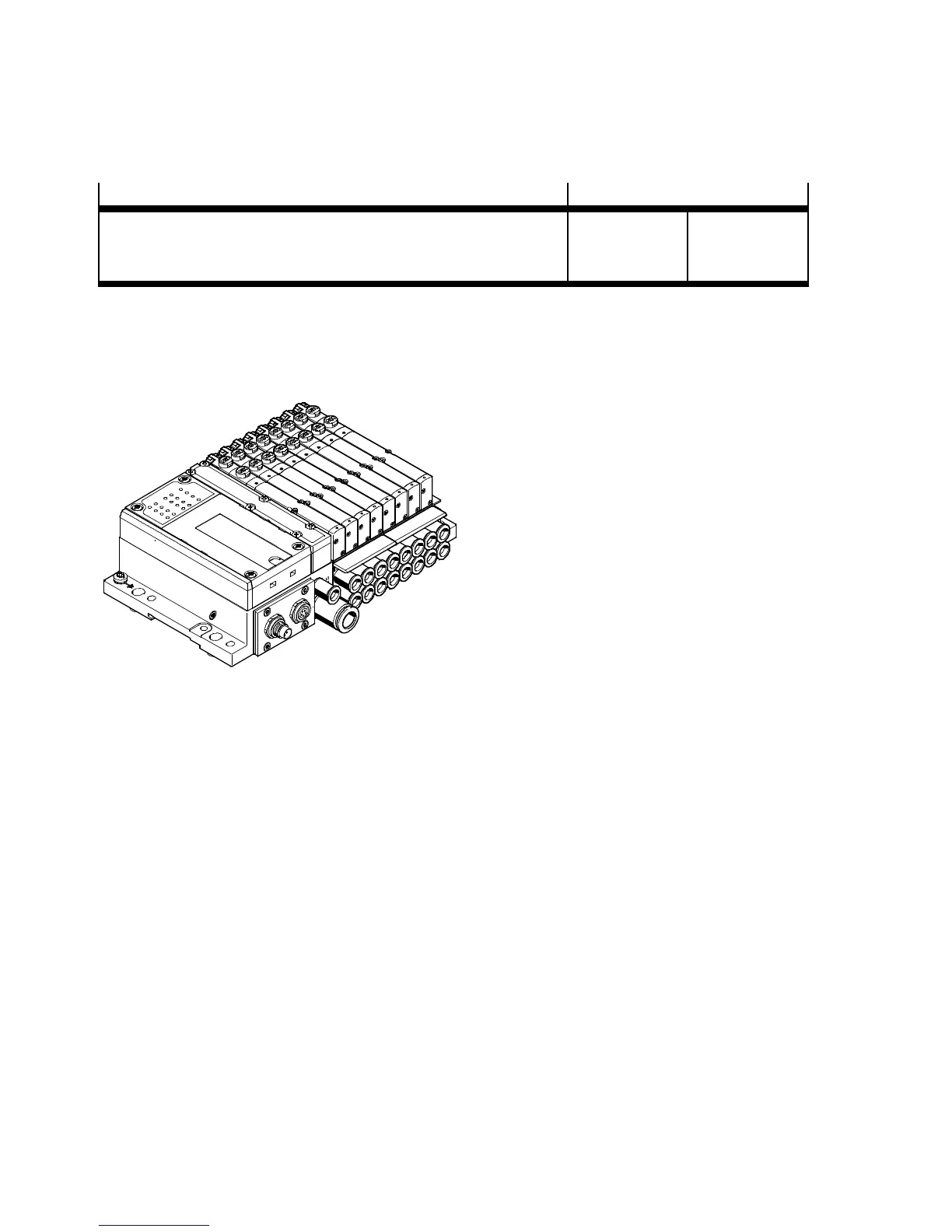

Fig. 2.2 MPA-S valve terminal with CPI interface
