2Overview
Festo – P.BE-MPA-E N – 1309f – English 21
1
1
2 3 4
5
1 Exhaust plate (3/5) or flat plate silencer
2 Electronic module with L EDs
3 Valve or blanking plate
4 Vertical pressure shut-o ff plate
5 Pressure regulator plate

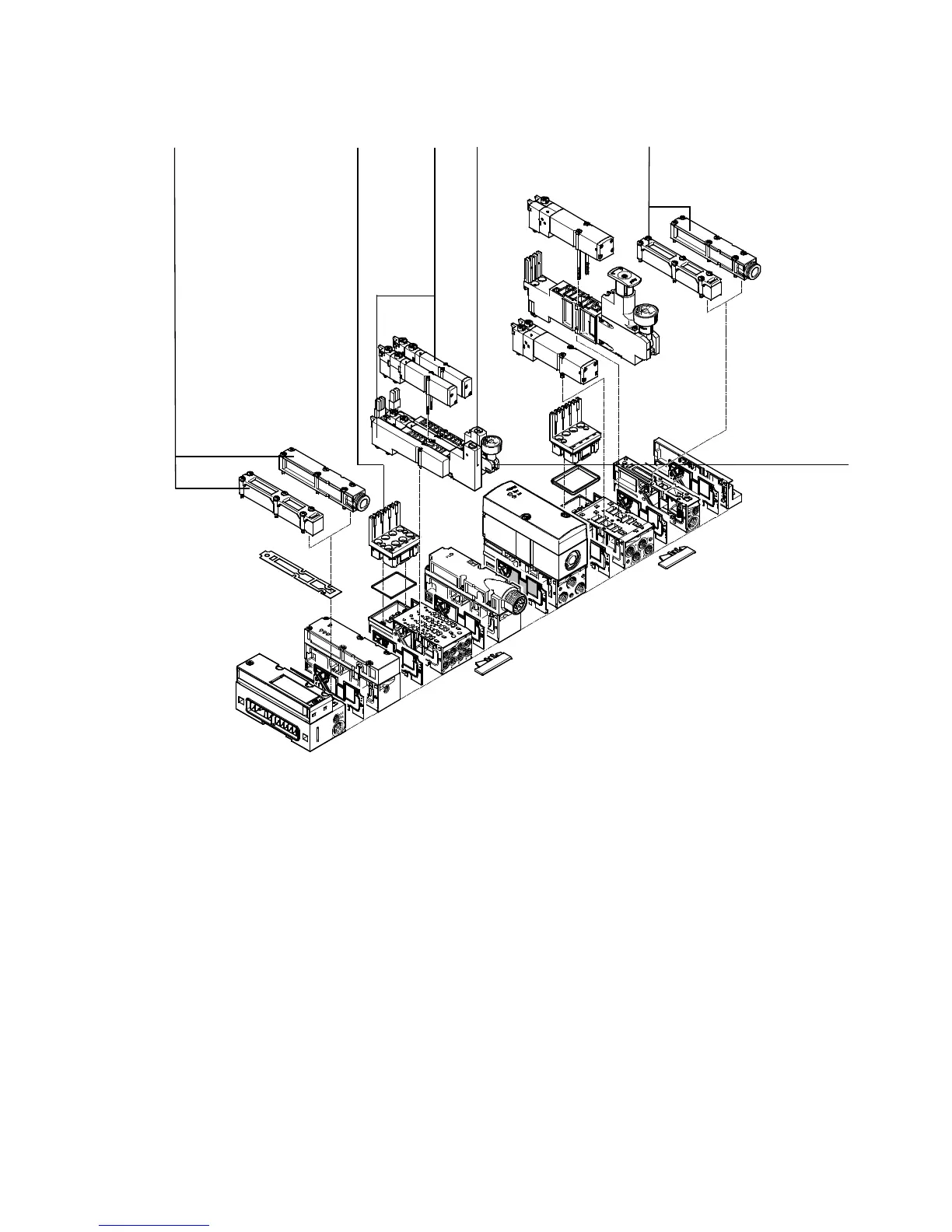

Fig. 2.7 Components of the MPA-S valve terminal with CPX terminal or CPI module, 2nd level
