3 Mounting and installation
Festo – P.BE-MPA-E N – 1309f – English 57
Dismounting
Proceed as follows:
1. Remove the 3rd and 4th valves from the corresponding sub-base.
2. Unloc k the inscription label holder by using a screwdriver (blade width max. 3.5 mm) to press down
the snap hooks ( Fig. 3.5).

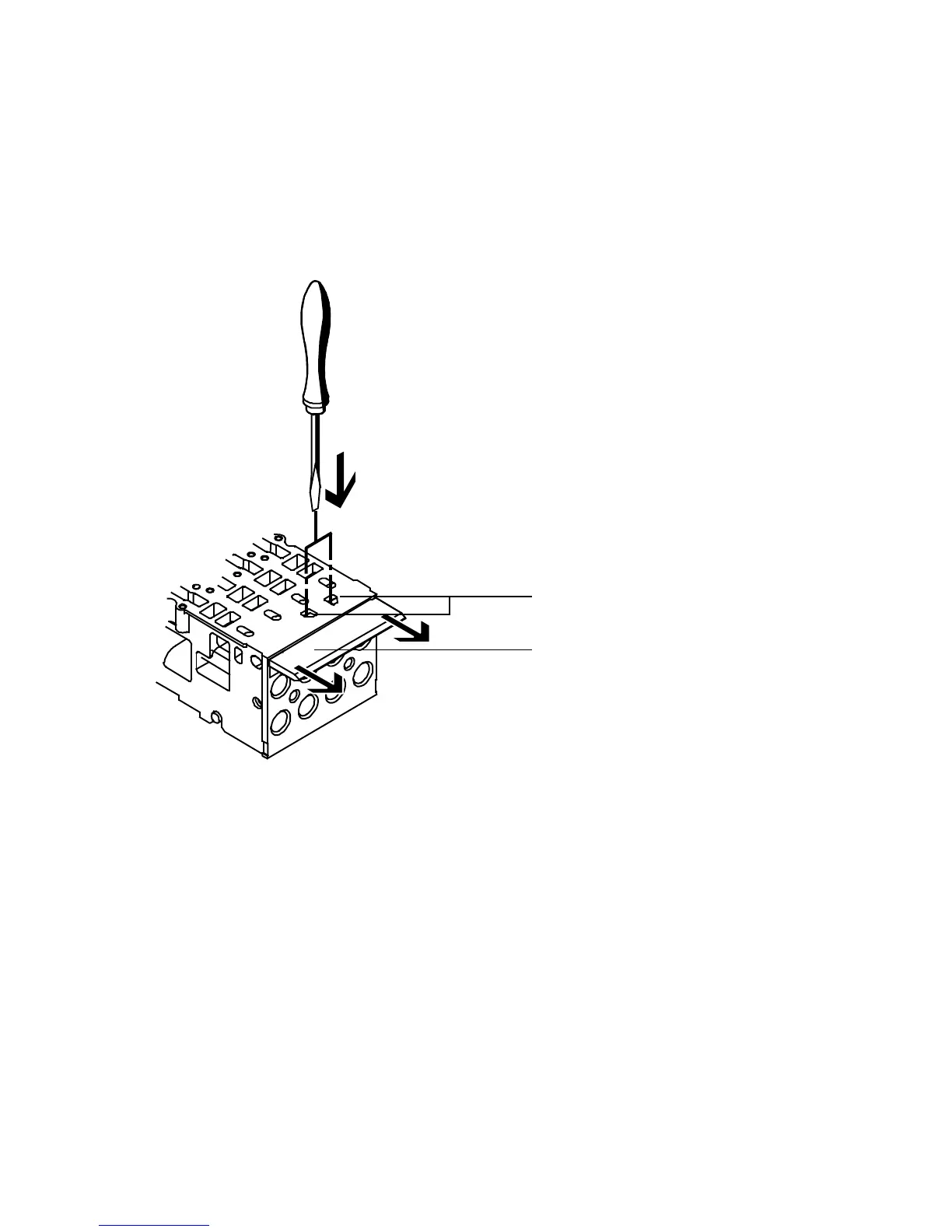

1
2
1 Hole for unlocking the inscription label
holder
2 Inscription label holder
Fig. 3.5 Dismounting the inscription label holder
3. Pull the inscription label holder out of the fixture in the sub-base.
