3 Mounting and installation
52 Festo – P.BE-MPA-EN – 1309f – English
(A)
1
2
1 H-rail
2 Clamping component of the H-rail clamping
unit

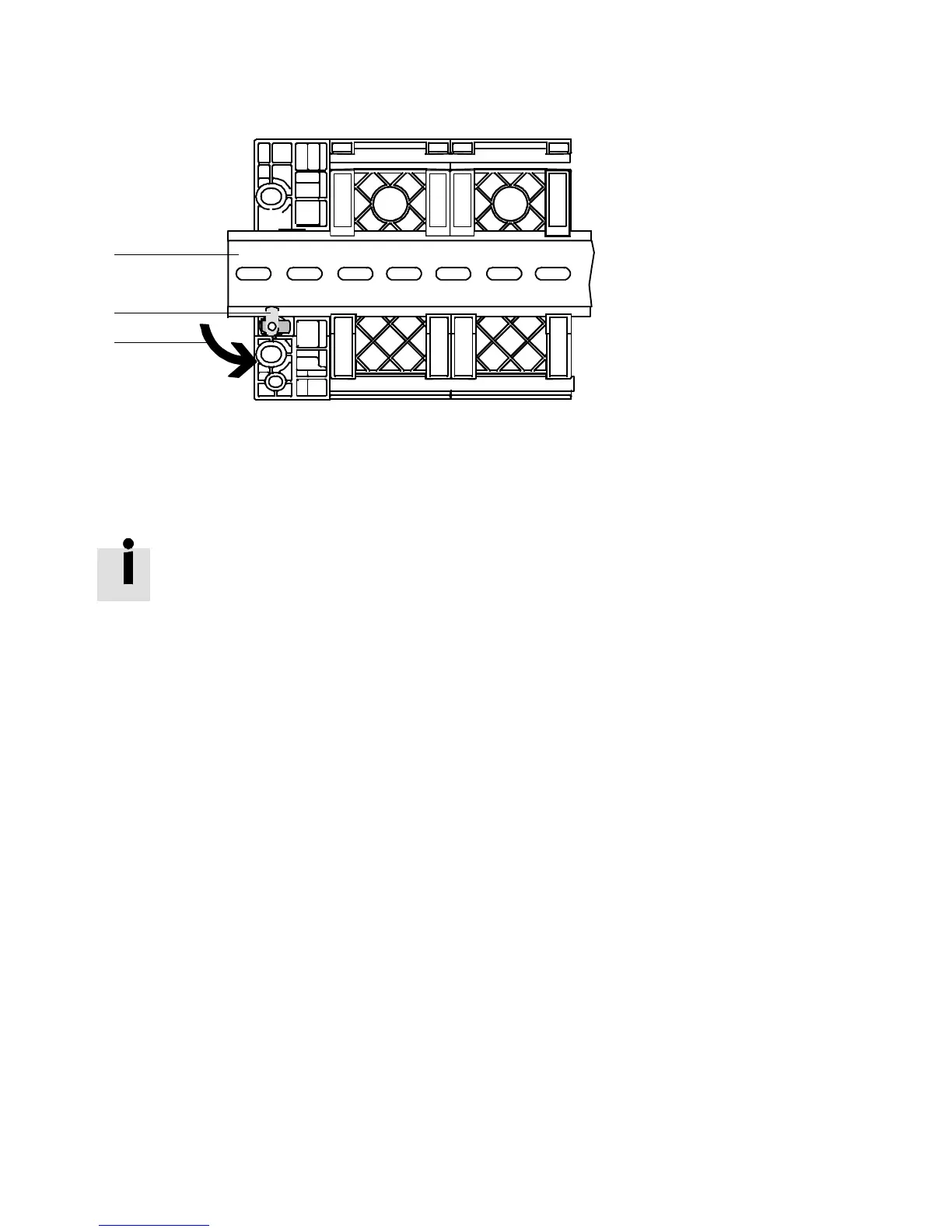

Fig. 3.2 Rear view: Mounting on an H-rail using the CPX terminal as an example
Further instructions on mounting the MPA-S valve terminal with CPX terminal on an H-rail
can be found in the system description for your CPX terminal.
Dismounting
Proceed as follows:
1. Loosen the retaining screw from the H-rail clamping unit (position of the screws Tab. 3.2). Make
sure that the c lamping c omponent is horizontal to the H-rail.
2. Swing the MPA-S valve terminal forwards from the H-rail ( Fig. 3.3).
3. LifttheMPA-SvalveterminalfromtheH-rail( Fig. 3.3).
