5 Conversion and maintenance
108 Festo – P.BE-MPA-EN – 1309f – English

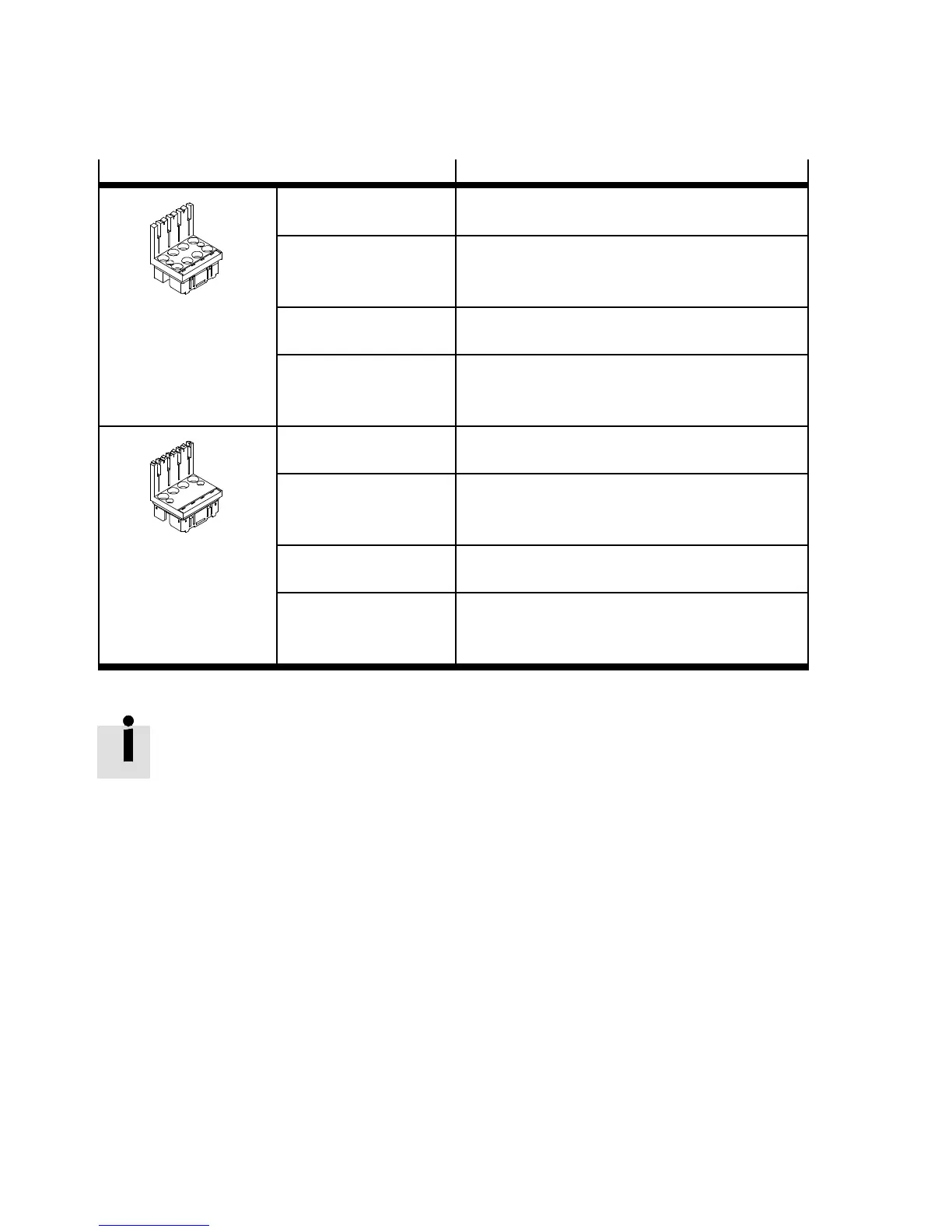

The following electronics modules are available for MPA-S with CPX terminal:
Type
Description of the electronics module
VMPA1-FB…
VMPA1-FB-E MG-8 – 4 valve positions/8 outputs (solenoid coils)
–withseparated circuits
VMPA1-FB-E MG-D2-8 – 4 valve positions/8 outputs (solenoid coils)
–withseparated circuits
– with diagnostic functions D2
VMPA1-FB-E MS-8 – 4 valve positions/8 outputs (solenoid coils)
–withcommon circuit
VMPA1-FB-E MS-D2-8 – 4 valve positions/8 outputs (solenoid coils)
–withcommon circuit
– with diagnostic functions D2
VMPA2-FB…
VMPA2-FB-E MG-4 – 2 valve positions/4 outputs (solenoid coils)
–withseparated circuits
VMPA2-FB-E MG-D2-4 – 2 valve positions/4 outputs (solenoid coils)
–withseparated circuits
– with diagnostic functions D2
VMPA2-FB-E MS-4 – 2 valve positions/4 outputs (solenoid coils)
–withcommon circuit
VMPA2-FB-E MS-D2-4 – 2 valve positions/4 outputs (solenoid coils)
–withcommon circuit
– with diagnostic functions D2
Tab. 5.3 Electronics modules for the MPA-S valve terminal with CPX terminal
Additional information on MPA electronics modules can be found in the package insert
and in the corresponding MPA-.... electronics description.
