5 Conversion and maintenance
110 Festo – P.BE-MPA-EN – 1309f – English
1
2
3
4
5
6
7
8
9
1 Mounting screws of the valve or blanking
plate
2 Valve or blanking plate
3 Cord seal
4 Electronics module
5 Sub-base
6 Inscription label holder
7 Seal of the electronics module
8 Mounting screws of the electronics module
9 2 conical ring seals per valve or blanking
plate

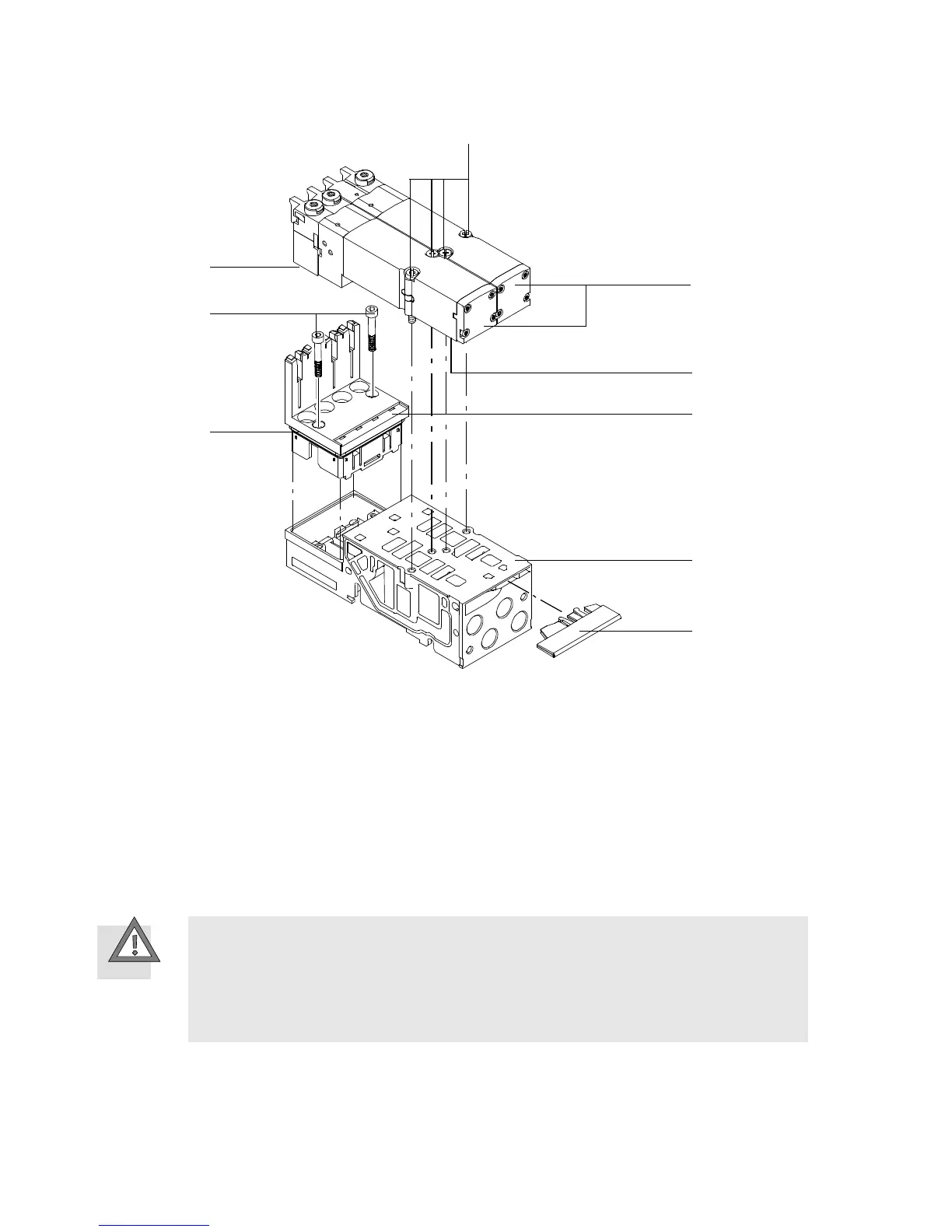

Fig. 5.5 Dismantling and mounting the electronics module (example MPA1)
Mounting the electronics module
Caution
When replacing an electronics module, mount only a n electronics module of the same
type.
– You then avoid problems in actuating the solenoid coils and damage to the electrical
contacts.
