5 Conversion and maintenance
Festo – P.BE-MPA-E N – 1309f – English 115
5. Loosen the corresponding interlinking board from above by unlocking the safety clips (e.g. with a
small screwdriver). Then pull the interlinking board to the right out of the sub-base.
1
1 Locking clip

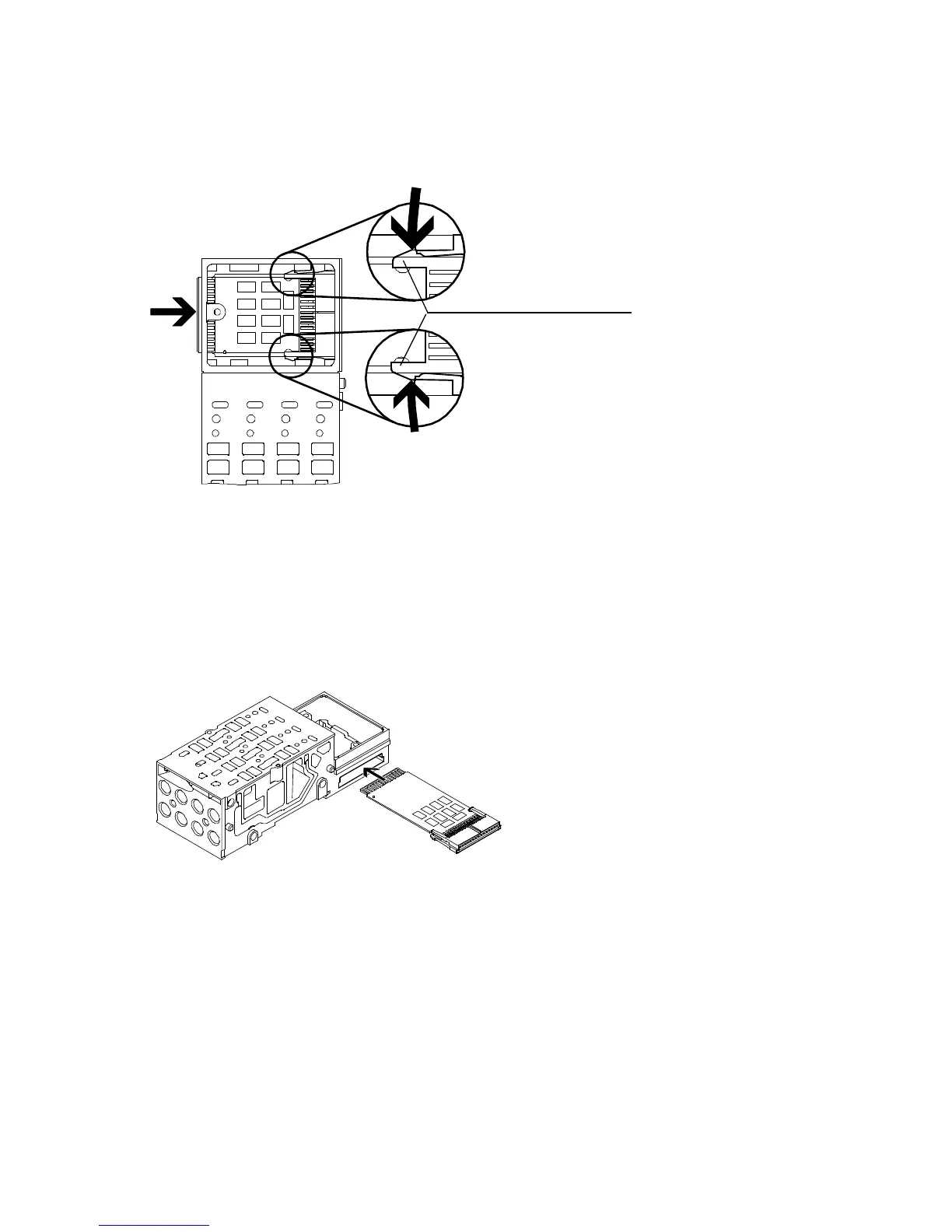

Fig. 5.10 Unlocking the interlinking board
Mounting
Proceed as follows:
1. Push the interlinking board to be mounted into the sub-base from the right until it clips into posi-
tion.
Fig. 5.11 Mounting the interlinking board
