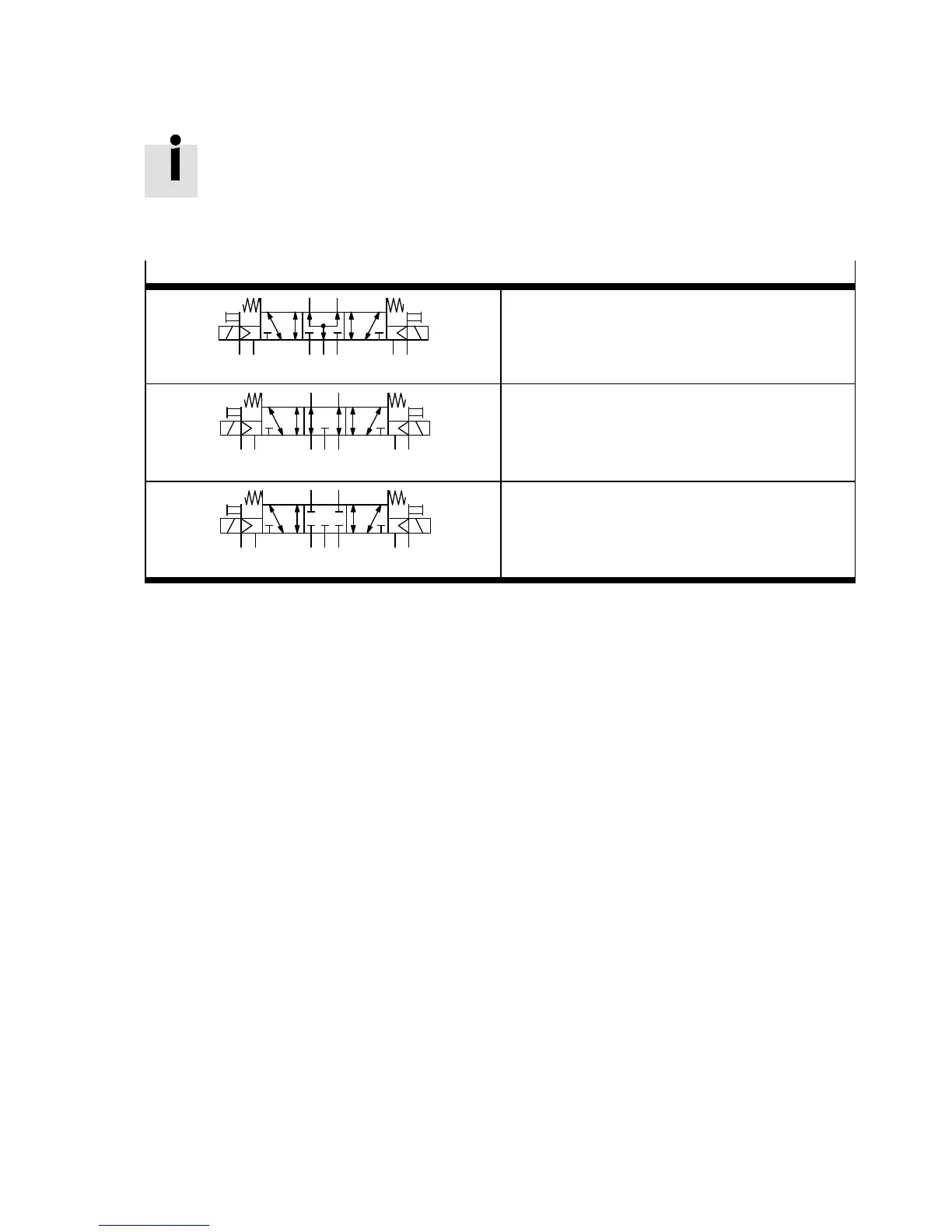

B Supplementary component overview
Festo – P.BE-MPA-E N – 1309f – English 153
– In a de-energised state 5/3-directional control va lves assume the mid-position by
means of spring force.
– If both solenoid coils on 5/3-directional c ontrol valves are energised simultaneously,
the valve remains in the previous switching position.
5/3-directional control valves
(82/84)
(12/14)
53
1
4
2
1214
14 84 82 12
Ident. code: B (piston spool valve)
Function:
– 5/3-directional control valve
– Open in mid-position
(82/84)
(12/14)
53
1
42
1214
14 84 82 12
Ident. code: E (piston spool valve)
Function:
– 5/3-directional control valve
– Mid-position exhausted
(82/84)
(12/14)
53
1
42
1214
14 84 82 12
Ident. code: G (pist on spool valve)
Function:
– 5/3-directional control valve
– Mid position closed
Tab. B.2 5/3-directional c ontrol valves
