2Overview
18 Festo – P.BE-MPA-EN – 1309f – English
MPA-S valve terminal with AS interface
This variant of the MPA-S valve terminal is available in the following grades:
MPA-S valve terminal with AS interface
Number of v alve positions
MPA1 MPA2
With 4 inputs and 4 outputs of type VPMA-ASI-...-4E4A-Z
1)
4 2, 4
With 8 inputs and 8 outputs of type VPMA-ASI-...-8E8A-Z
2)
4, 8 2, 4, 6 … 8
1) A max. of 4 solenoid coils can be supplied.
2) A max. of 8 solenoid coils can be supplied.
Tab. 2.4 Number of valve positions of the MPA-S valve terminal with AS interface
The maximum number of valve positions which can be controlled is dependent on the
electronic module:
– V MPA1-MPM-EMM-8 and VMPA2-MPM-EMM-4 o ccupy 2 addresses per valve position
– VMPA1-MPM-EMM-4 and VMPA2-MPM-EMM-2 occupy 1 address per valve position

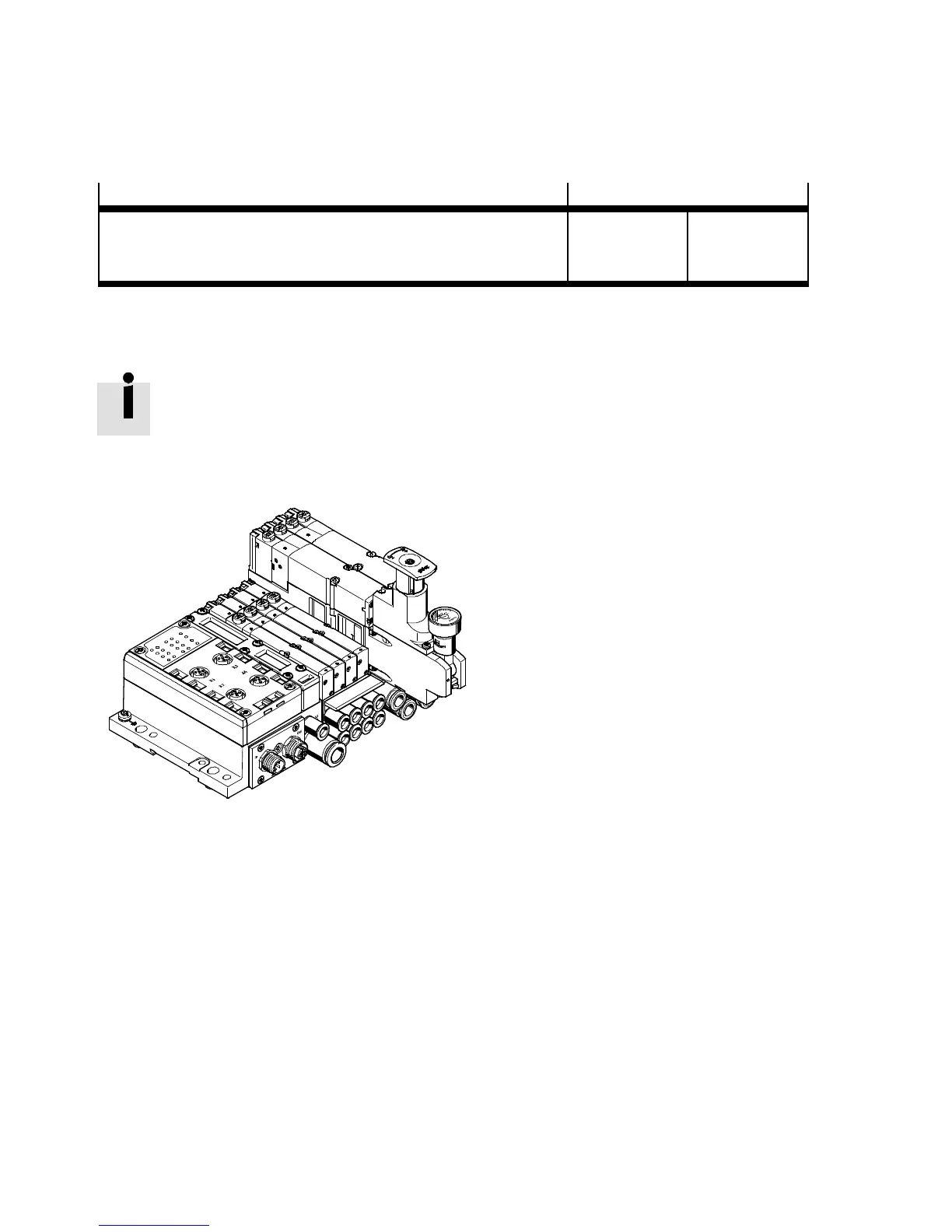

Fig. 2.4 MPA-S valve terminal with AS interface
