3 Mounting and installation
Festo – P.BE-MPA-E N – 1309f – English 65
Note
For the A and B pressure regulator plates of type VMPA…B8-R…C2-C-...(ident c ode: PH,
PG, PC, PB), the control pressure should not be below 2 bar.
• For control pressures below 2 bar, use the reversible A or B pressure regulators
(identifier in the type code: PN, PM, PL, PK, Tab. 2.11).
Setting the pressure regulator (MPA1) with the adjusting screw
Proceed as follows:
• Turn the adjusting screw 1 (position Fig. 3.7) to set the desired controlled variable ( “Flow
diagrams of the pressure regulator plates” in Appendix A).
1
1

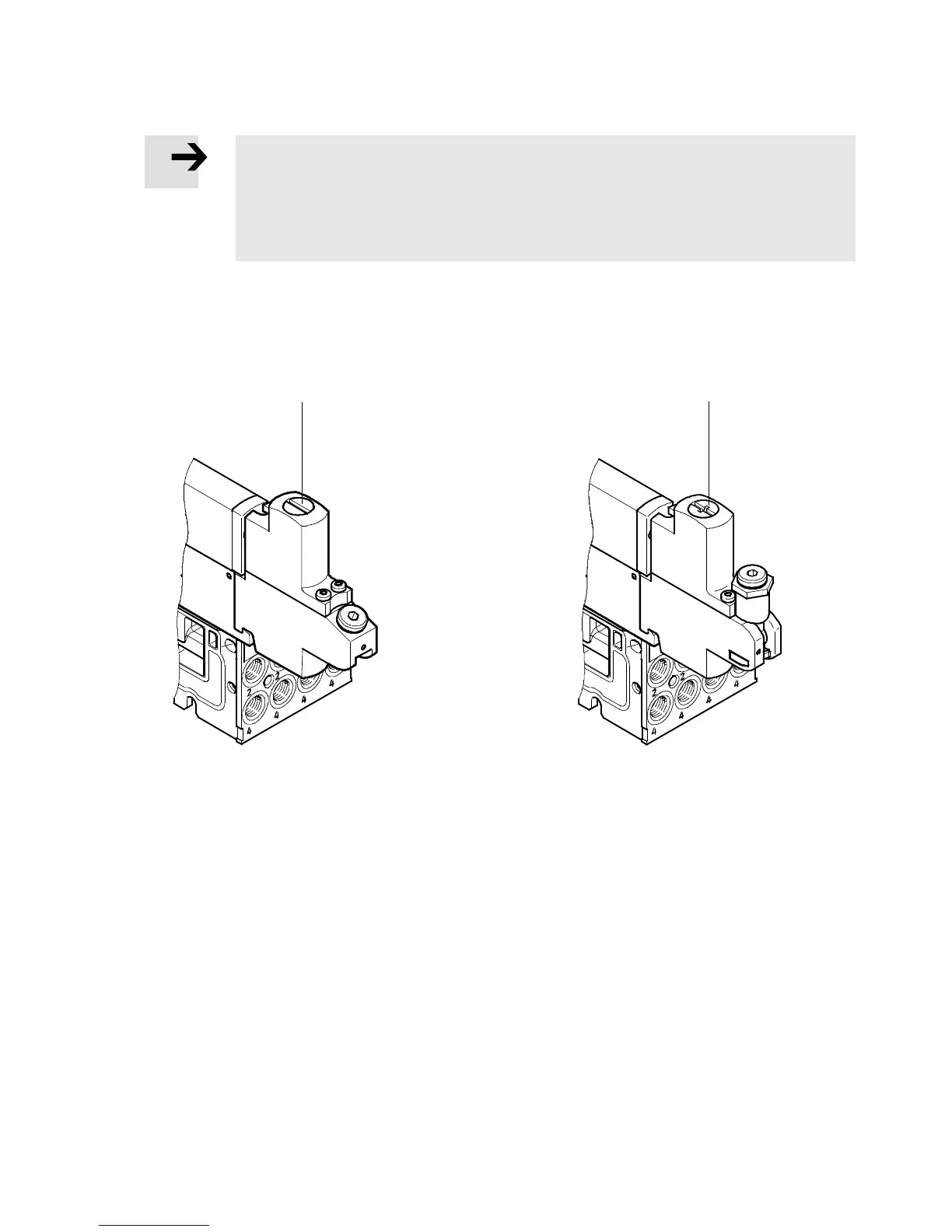

Fig. 3.7 S etting the pressure regulator plates (size MPA1) with the adjusting screw 1
