3 Mounting and installation
Festo – P.BE-MPA-E N – 1309f – English 67
Setting the pressure regulator (MPA2) with the adjusting sc rew in the adjusting knob
If the space a r ound the adjusting knob is not sufficient for sett ing the pressure regulating
valve (size MPA2), use the socket head screw in the adjusting knob.
Proceed as follows:
• Turn the adjusting screw 1 (position Fig. 3.9) to set the desired controlled variable ( “Flow
diagrams of the pressure regulator plates” in Appendix A).
1
1 Adjusting screw, internal hexagon socket
(spanner size 2.0)

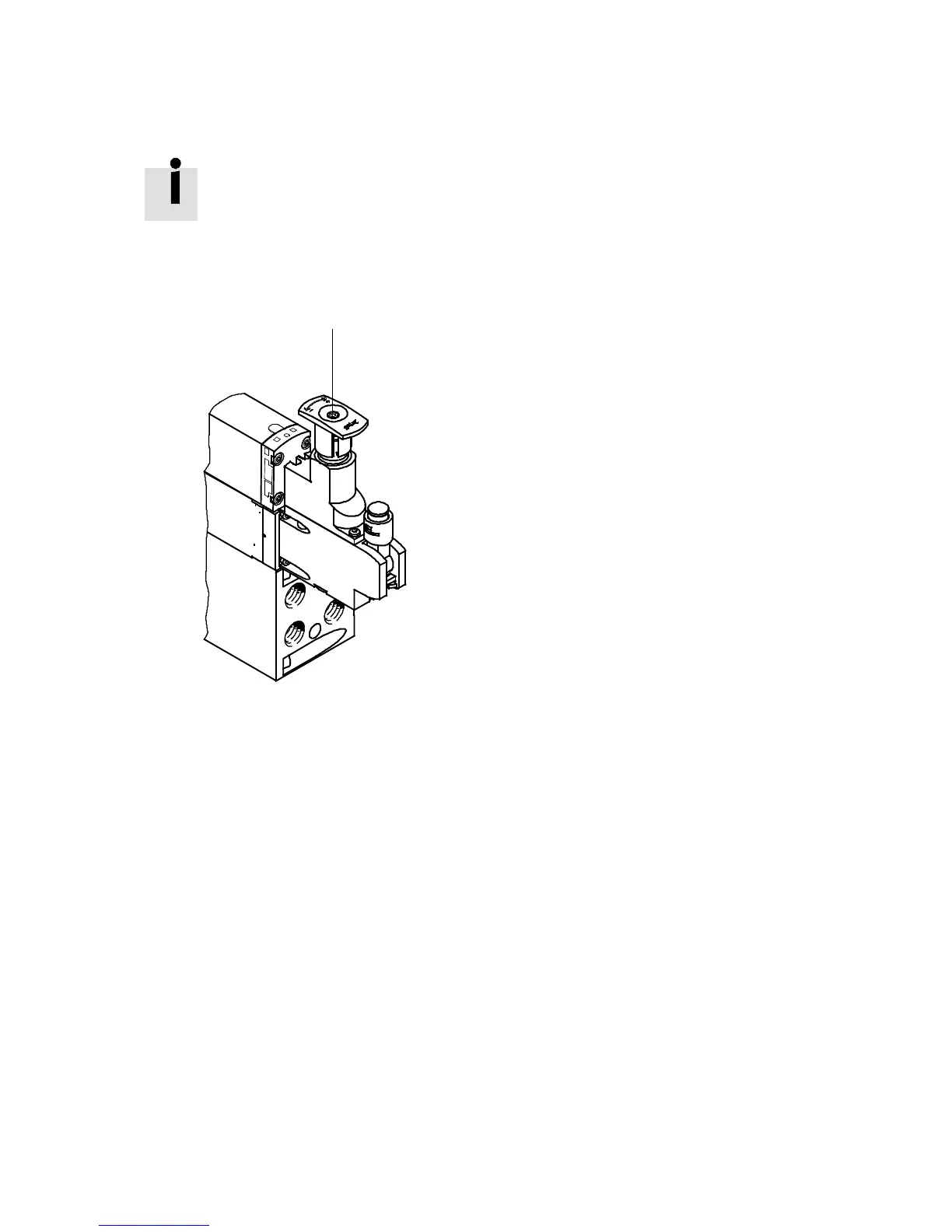

Fig. 3.9 S etting the pressure regulator plates (size MPA2) with the adjusting screw 1
