Festo MPA-S - Page 77

3 Mounting and installation
Festo – P.BE-MPA-E N – 1309f – English 77

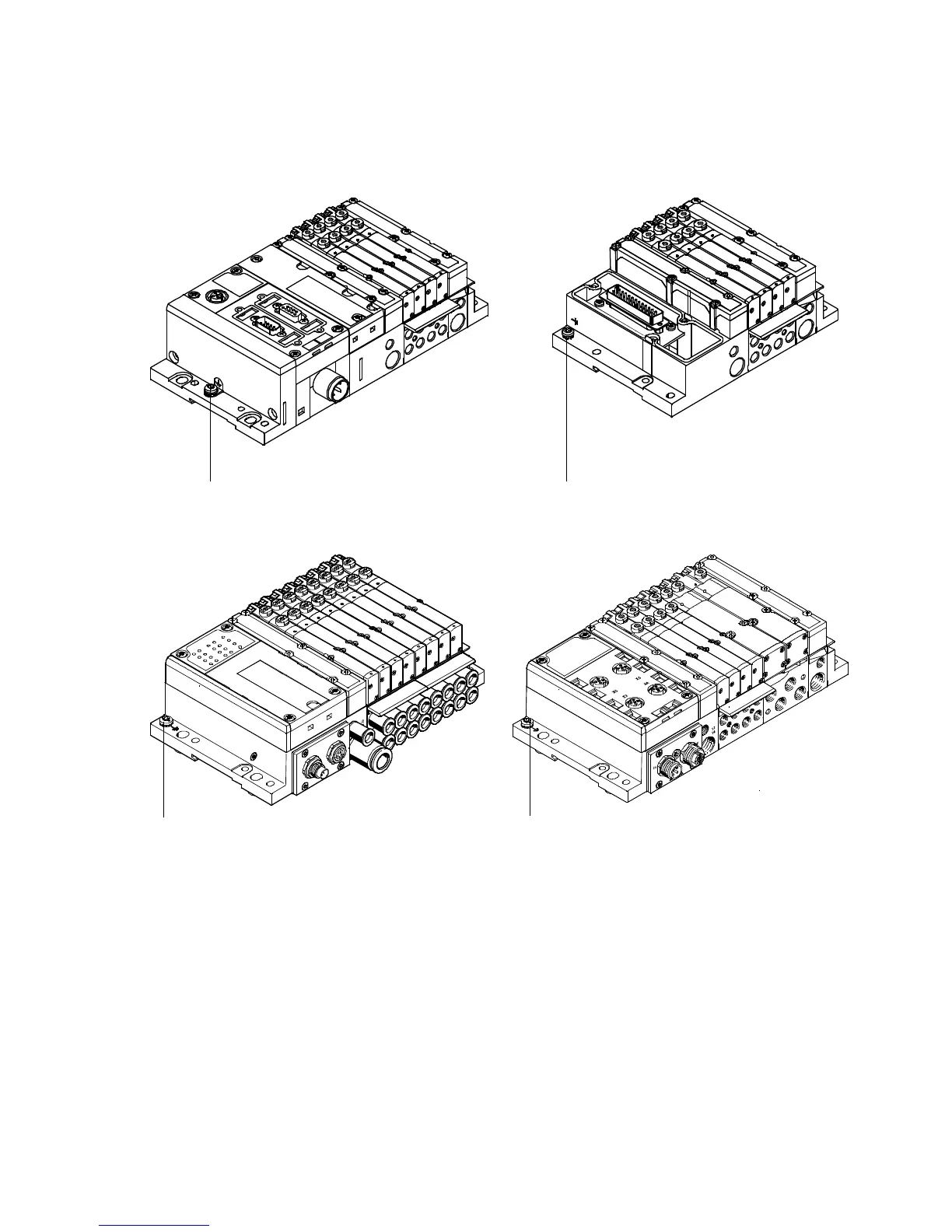

MPA-S valve terminal with CPX terminal MPA-S valve terminal with multi-pin plug
connection
1 1
MPA-S valve terminal with CPI interface MPA-S valve terminal with AS interface
1 1
1 Earth terminal
Fig. 3.15 Earthing the M PA -S valve terminal
