FiberHome AN6000 Series User Manual

AN6000 Series Optical Line Terminal Equipment Hardware Description
Structure

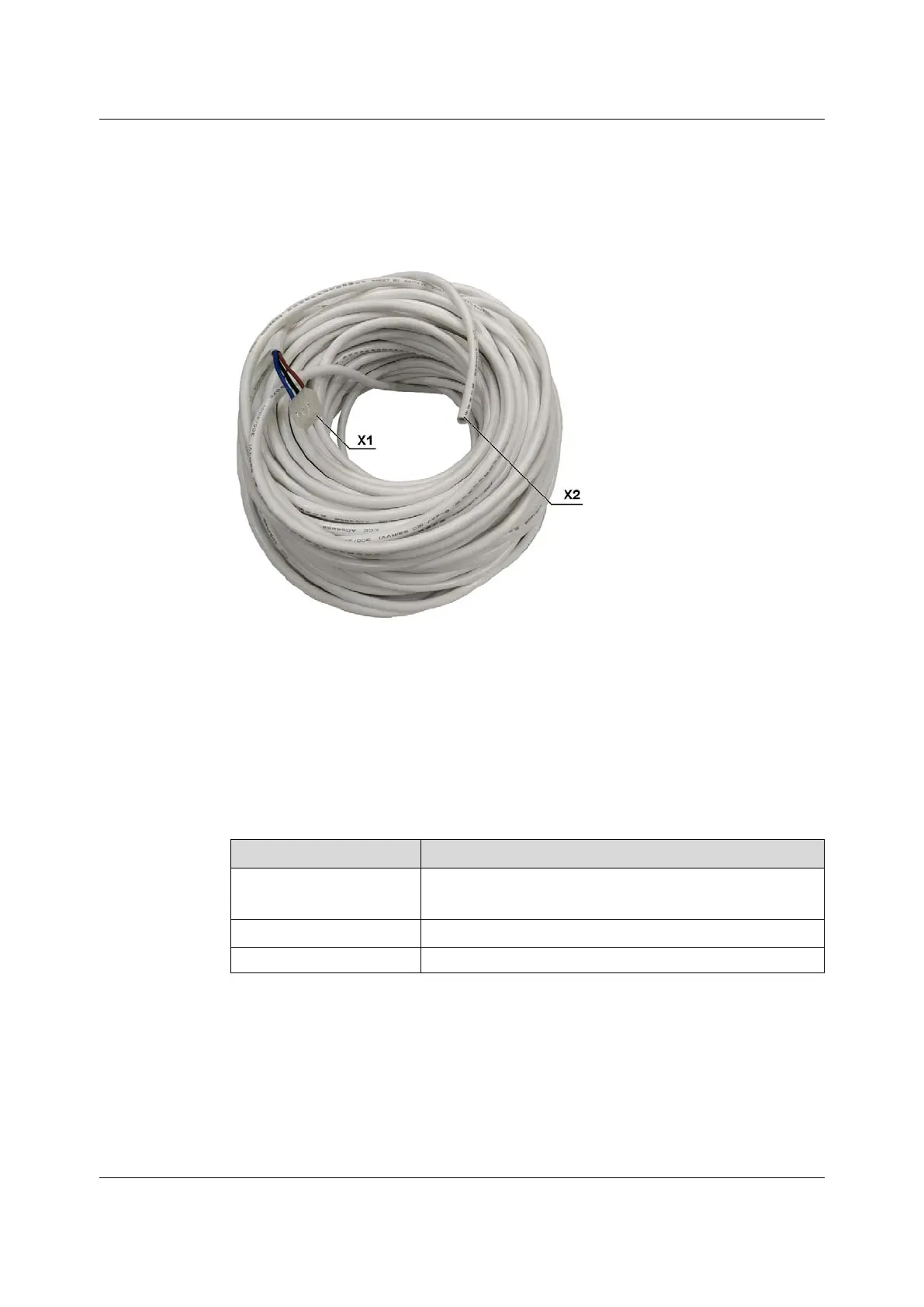

Figure 7-6 shows the appearance and structure of the alarm cable for the head of
row cabinet.
Figure 7-6 Alarm Cable for the Head of Row Cabinet
Technical Specifications
Table 7-6 describes technical specifications of the alarm cable for the head of row
cabinet.
Table 7-6 Technical Specifications of the Alarm Cable for the Head of Row Cabinet
Item
Specification
Cable type
Three-conductor power cable AVVR3×0.5 mm
2
(comprising
wires in blue, brown and black)
Connector X1
Three-conductor D-type connector
X2 Bare wire
7.4.2 Subrack Alarm Cable
The subrack alarm cable connects the alarm ports of the subrack and the PDP to
output subrack alarms to the PDP.
90
Version: B
