AN6000 Series Optical Line Terminal Equipment Hardware Description
Detailed Dimensions of the 21-inch Cabinet

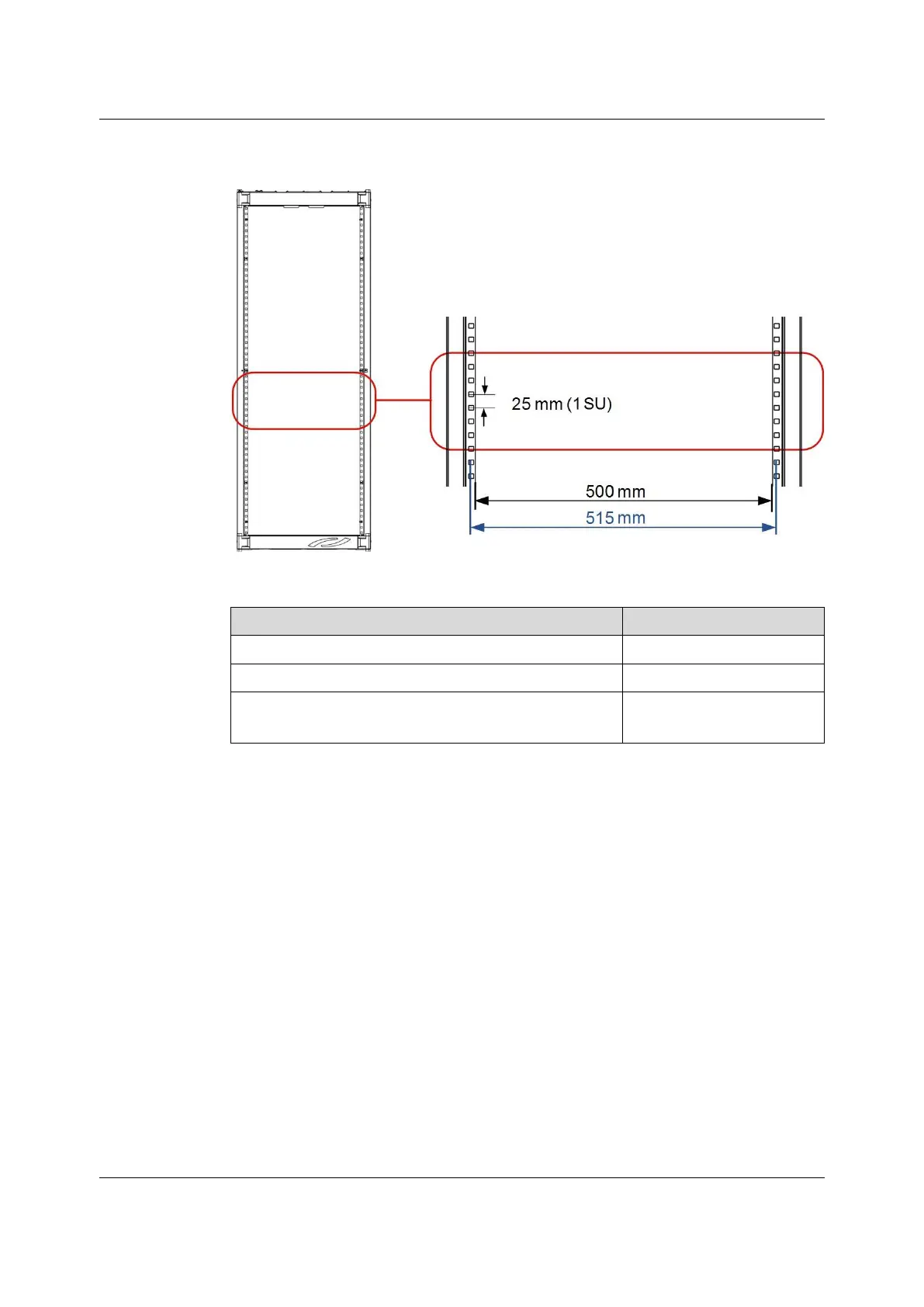

Table 8-4 Detailed Dimensions of the 21-inch Cabinet
Item Specification
Distance between holes on the mounting flange
1SU = 25 mm
Angle opening width
500 mm
Subrack mounting dimensions (central distance between
mounting holes)
515 mm
8.3 Equipment Layout for the AN6000-17
Guide
When multiple AN6000-17 subracks are to be installed in a cabinet, arrange them
from the top down.
