AN6000 Series Optical Line Terminal Equipment Hardware Description
Typical Configuration
Static Power
Consumption
Typical Power
Consumption
Maximum Power
Consumption
2 × HSCA + 17 × GNOA + 2 ×
PIBA + FAN + CIOA
1211 W 2093 W 2449 W
Note 1: The equipment can only be used together with a PDP with a rated current of 63 A. For
details of the matching PDPs, see PDPs.
Instruction:
For other card configurations, calculate the overall power consumption according to this
formula: overall power consumption = power consumption of 2 core switch cards +
power consumption of 17 service cards + power consumption of 2 power cards + power
consumption of the fan unit + power consumption of the common interface card. For
power consumption of each card, refer to Card Overview.
2.3 Slot Configuration

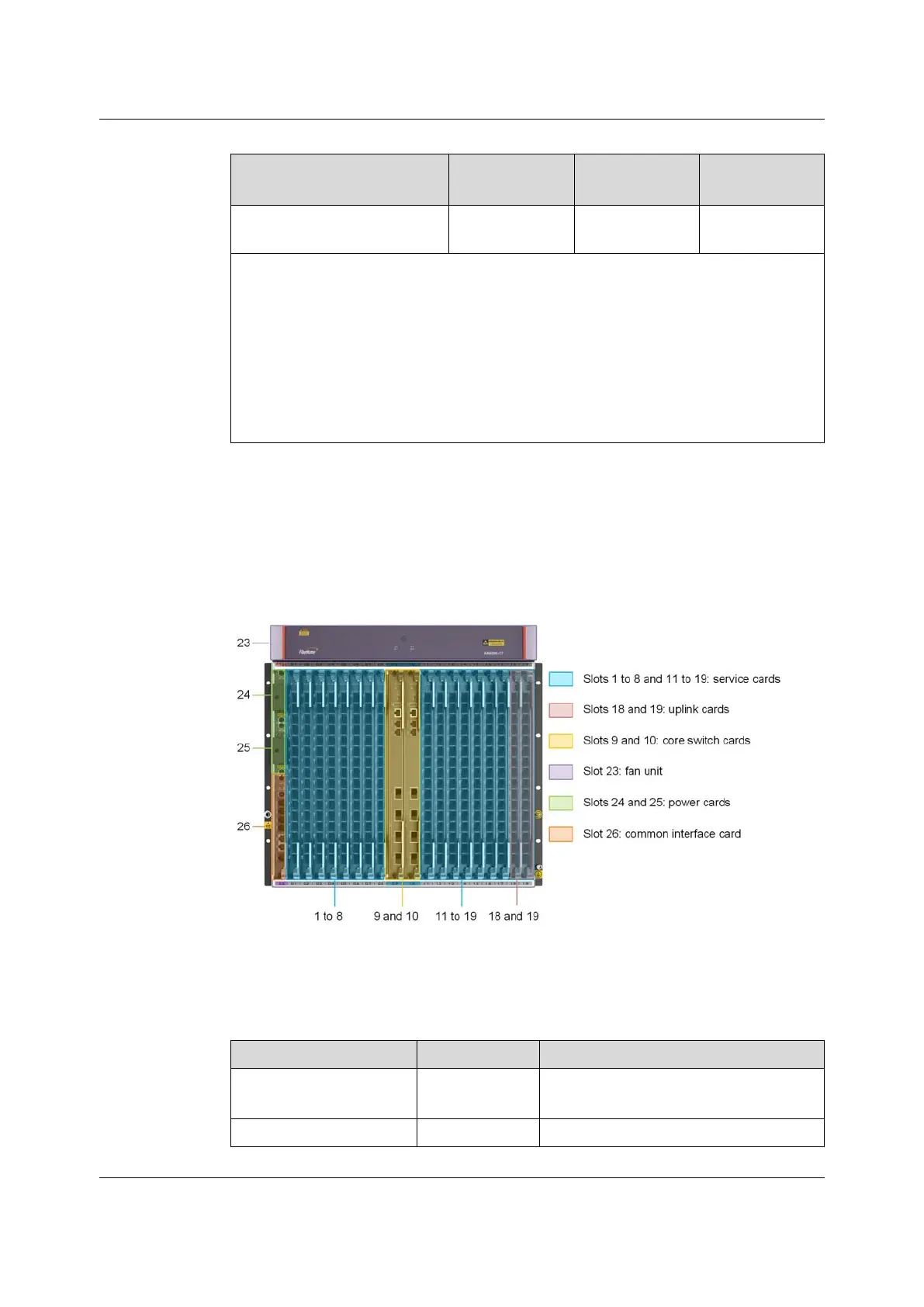

Slot Distribution
The AN6000-17 subrack provides 22 vertical slots and one horizontal slot.
Card Supported
The slots can be classified as follows according to the cards they house:
Type
Slot
Card Supported
Service card slot 1-8 and 11-19
GPOA, EX8A, EXOA, GX8A, GM8A, GM8B,
GMOA, GNOA, GFOA, PXNA
Note 1
Uplink card slot
18, 19 HU8A, KU1B
6
Version: B
