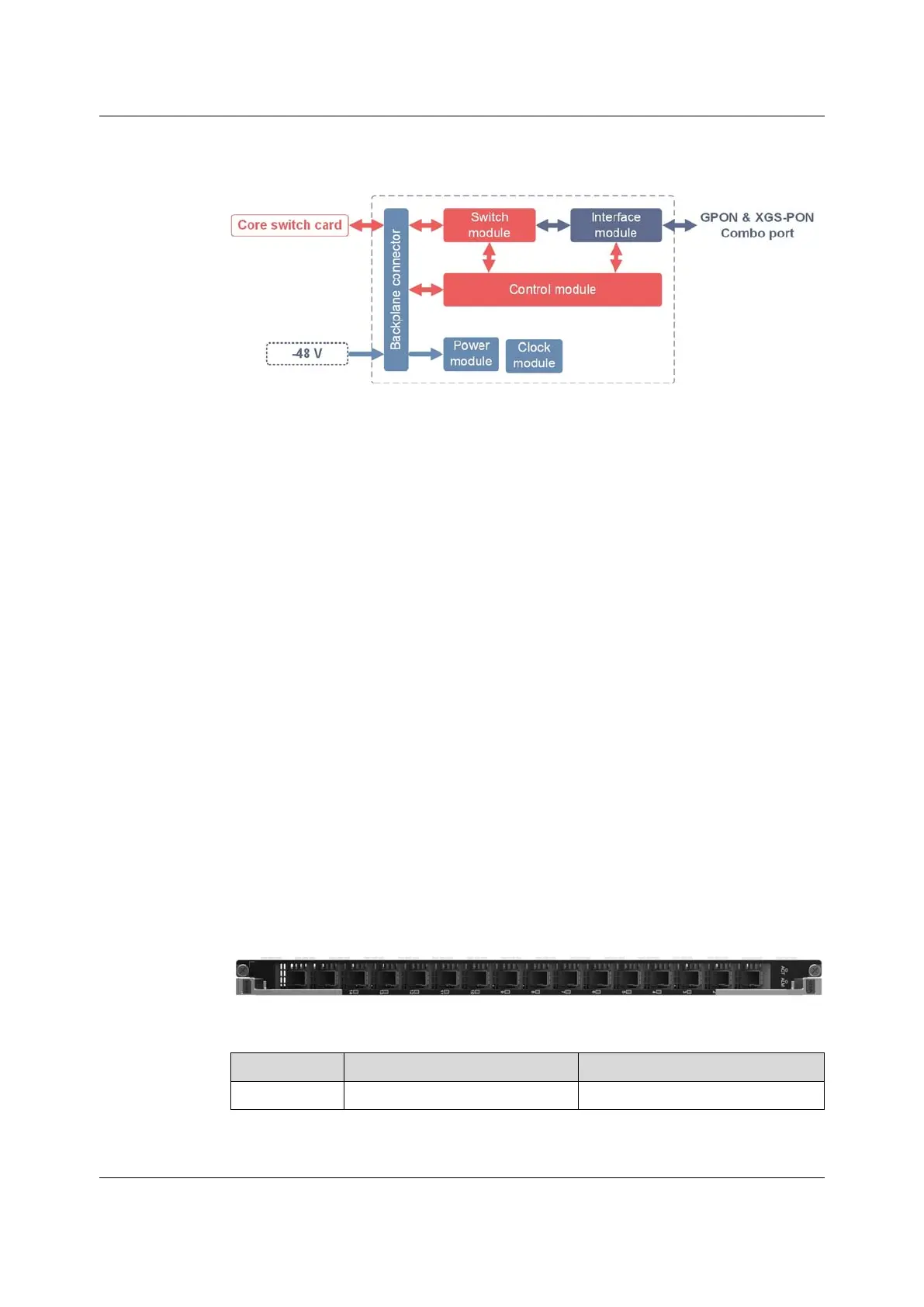

Figure 5-13 Working Principle of the GNOA Card
u The interface module provides GPON & XGS-PON Combo ports, and enables
conversion between GPON / XGS-PON packets and Ethernet packets.
u The switch module aggregates signals from 16 ports.
u The control module loads the card software, controls the card operation, and
manages the card.
u The power module supplies power to each functional module of the card.
u The clock module provides working clock signals for each functional module of
the card.
5.9.6 GFOA
Basic Information
Refer to Card Overview for the number, power consumptions, maximum frame
length and weight of the card.
Panel Description
Table 5-30 Interfaces
Identifier
Meaning Description
1 to 16
Agile-PON ports
Connect to ONUs via an ODN.
Version: B
