7 Wires and Cables
Table 7-3 Technical Specifications of the Subrack Protection Earth Ground Cable
Item
Specification
Cable model
Cable RV1 × 4 mm
2
(yellow- / green)
Terminal X1 / X2
M6 ring terminal
Cross-sectional area of the conductor 4 mm
2
7.3.2 Cabinet Protection Earth Ground Cable
The cabinet protection earth ground cable is used for connecting the PDP to the PE
of the head of row cabinet. The protection earth ground cable delivered together
with the PDP is used for connecting the PDP to the earth ground point on the top of
the cabinet, so as to protect the cabinet and the PDP.
Material Number
3696100
Structure

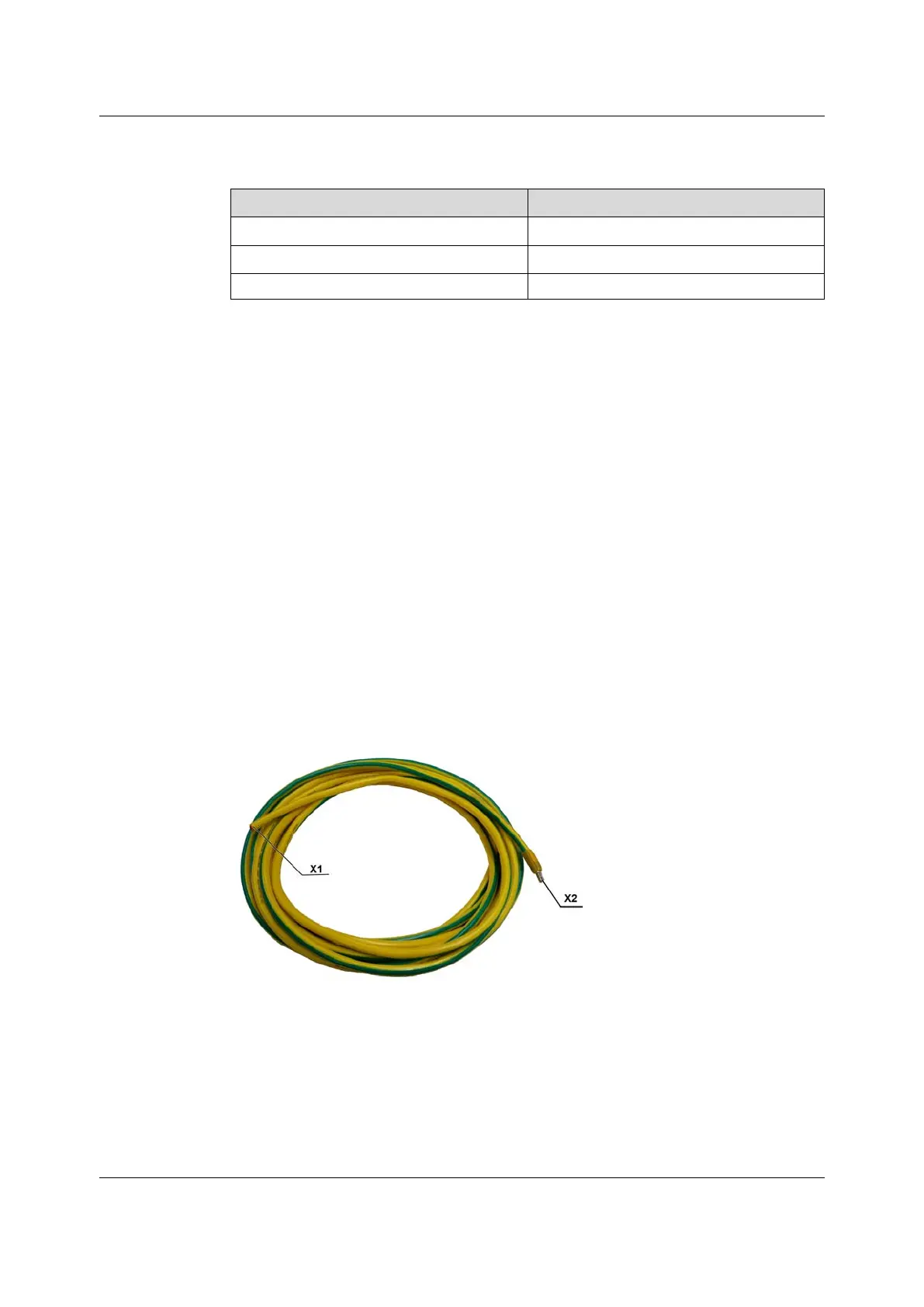

Figure 7-4 shows the appearance and structure of the cabinet protection earth
ground cable.
Figure 7-4 Cabinet Protection Earth Ground Cable
Technical Specifications
Table 7-4 describes technical specifications of the cabinet protection earth ground
cable.
