FiberHome AN6000 Series User Manual

AN6000 Series Optical Line Terminal Equipment Hardware Description
Structure

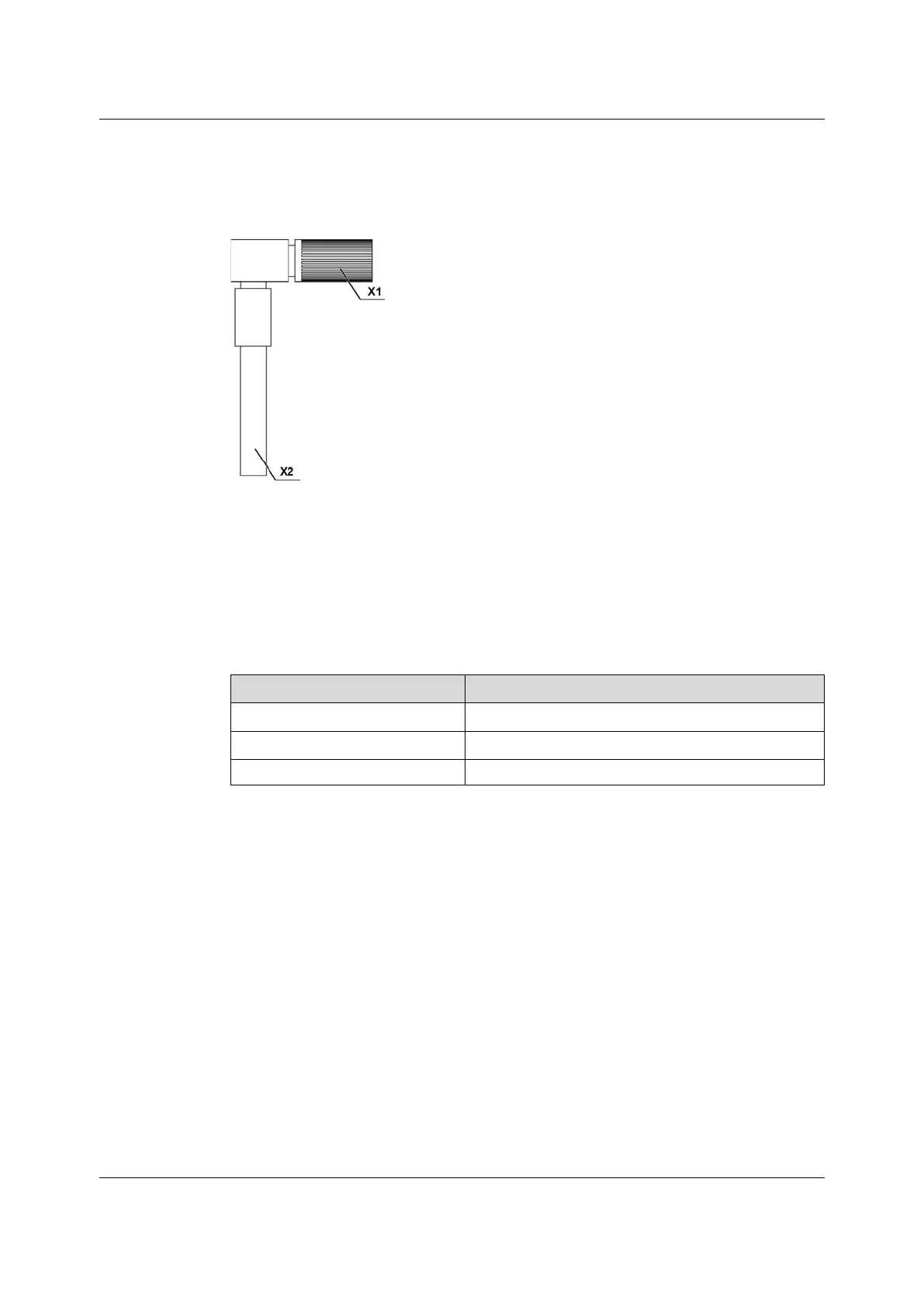

Figure 7-11 shows the appearance and structure of the clock cable.
Figure 7-11 Clock Cable
Technical Specifications
Table 7-14 describes the technical specifications of the coaxial clock cable.
Table 7-14 Technical Specifications of the Clock Cable
Item
Specification
Cable model
Single-core coaxial cable SYV75-2-2
Connector X1
L-shaped coaxial plug
X2 Bare wire
7.9 Serial Port Line
Mainly used for commissioning or local maintenance, the serial port line connects
the CONSOLE interface of the equipment to the serial port of a network
management computer.
Material Number
3695341
Structure
Figure 7-12 shows the appearance and structure of the serial port line.
96
Version: B
