7 Wires and Cables
7.6 Straight-Through Cable
The straight-through cable connects the equipment to a network management host
to transfer monitoring signals and enable inter-Ethernet communications and
equipment software debugging.
Material Number
3695095
Structure

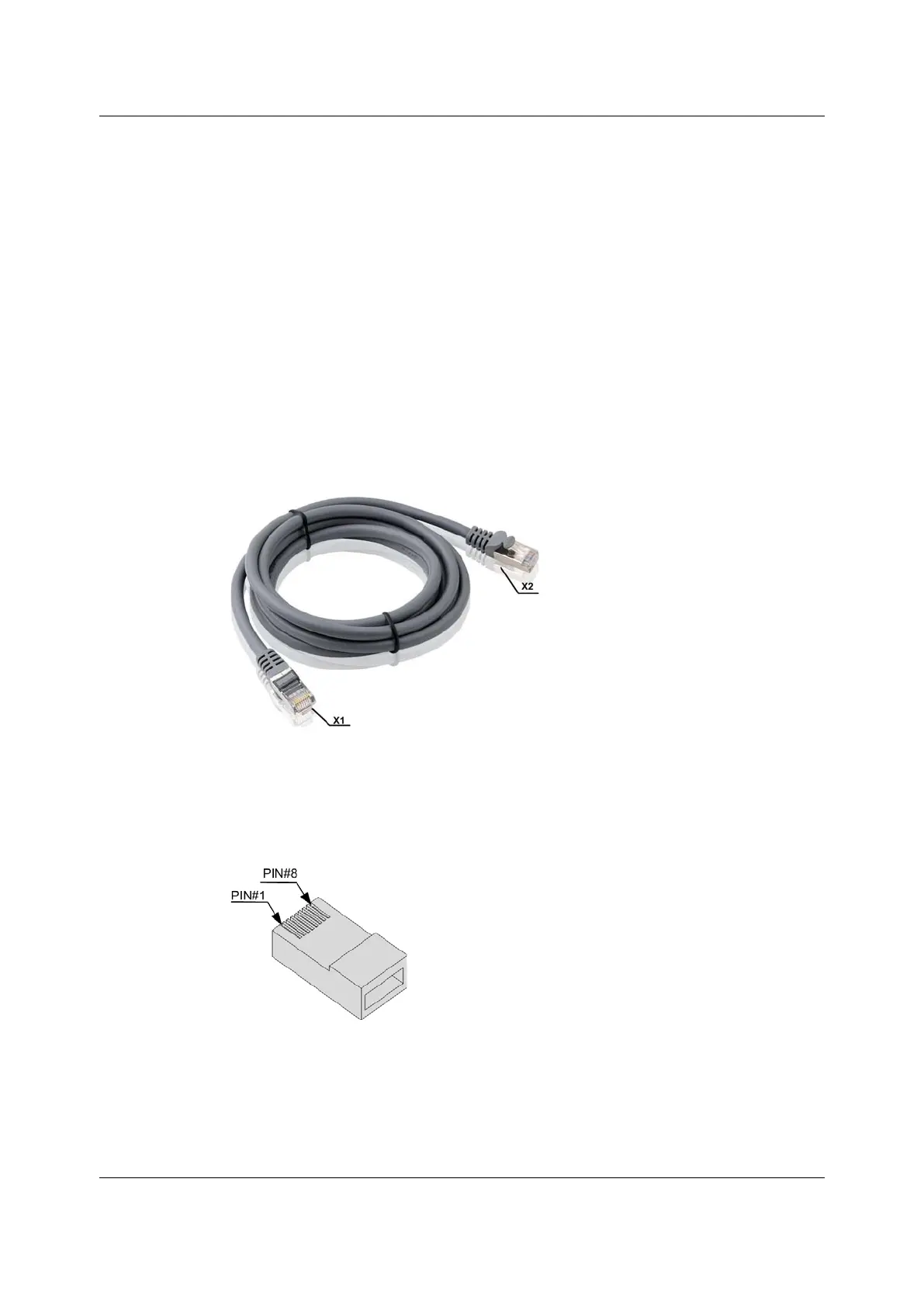

Figure 7-8 shows the appearance and structure of the straight-through cable.
Figure 7-8 Straight-Through Network Cable
The straight-through cable has RJ-45 connectors on both ends, as shown in
Figure 7-9.
Figure 7-9 RJ-45 Connector
Table 7-11 describes the color-coding scheme of the straight-through cable.
Version: B
93
