FiberHome AN6000 Series User Manual

5 Cards
5.1 Card Structure
Card Structure

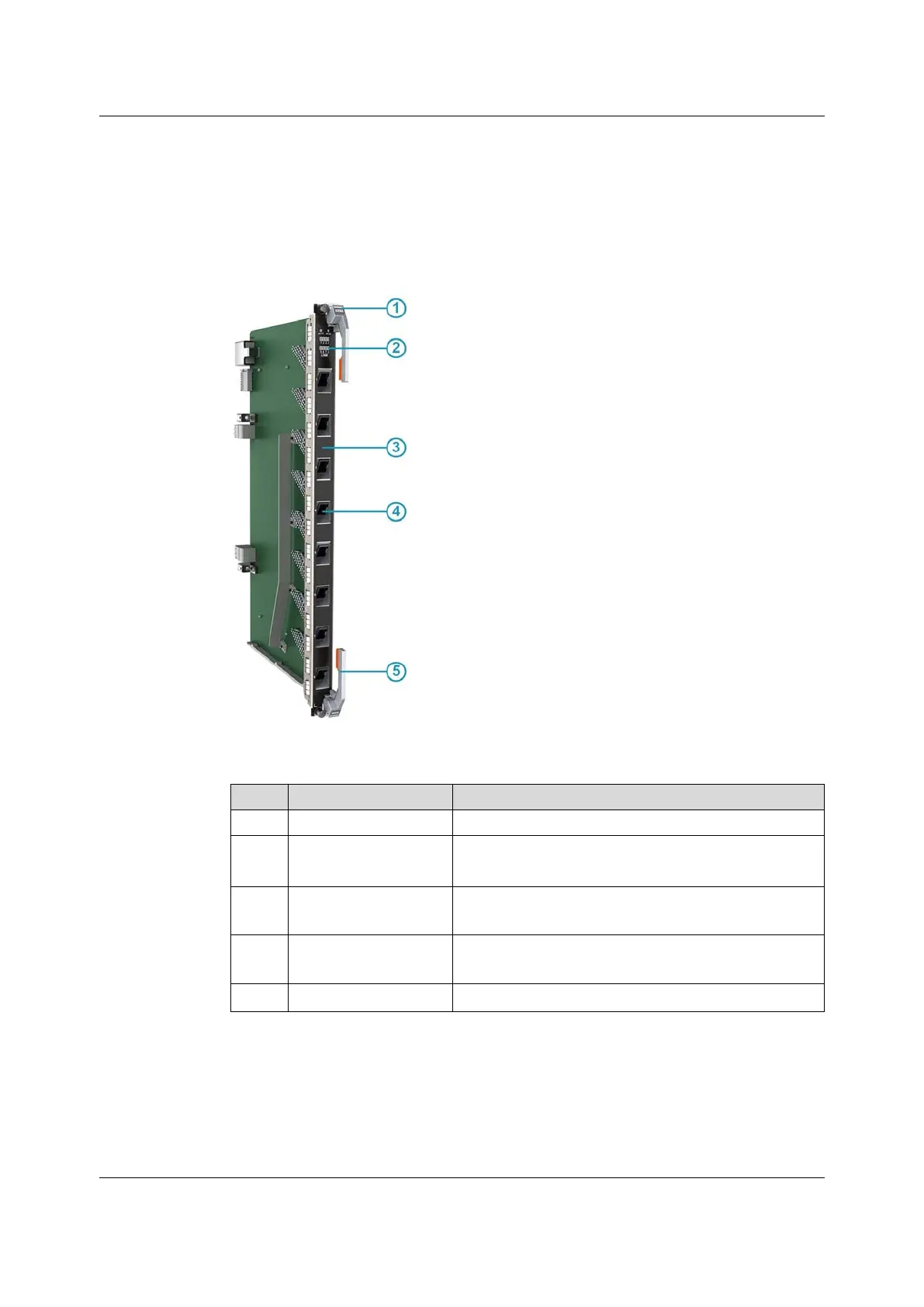

Figure 5-1 illustrates card structure, using the GX8A card as an example.
Figure 5-1 Card Structure
No. Name Function
①
Card name Identifies the card.
②
Indicator LED area
Contains various indicator LEDs, such as the working
status indicator and the port status indicator.
③
Card panel
Provides card-related identifiers; protects and secures the
card.
④
Interface area
Connects to different devices to implement the card
functions.
⑤
Latch
Facilitates plugging or unplugging a card.
Card Dimensions
Figure 5-2 shows how card dimensions are measured.
Version: B
25
