AN6000 Series Optical Line Terminal Equipment Hardware Description
Standard Compliance
Item Standard
Electromagnetic
compatibility (EMC)
Electromagnetic
interference (EMI)
Radiated emission (RE) Complies with EN55022 Class B.
Conducted emission (CE) Complies with EN55022 Class B.
Electrostatic discharge (ESD) Complies with IEC61000-4-2.
Electromagnetic
susceptibility (EMS)
Radiated susceptibility
(RS)
Complies with IEC61000-4-3.
Electrical fast transient
(EFT)
Complies with IEC61000-4-4.
Surge Complies with IEC61000-4-5.
Conducted susceptibility
(CS)
Complies with IEC61000-4-6.
Voltage dip (DIP) Complies with IEC61000-4-29.
Safety standard Complies with IEC60950.
9.4.3 Connectors on the Panel
This section introduces the panels and connectors of the PDP (3000068) with three
branch switches.
Front Panel

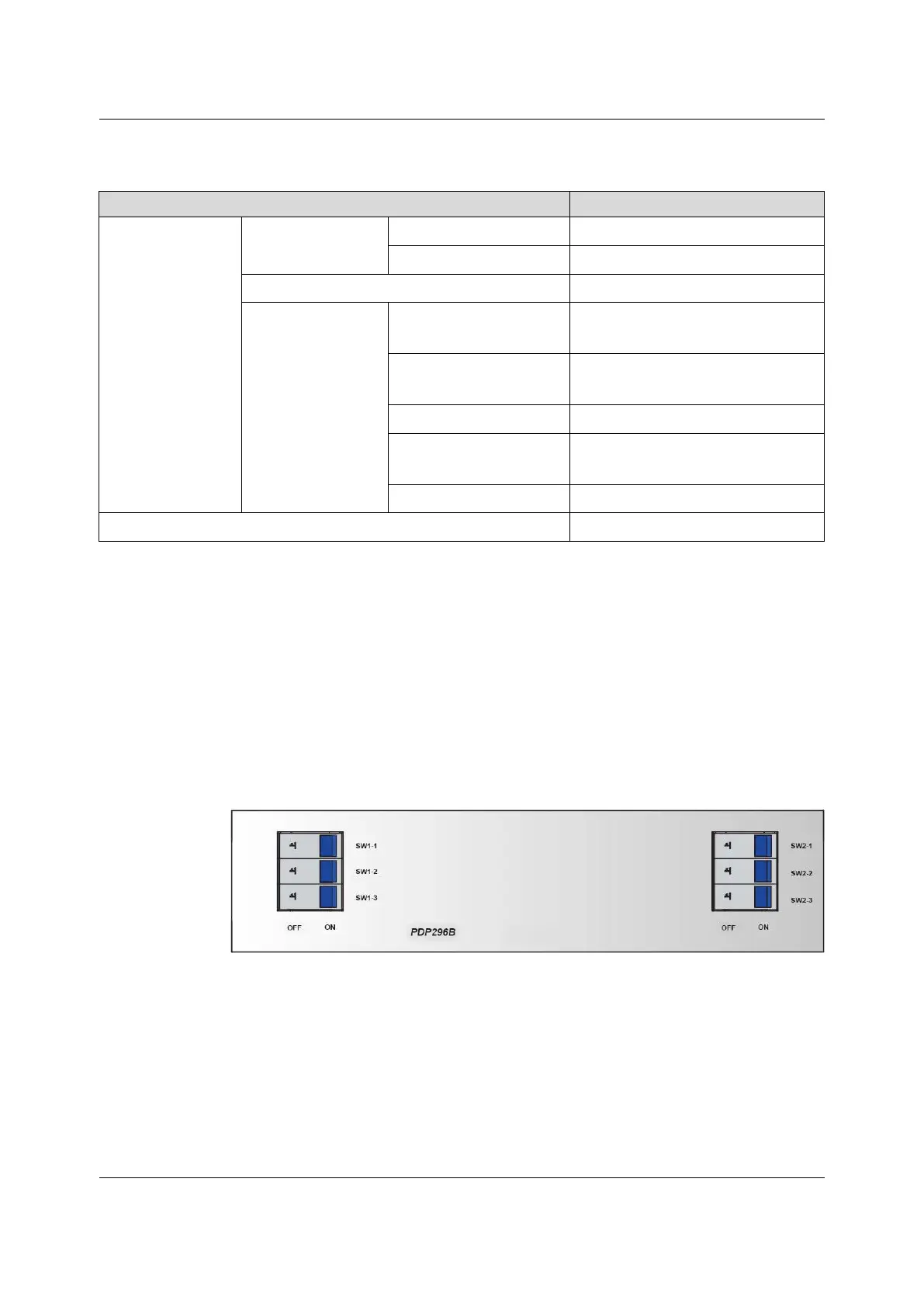

Figure 9-11 shows the front panel of the PDP (3000068).
Figure 9-11 Front Panel of the PDP (3000068)
Connector Panel
After removing the front panel of the PDP (3000068), you can see components such
as connectors and jumper pins on the panel of the PDP (3000068), as shown in
Figure 9-12.
