4 The AN6000-7 Subrack
Type
Slot
Card Supported
Service card slot 1-7
GPOA, EX8A, EXOA, GX8A, GM8A,
GM8B, GMOA, GNOA, GFOA, PXNA
Note 1
Uplink card slots
6, 7 HU8A, KU1B
Core switch card slot
8, 9
HSCA
Fan unit slot 23 FAN
Power card slot
24, 25
PIBA
Common interface card slot 26 CIOA
Note 1: The PXNA card can be applied to any service card slot and used as an uplink card.

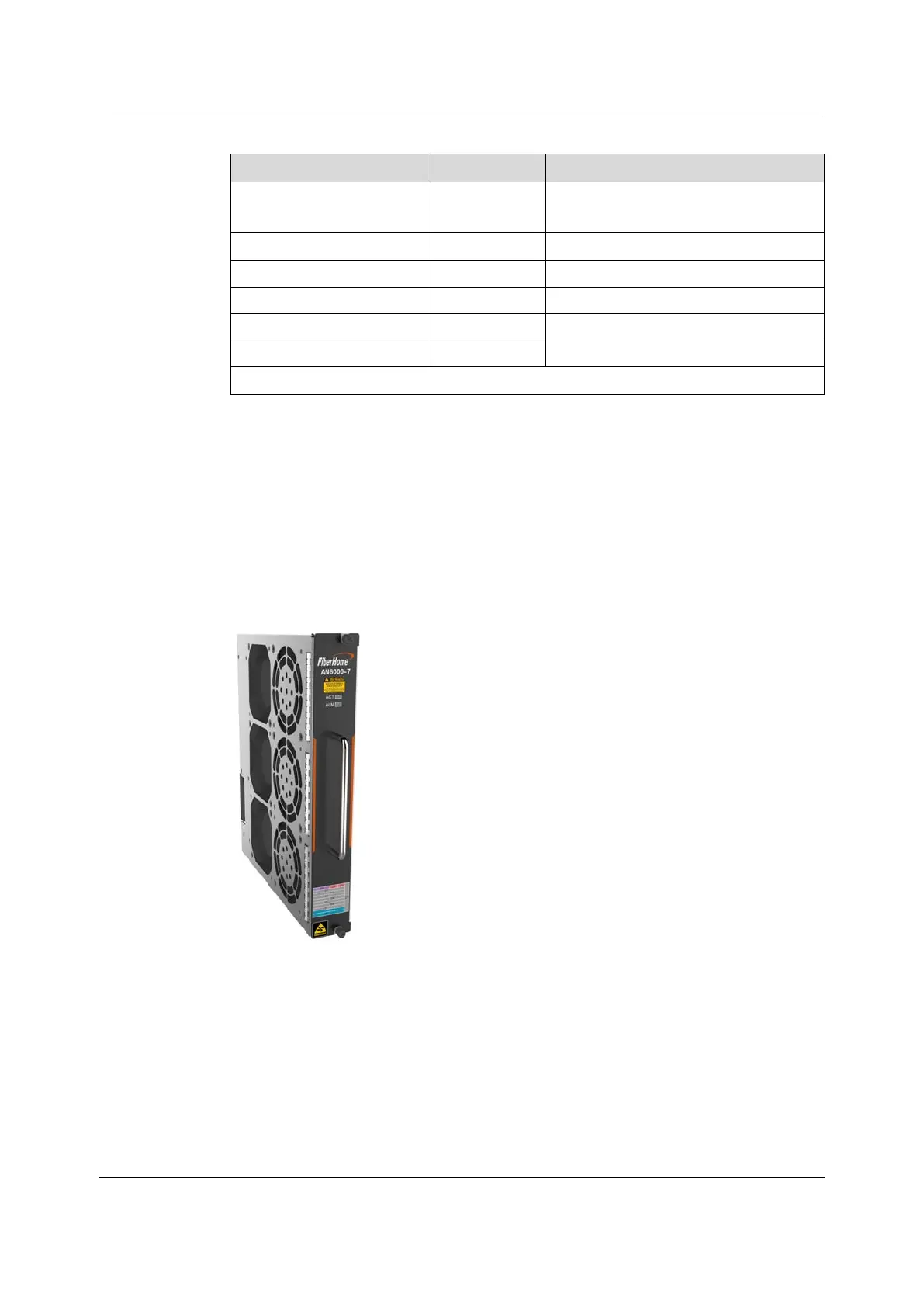

4.4 Fan Unit
Model
The model number of the fan unit for the AN6000-7 subrack is 405000405.
Appearance
Working Principle
u Located on the right of the subrack, the fan unit cools the subrack by drawing
air. A flow of cooling air is drawn into the subrack from the left side. After
passing through each working card in the subrack, the air is exhausted from the
right side of the subrack.
Version: B
21
