7 Wires and Cables
7.2.2 Subrack DC Power Cables for the PDP260B (3000063) /
PDP296B (3000068)
Subrack DC power cables are used to induct DC power to subracks.
Model
u 408000436 (blue)
u 408000437 (black)
Structure
Figure 7-2 shows the appearance and structure of the subrack DC power cables.

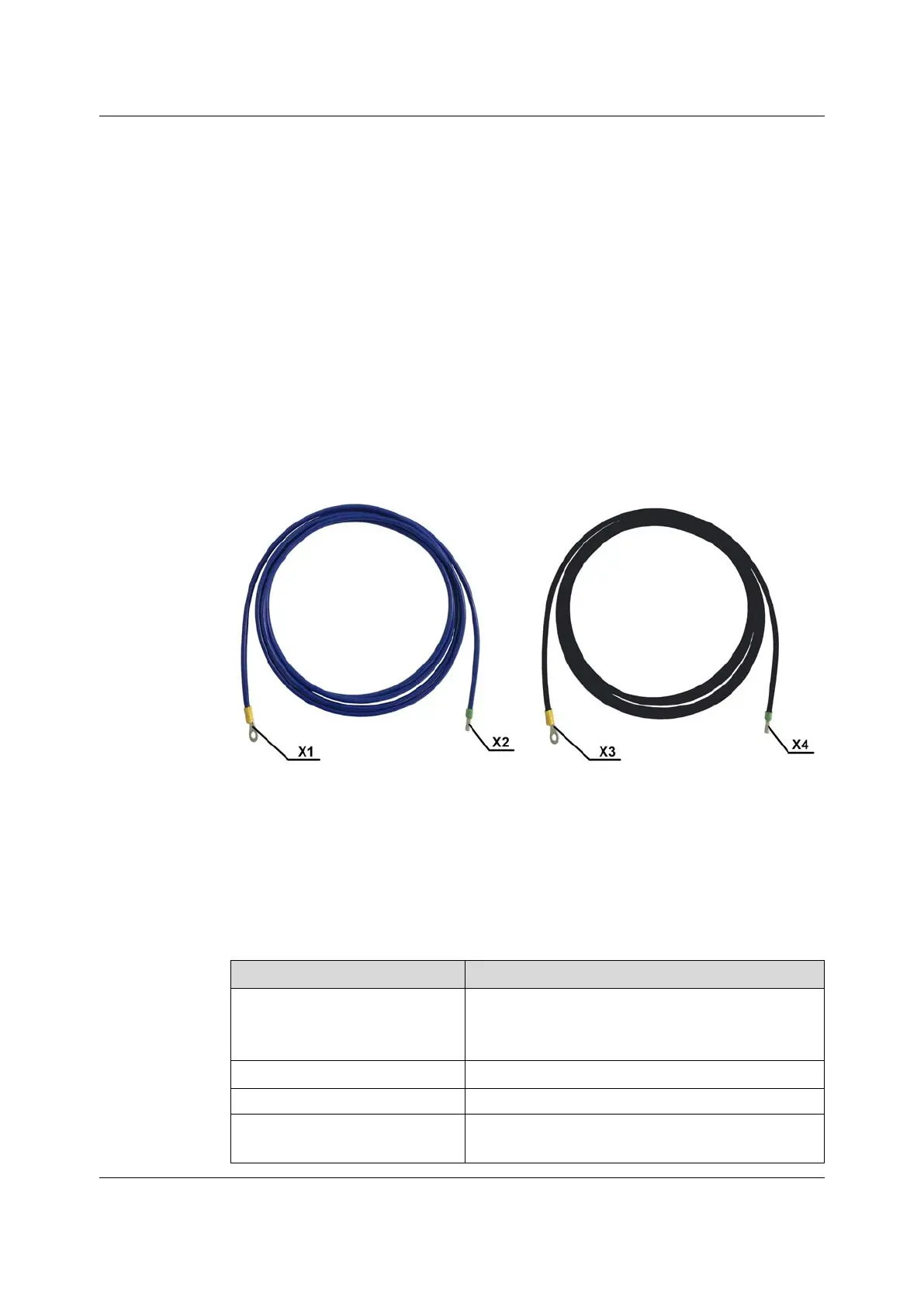

Figure 7-2 Subrack DC Power Cable
Technical Specifications
Table 7-2 describes technical specifications of subrack DC power cables.
Table 7-2 Technical Specifications of the Subrack DC Power Cables
Item
Specification
Cable type
UL1015 9 AWG single-core power cable (blue / black)
u Blue: -48 V
u Black: 0 V
Terminal X1 / X3
M6 ring terminal
Terminal X2 / X4 Cord end terminal
Cross-sectional area of the
conductor
6 mm
2
Version: B
85
