AN6000 Series Optical Line Terminal Equipment Hardware Description
6.1 Mappings Between Modules and Cards
Being hot-swappable, the optical / electrical modules are applied to an optical
communication system to enable optical / electrical conversion of signals.
The AN6000 Series support encapsulation formats including SFP+, XFP, SFP and
QSFP28 for pluggable modules.
Caution:
Avoid exposure of the modules to strong light, which may cause damage
to them. The Rx optical power of the equipment shall not exceed the
overload optical power of the optical modules.
Interface types of the modules include LC, SC and RJ-45 (electrical module).

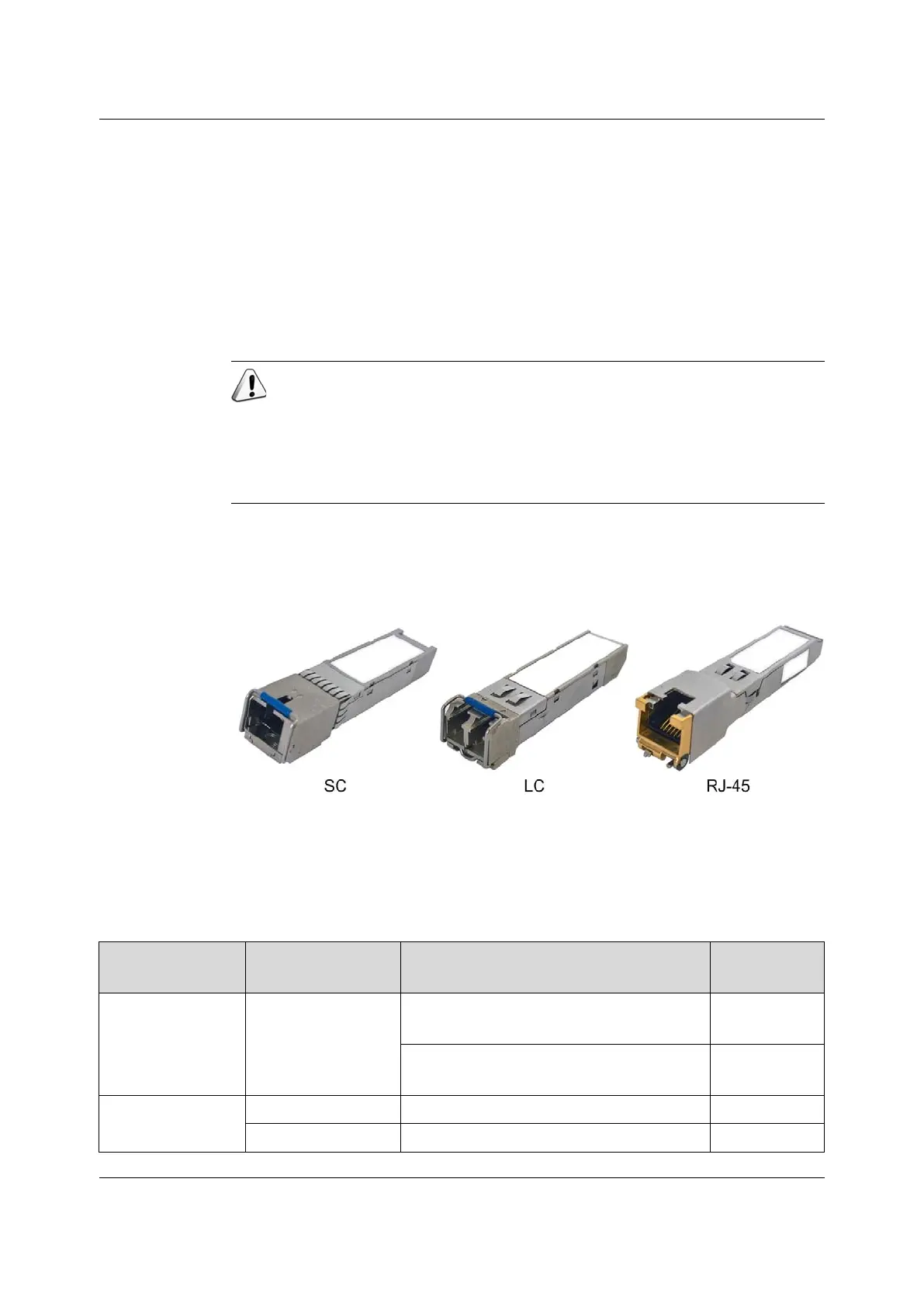

Figure 6-1 shows what these modules look like.
Figure 6-1 Module Appearance
Table 6-1 describes the mappings between modules and cards.
Table 6-1 Mappings Between Modules and Cards
Module Type Application Code
Module Code
Card
Supported
10G EPON optical
module
10G BASE-PR30
10/1.25G-20km-10G EPON OLT symmetric-XFP
(10G BASE-PR30)
EX8A
10/1.25G-20km-10G EPON OLT symmetric-SFP
+ (10G/1G BASE-PR30)
EXOA
GPON optical
module
CLASS C+
2.5/1.25G-20km-GPON OLT-SFP (CLASS C+)
GPOA, GFOA
CLASS C++
2.5/1.25G-20km-GPON OLT-SFP (CLASS C++)
GPOA
74
Version: B
