AN6000 Series Optical Line Terminal Equipment Hardware Description
7.2.1 Subrack DC Power Cables for the PDP850A (3000064)
Subrack DC power cables are used to induct DC power to subracks.
Model
u 408000363 (blue)
u 408000364 (black)
Structure

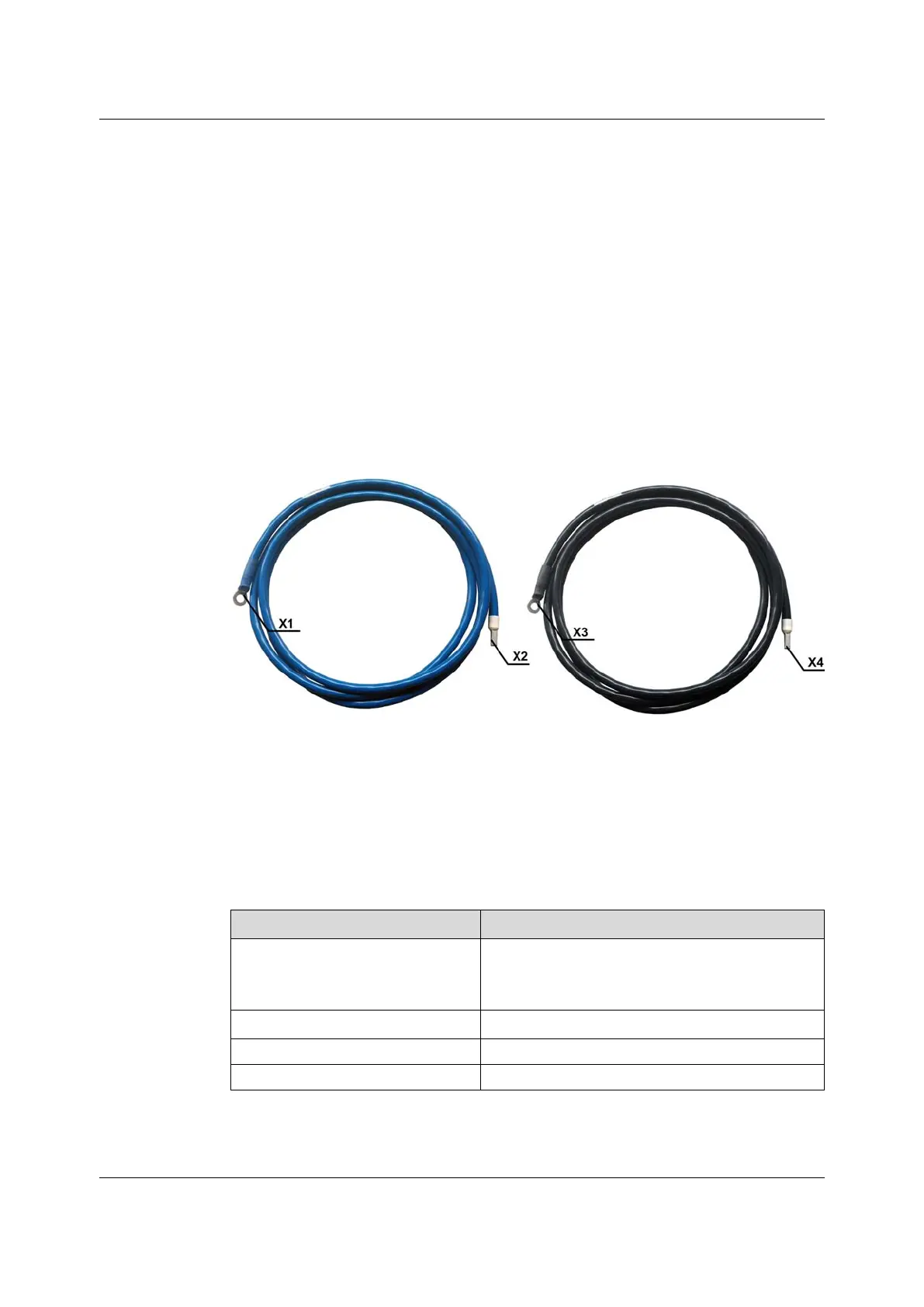

Figure 7-1 shows the appearance and structure of the subrack DC power cables.
Figure 7-1 Subrack DC Power Cable
Technical Specifications
Table 7-1 describes technical specifications of the subrack DC power cables.
Table 7-1 Technical Specifications of the Subrack DC Power Cables
Item
Specification
Cable type
UL1015 7 AWG single-core power cable (blue / black)
u Blue: -48 V
u Black: 0 V
Terminal X1 / X3
M6 ring terminal
Terminal X2 / X4 Cord end terminal
Cross-sectional area of the conductor 10 mm
2
84
Version: B
