AN6000 Series Optical Line Terminal Equipment Hardware Description
Connection
Table 9-8 Connection of the PDP (3000064) Earth Ground Cable
Cable Connector Connected to
1. Cord end terminal
PE connector
2. Uninsulated copper cord end
terminal
Ground terminal of the cabinet protection earth ground cable
9.4 PDP296B (3000068)
The PDP260B (3000068) is mounted in the upper part of a cabinet to supply power
for the subracks in the cabinet. It can provide up to six channels of 32 A power
supplies.
9.4.1 Appearance

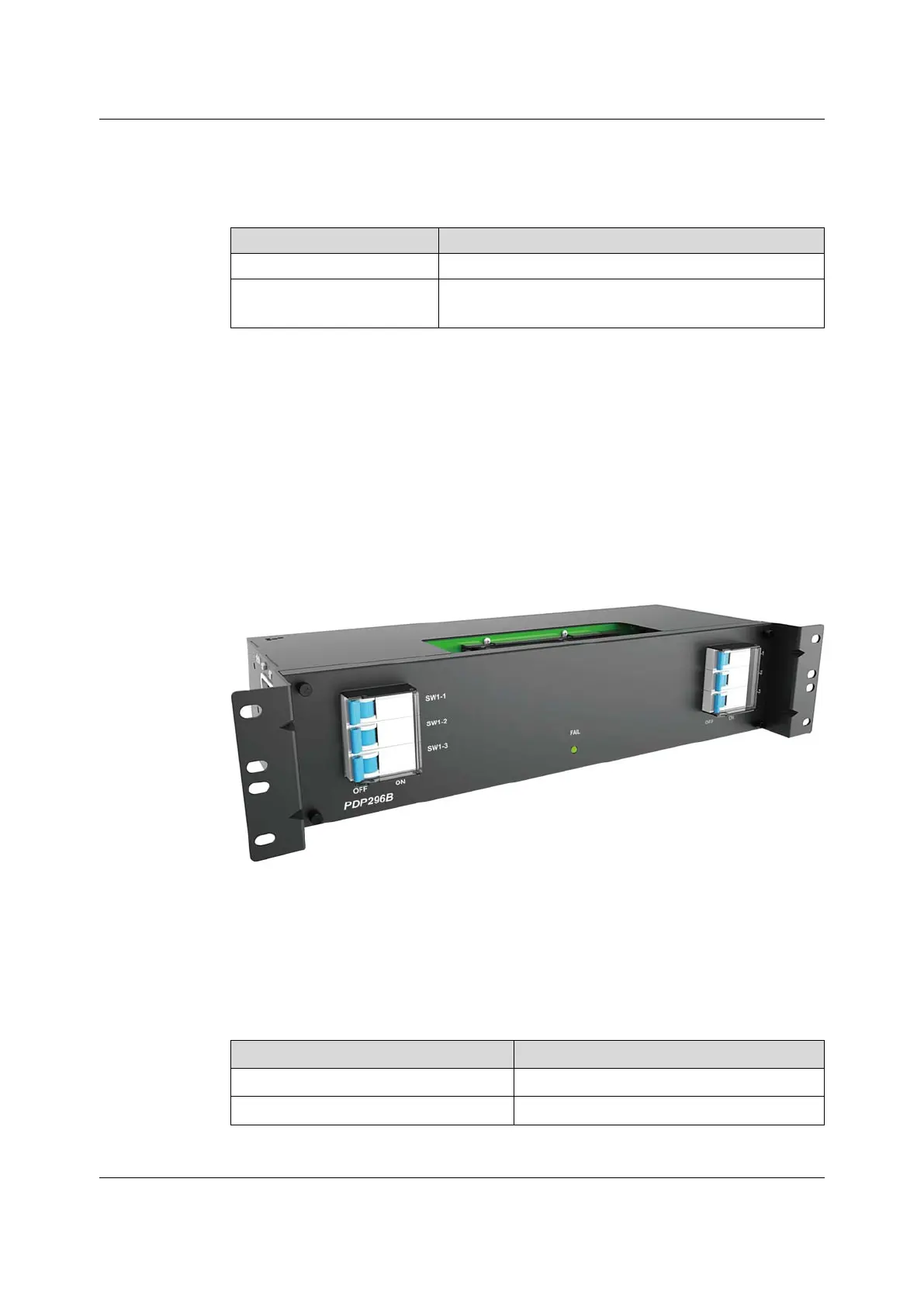

Figure 9-10 Appearance of the PDP (3000068) with Three Branch Switches
9.4.2 Specification
Functions and Specifications
Item
Specifications
Standard working voltage
-48 V
Voltage range
-38 V to -60 V
124
Version: B
