AN6000 Series Optical Line Terminal Equipment Hardware Description
Card Supported
The slots can be classified as follows according to the cards they house:
Type
Slot
Card Supported
Service card slot 1-7 and 10-17
GPOA, EX8A, EXOA, GX8A, GM8A,
GM8B, GMOA, GNOA, GFOA, PXNA
Note 1
Uplink card slot
16, 17 HU8A, KU1B
Core switch card slot
8, 9
HSCA
Fan unit slot 23 FAN
Power card slot
24, 25
PIBA
Common interface card slot 26 CIOA
Note 1: The PXNA card can be applied to any service card slot and used as an uplink card.

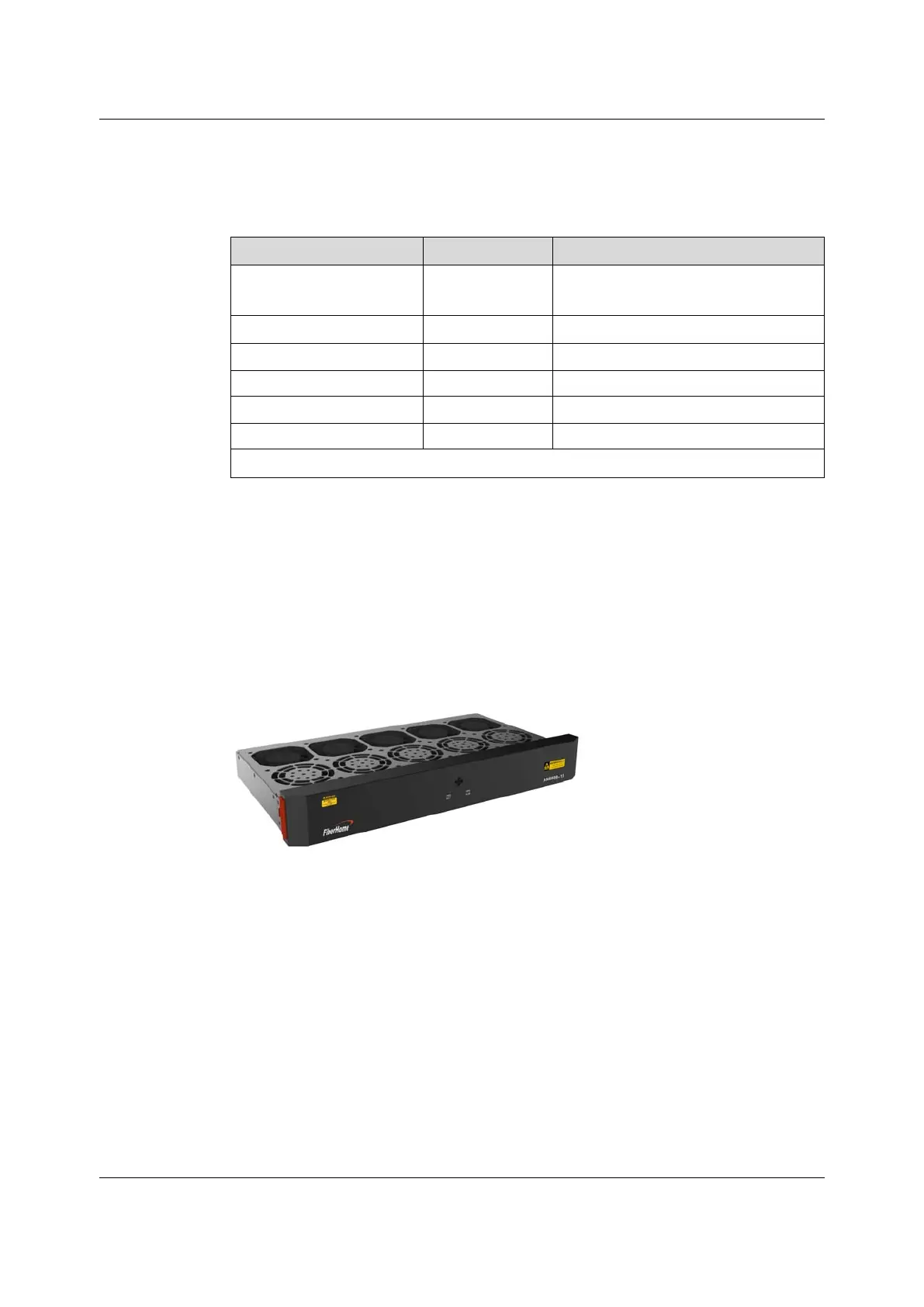

3.4 Fan Unit
Model
The model number of the fan unit for the AN6000-15 subrack is 405000408.
Appearance
Working Principle
u Located at the top of the subrack, the fan unit facilitates air cooling in the
subrack by drawing air. A flow of cooling air is drawn into the subrack from its
bottom. After passing through each working card in the subrack, the air is
exhausted from the top of the subrack.
14
Version: B
