AN6000 Series Optical Line Terminal Equipment Hardware Description
u Each uplink port can serve as a network management port for connection to a
network management computer.
Working Principle

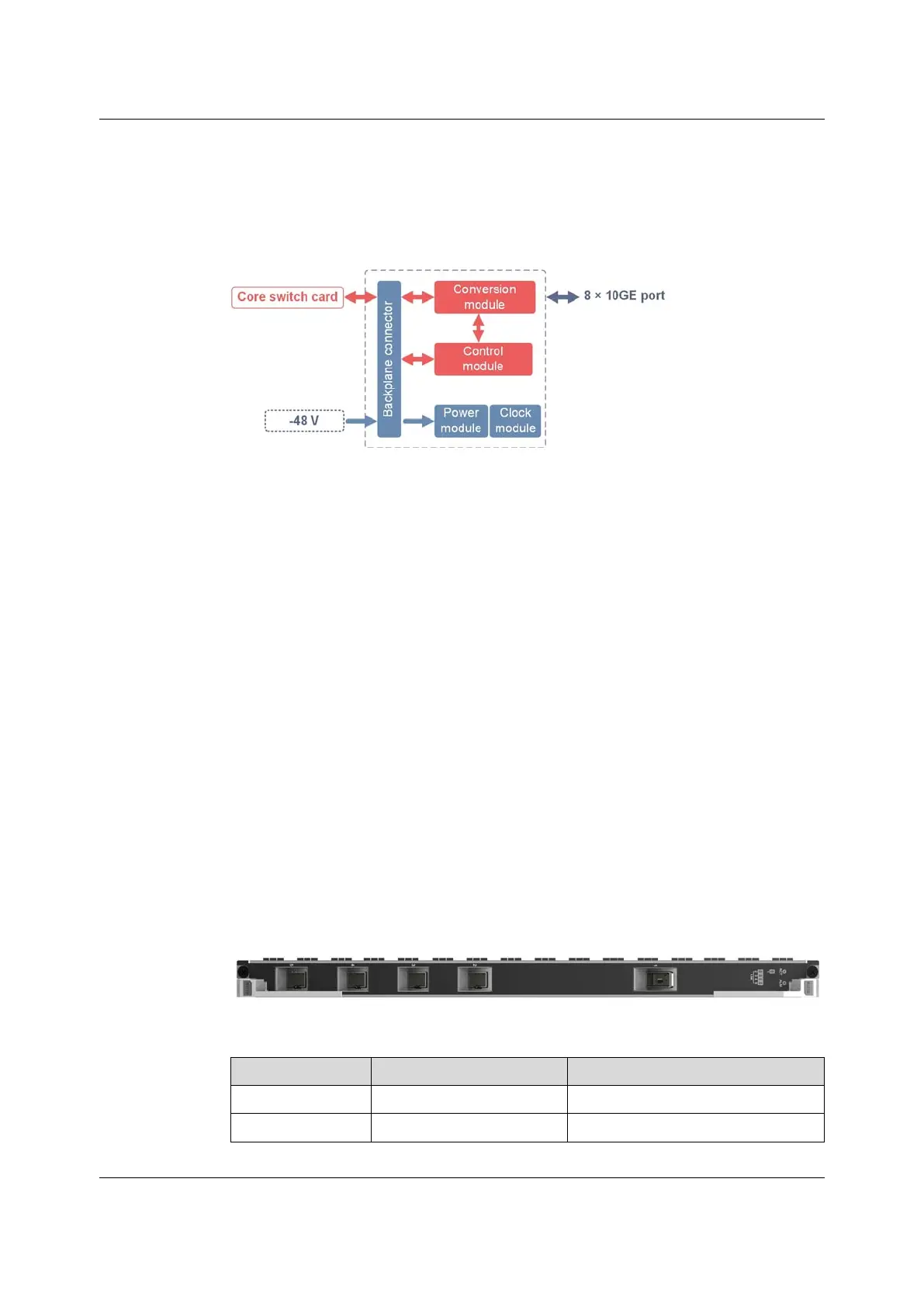

Figure 5-4 Working Principle of the HU8A Card
u The conversion module provides uplink ports and transmits data transparently.
u The control module loads the card software, controls the card operation, and
manages the card.
u The power module supplies power to each functional module of the card.
u The clock module provides working clock signals for each functional module of
the card.
5.4.2 KU1B
Basic Information
Refer to Card Overview for the number, power consumptions, maximum frame
length and weight of the card.
Panel Description
Table 5-6 Interfaces
Identifier
Meaning Description
1
100GE uplink optical port
Connects to an IP network.
2 to 5
10GE / GE uplink ports
Connect to an IP network.
36
Version: B
