AN6000 Series Optical Line Terminal Equipment Hardware Description
u Static power consumption: All the broadband ports are deactivated.
u Typical power consumption: 50% of the broadband ports are concurrently
activated.
u Maximum power consumption: 100% of the broadband ports are concurrently
activated.
Typical Configuration
Static Power
Consumption
Typical Power
Consumption
Maximum Power
Consumption
2 × HSCA + 7 × GNOA + 2 ×
PIBA + FAN + CIOA
614 W 996 W 1301 W
Note 1: The equipment can be used together with a PDP with a rated current of 63 A / 32 A. For
details of the matching PDPs, see PDPs.
Instruction:
For other card configurations, calculate the overall power consumption according to this
formula: overall power consumption = power consumption of 2 core switch cards +
power consumption of 7 service cards + power consumption of 2 power cards + power
consumption of the fan unit + power consumption of the common interface card. For
power consumption of each card, refer to Card Overview.
4.3 Slot Configuration

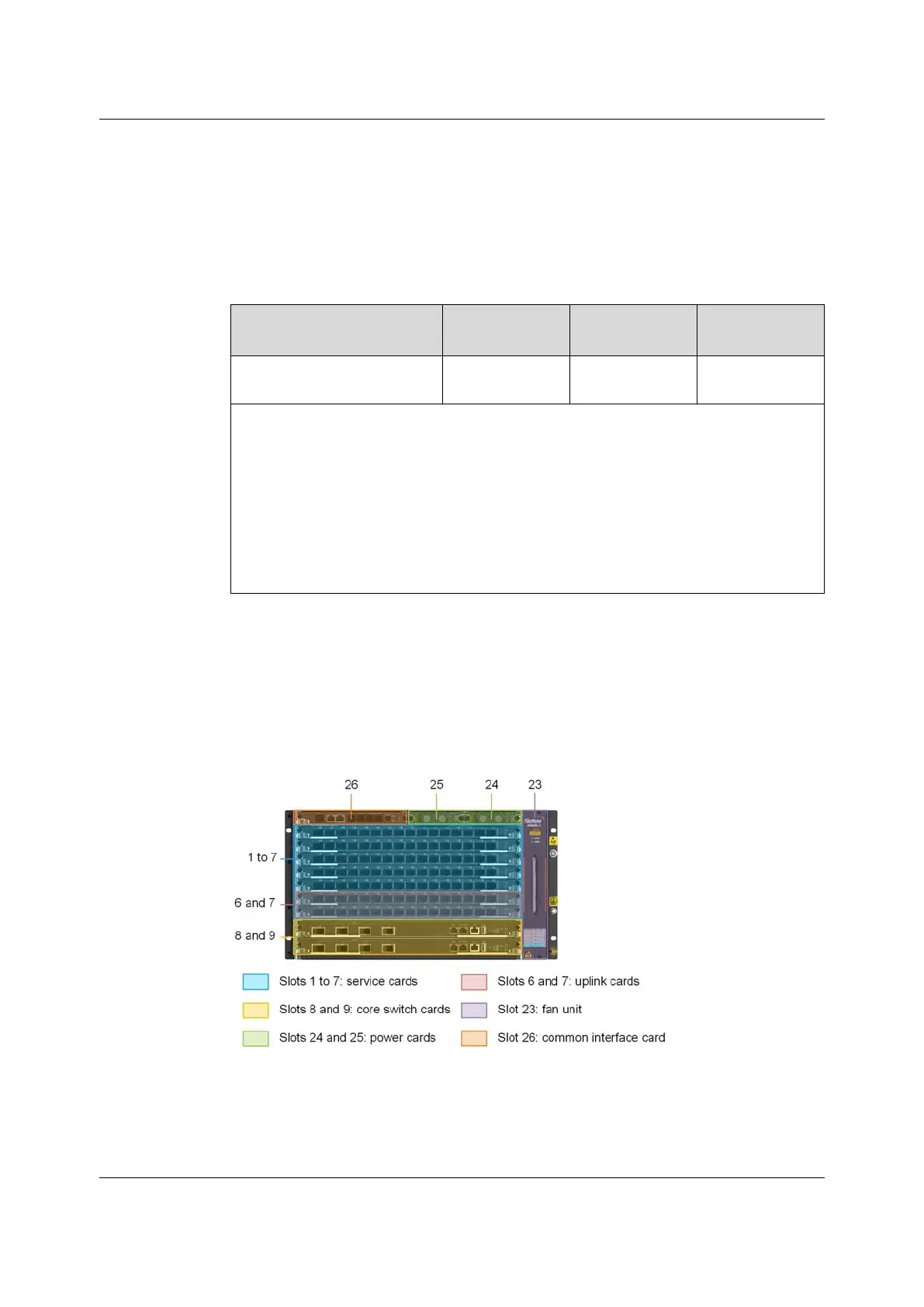

Slot Distribution
The AN6000-7 subrack provides 12 horizontal slots and one vertical slot.
Card Supported
The slots can be classified as follows according to the cards they house:
20
Version: B
