FiberHome AN6000 Series User Manual

9 PDPs
Item Standard
Electrical fast transient
(EFT)
Complies with IEC61000-4-4.
Surge Complies with IEC61000-4-5.
Conducted susceptibility
(CS)
Complies with IEC61000-4-6.
Voltage dip (DIP) Complies with IEC61000-4-29.
Safety standard Complies with IEC60950.
9.3.3 Panel Terminals
Front Panel

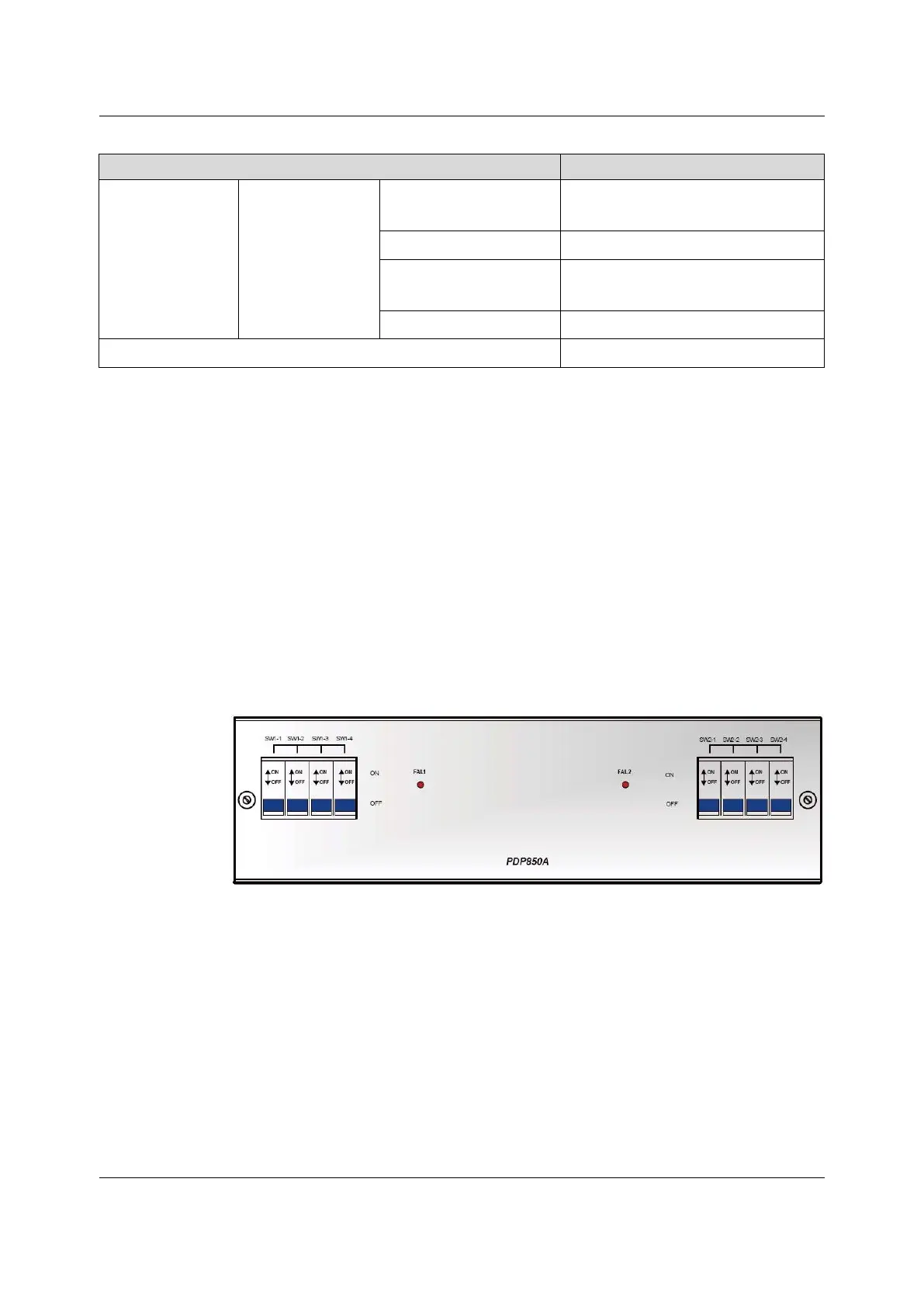

Figure 9-6 shows the appearance of the PDP (3000064) with the extended sub-
model 1FH or 2FH. The locations of automatic circuit breakers (ACB) and lightning
protection alarm indicators (FAIL) are marked on the front panel. SW1-1 to SW1-4
control four channels of -48 V power supplies in area A, and SW2-1 and SW2-4
control four channels of -48 V power supplies in area B. FAIL1 indicates the
lightning protection failure alarm for the power supply XS15, and FAIL2 indicates
that for the power supply XS16.
Figure 9-6 Panel of the PDP (3000064) with Extended Model Numbers 1FH and 2FH
Terminal Board
Remove the front panel of the PDP (3000064), and you can see the components
(such as connectors and jumper pins) distributed on the PDP panel.
Figure 9-7 shows the PDP (3000064) with the extended sub-model 1FH or 2FH.
Version: B
119
