FiberHome AN6000 Series User Manual

AN6000 Series Optical Line Terminal Equipment Hardware Description

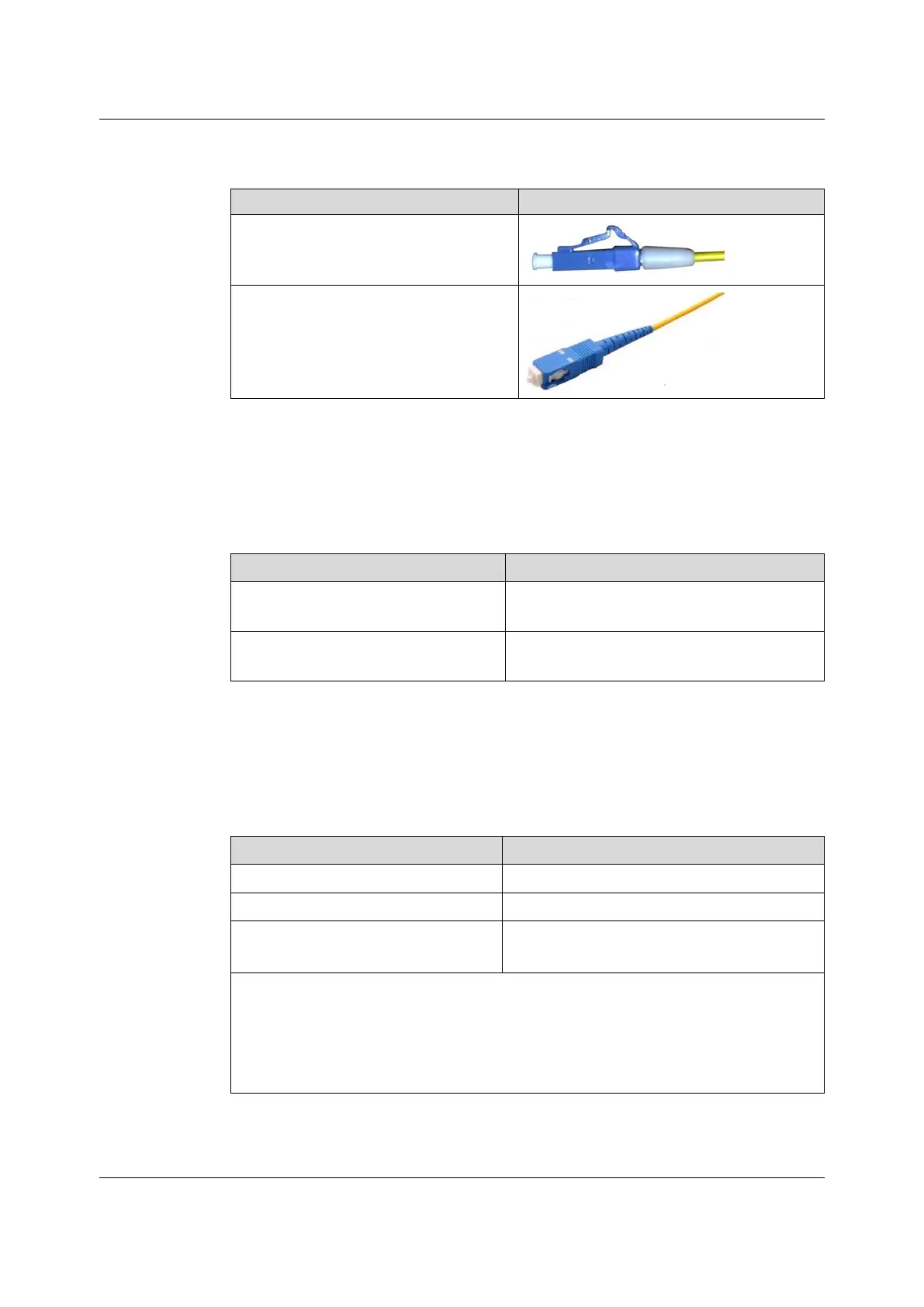

Table 7-8 Optical Fiber Connectors
Model Illustration
LC/PC connector
SC/PC connector
Technical Specifications
The technical specifications of the optical fiber jumper are shown in Table 7-9.
Table 7-9 Technical Specifications of the Optical Fiber Jumper
Item
Specification
Model of the optical fiber connector
u LC/PC
u SC/PC
Model of the optical fiber
u OFC-LC/PC-LC/PC-S-20
u OFC-SC/PC-SC/PC-S-20
Fiber Jumper Selection Criteria
Table 7-10 describes the criteria for selecting fiber jumpers.
Table 7-10 Criteria for Selecting Fiber Jumpers
Determine...
According to...
Length On-site investigation
Single-mode / multi-mode Optical module type
Type of the optical fiber connector
u Optical module type
u Cabinet depth
Note 1
Note 1: The main specifications of the commonly used LC/PC and SC/PC connectors are as
follows. When the equipment is installed in a 300 mm deep cabinet, short connectors
are recommended.
u LC/PC: 31 mm (short connector), 48 mm (long connector)
u SC/PC: 39 mm (short connector), 55 mm (long connector)
92
Version: B
