AN6000 Series Optical Line Terminal Equipment Hardware Description

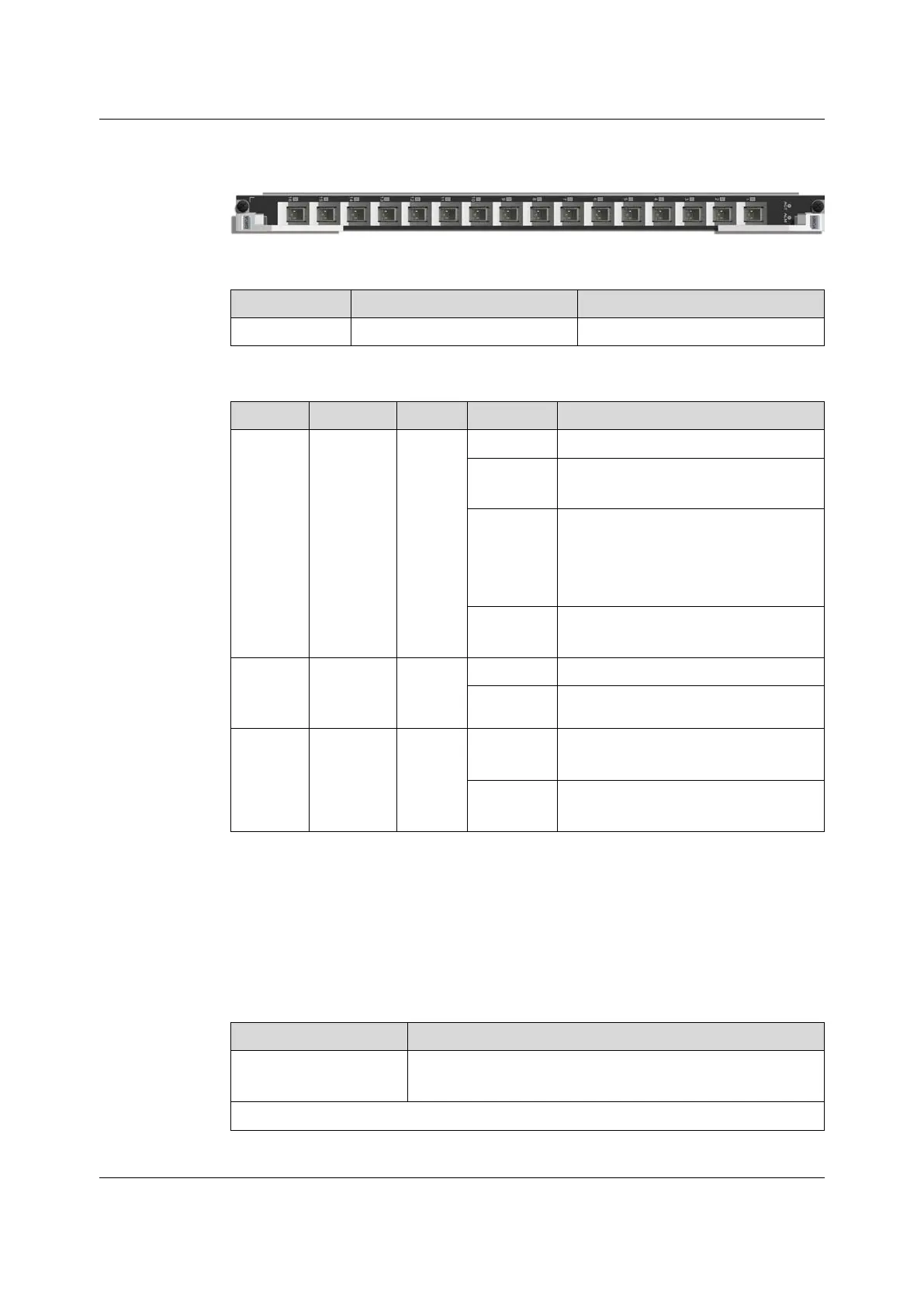

Panel Description
Table 5-26 Interfaces
Identifier
Meaning Description
1 to 16
GPON & XG-PON Combo ports
Connect to ONUs via an ODN.
Table 5-27 Indicator LEDs
Identifier
Meaning
Color Status
Description
ACT
Working
indicator
LED
Green
ON
The card is working normally.
Blinking
slowly
The card is being initialized.
Blinking
quickly
The card is receiving a configuration
command from the core switch card or
the communication between the active
and standby cards is being set up.
OFF
The card is not powered on normally or is
reset abnormally.
ALM
Alarm
indicator
LED
Red
ON
The card has an urgent alarm.
OFF
The card has no urgent alarms.
1 to 16
Port status
indicator
LED
Green
ON
The ONU under the PON port is
registered and authorized.
OFF
No ONU under the PON port is
registered or authorized.
Technical Specifications
See Comparison Between PON Combo Interface Cards for the technical
specifications.
Matching Module
Module Type
Module Code
GPON & XG-PON Combo
optical module
10/2.5G: 2.5/1.25G-20km-XG-PON: GPON OLT-SFP+ (C+ ODN
CLASS)
Note 1: Combo PON Optical Module describes the module specifications.
