Chapter 6: Calibration Procedures
6-37
Leveling the Inspection Head
It is critical that you level the Inspection Head over the production
line. If the head is not level, you will not achieve fill level
optimization.
1. Place a small carpenter's level along the bottom of the FT-70 so
that it spans the inspection tunnel. You may need to raise the
inspection head to allow room to fit the level between the
conveyor and bottom of the FT-70.
2. If the head is not level, you must loosen the FT-70 mounting
stand base, and possibly other parts of the stand, in order to
shift the position of the Inspection Head.

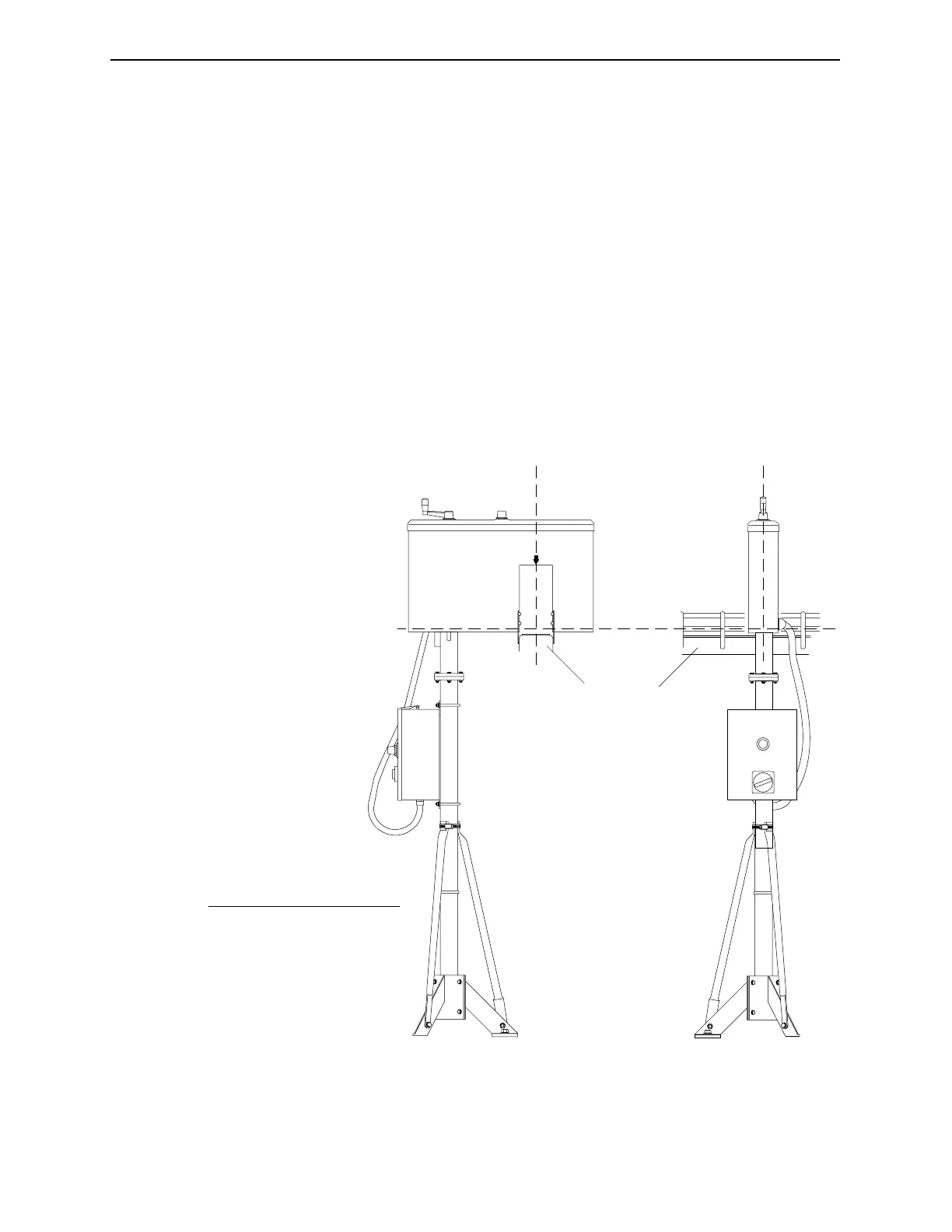

Figure 6-4. Leveling the Inspection Head.
1
1
2
3
3
No. Description
1 Vertical Centerline
2 Horizontal Centerline
3 Conveyor
Industrial Dynamics Company, Ltd. © Form 40256-0600
