Filtec FT-70c - Aligning the Inspection Trigger

FT-70 Fill Level Inspector Service Manual
4-8
Aligning the Inspection Trigger
You must align the inspection trigger height so that the trigger
beam contacts the container at the widest part of the lid.

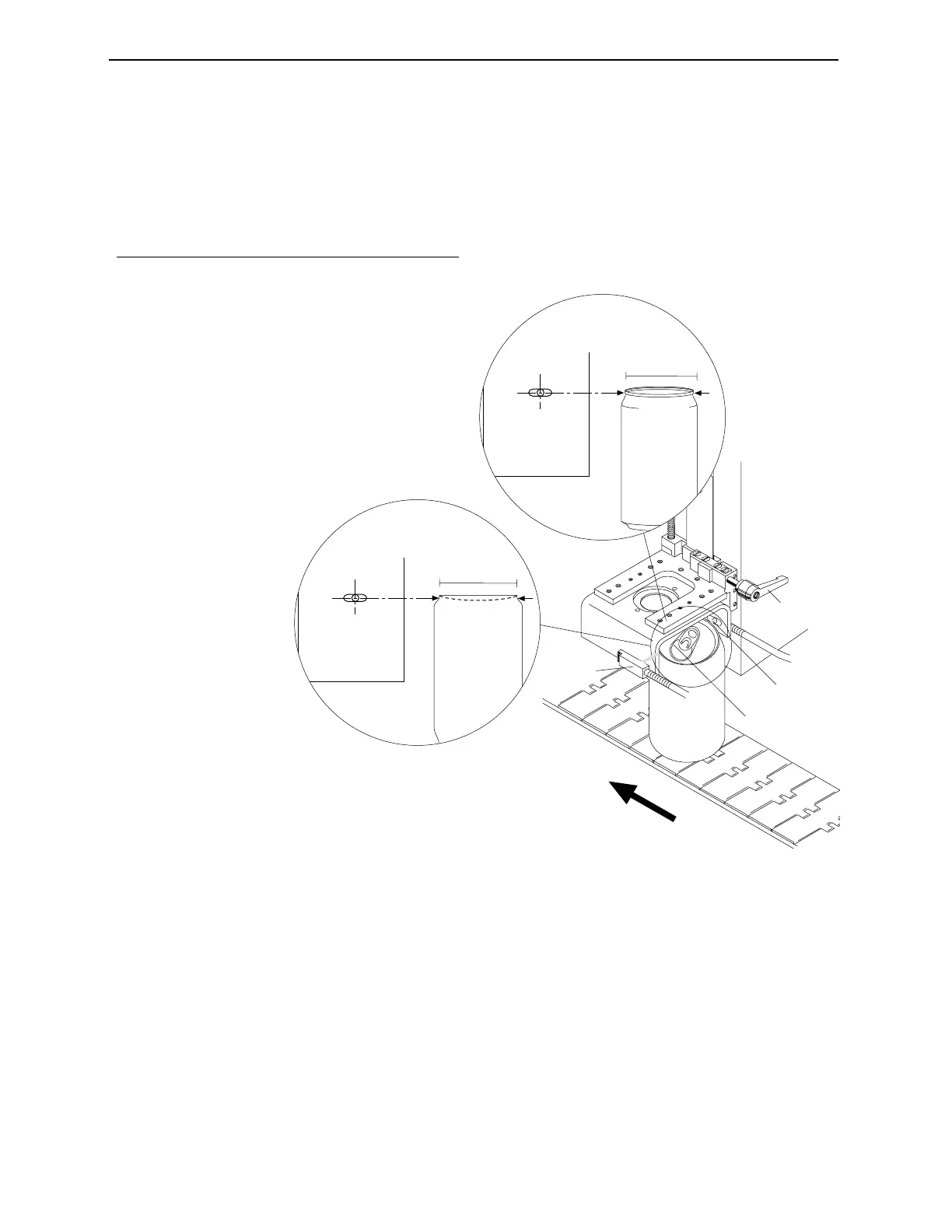

Figure 4-4. Align the Inspection Trigger Beam.
1. Loosen the Centerline Bracket height Lock, and using the
Centerline Sensor Bracket Height Crank, raise the bracket all
the way.
2. Center a properly filled and sealed production container in the
inspection tunnel so that when the sensor mounting bracket is
lowered, it is aligned with the trigger beam.
1
3
5
4
7
6
8
2
7
6
9
No. Description
1 Trigger Height Lock
2 Trigger Beam Emitter
3 Trigger Beam Centerline
4 Trigger Beam Receiver
5 Container Travel
6 Trigger Horizontal Centerline
7 Trigger Vertical Centerline
8 Width of Container at Trigger Point (top up)
9 Width of Container at Trigger Point (botom up)
Industrial Dynamics Company, Ltd. © 40256-0600
