FT-70 Fill Level Inspector Service Manual
1-10
Container Types
The FT-70 is compatible with aluminum, steel, and cardboard cans
and can accommodate most shapes and sizes providing they do
not exceed the physical dimensions of the inspection tunnel. Types
of containers that can be inspected include:

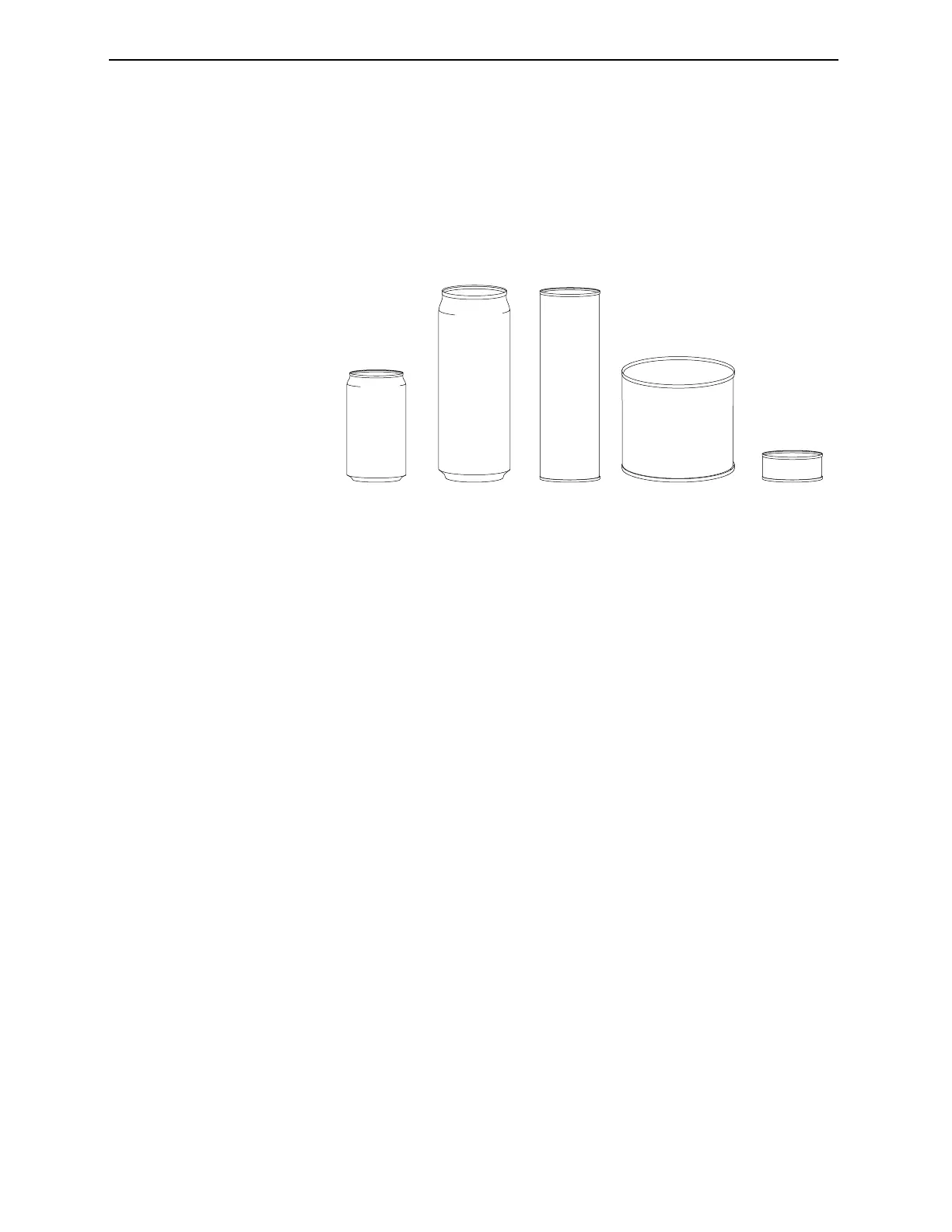

Figure 1-4. Some container types that can be inspected.
Container Spacing
A minimum of 3 mm spacing between containers at the trigger
point is required for proper triggering. Containers must not be
stacked or interleaved.
Control Panel
The Control Panel Interface is mounted directly into the FT-70 and
allows the operator access to all system controls.
The control panel consists of six function selection keys, two arrow
keys, and a two-line liquid crystal display (LCD) which displays
system messages in the selected language.
