FT-70 Fill Level Inspector Service Manual
4-14
Aligning the Down Can Sensor
The Down Can Sensor is mounted on separate brackets that are
attached on the bottom of the inspection head and aligned to the
head centerline.

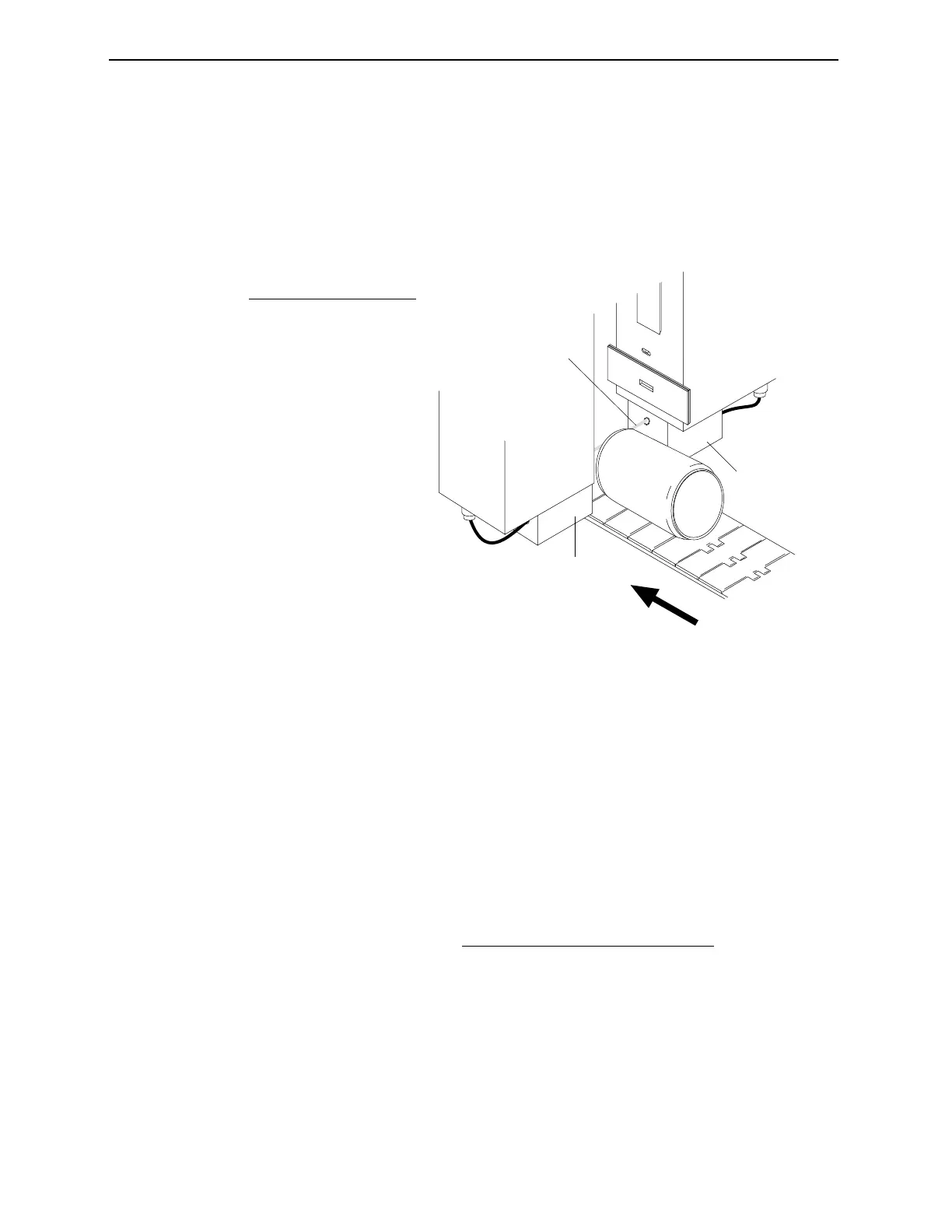

Figure 4-7. Aligning the Down Can Sensor.
1.The mounting brackets themselves are not adjustable, however
the sensor height can be adjusted by positioning it in the
proper mounting hole within the block.
3.If you will not be performing further alignment procedures,
turn on the Safety Interlock Switch to reactivte the X-ray
Generator. See Chapter 5: The Safety Interlock Switch.
Drawing Can Sizes
26796 8, 12, 16 oz.
32293 8 , 10,12, 16, 24 oz.
4
1
3
2
No. Description
1 Sensor beam
2 Sensor Emitter
3 Sensor Receiver
4 Container Travel
then refer to the FT-50 and FT-70 Installation and Service
Drawing Pack to locate the drawing of your bracket. Use the
information in the drawing to determine the proper position foro
the sensor.
2.To determine the proper sensor height, align fill level inpection
beam first (and perform Fill Level Optimization if needed) and
Industrial Dynamics Company, Ltd. © 40256-0600
