Chapter 3: Installing the FT-70
3-25
4. Wire the main power cable to the FT-70 power filter wiring.
Wiring the Main Power Supply Cable to the I/O Junction Box
Refer to wiring diagram in Chapter 11 when performing this
procedure.
Warning
Disconnect all electrical power sources from the equipment before
attempting any installation procedure. Failure to do so can result
in personal injury and equipment damage.
1. Remove one of the plugs in the bottom of the junction box and
install a liquid tight fitting.
2. Route the main power cable from the main power supply
through the cable opening and into the Junction Box.

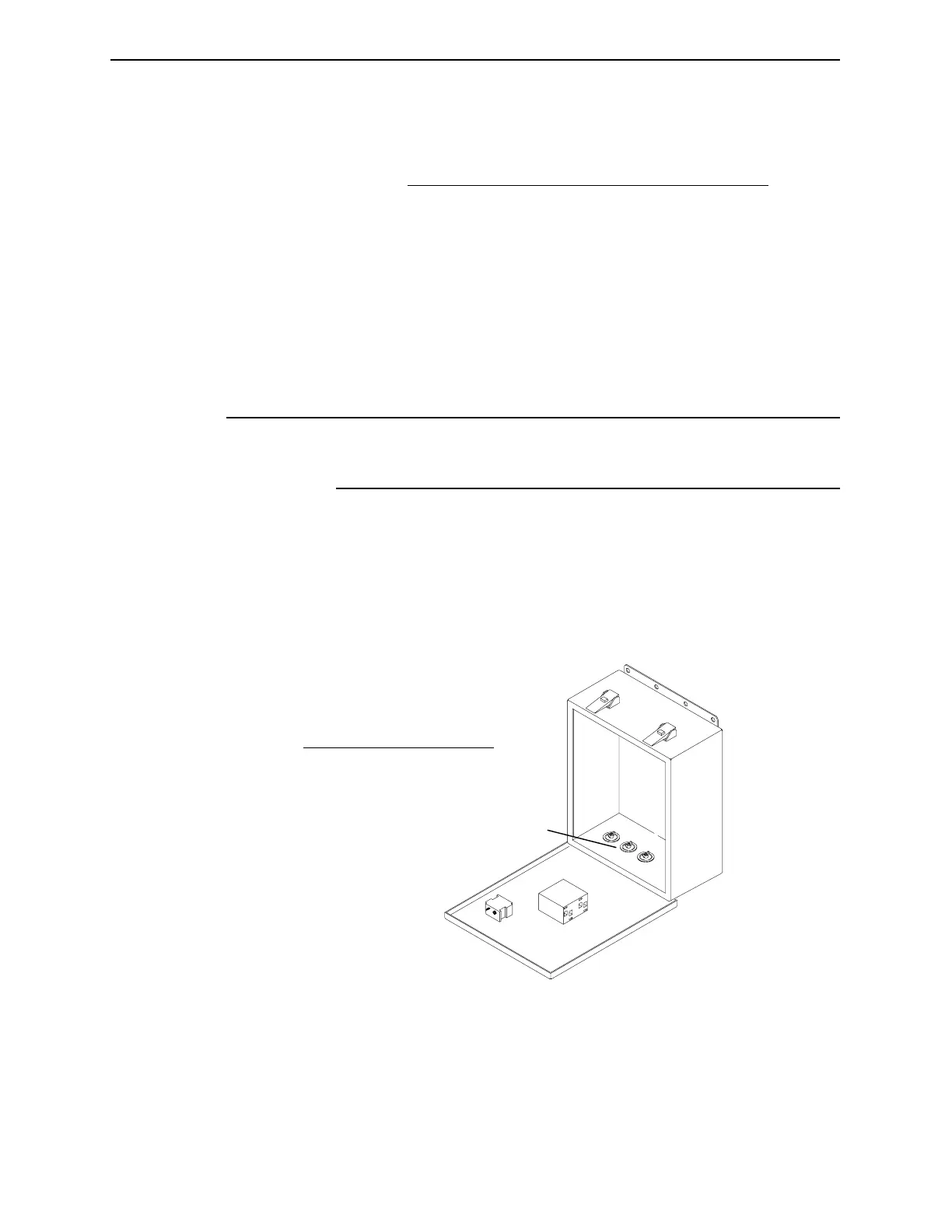

Figure 3-23. Route the Power Cable into the Junction Box.
Connect the Power Cable: To the FT-70:
Hot Brown
Neutral Blue
Ground Ground Stud
1
No. Description
1 Cable Opening/Plug
Industrial Dynamics Company, Ltd. © Form 40256-0600
