6. Attach the slant brace floor mounting brackets to the slant
brace stubs and then slide the stubs into the bottom ends of the
slant braces approximately 1.5 inches. The floor brackets
should rest flat on the floor.

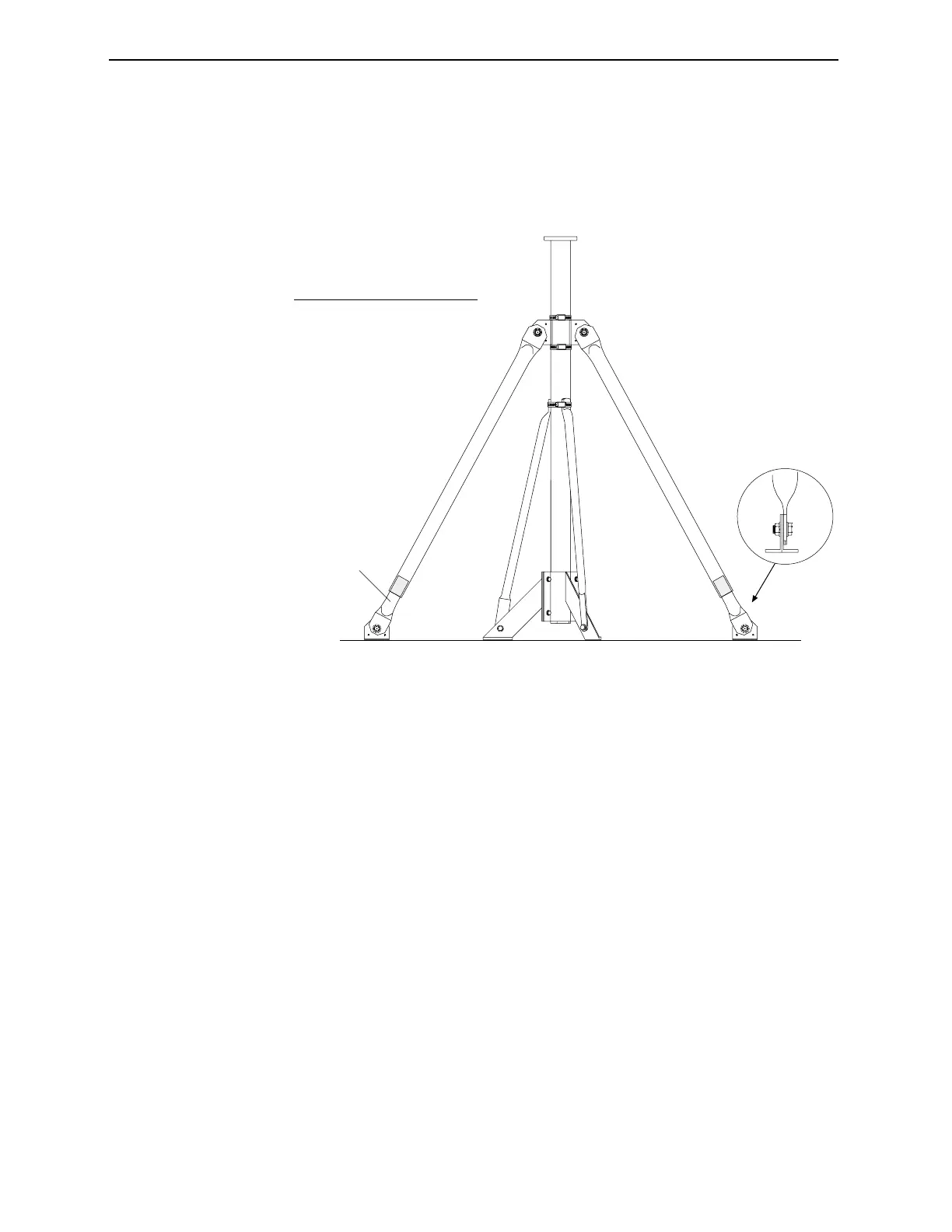

Figure 3-14. Attaching the slant braces and slant brace stubs.
1
No. Description
1 Slant Brace Stubs
