2. Connect the air line from the filter/regulator to the air input of
the FT-70.

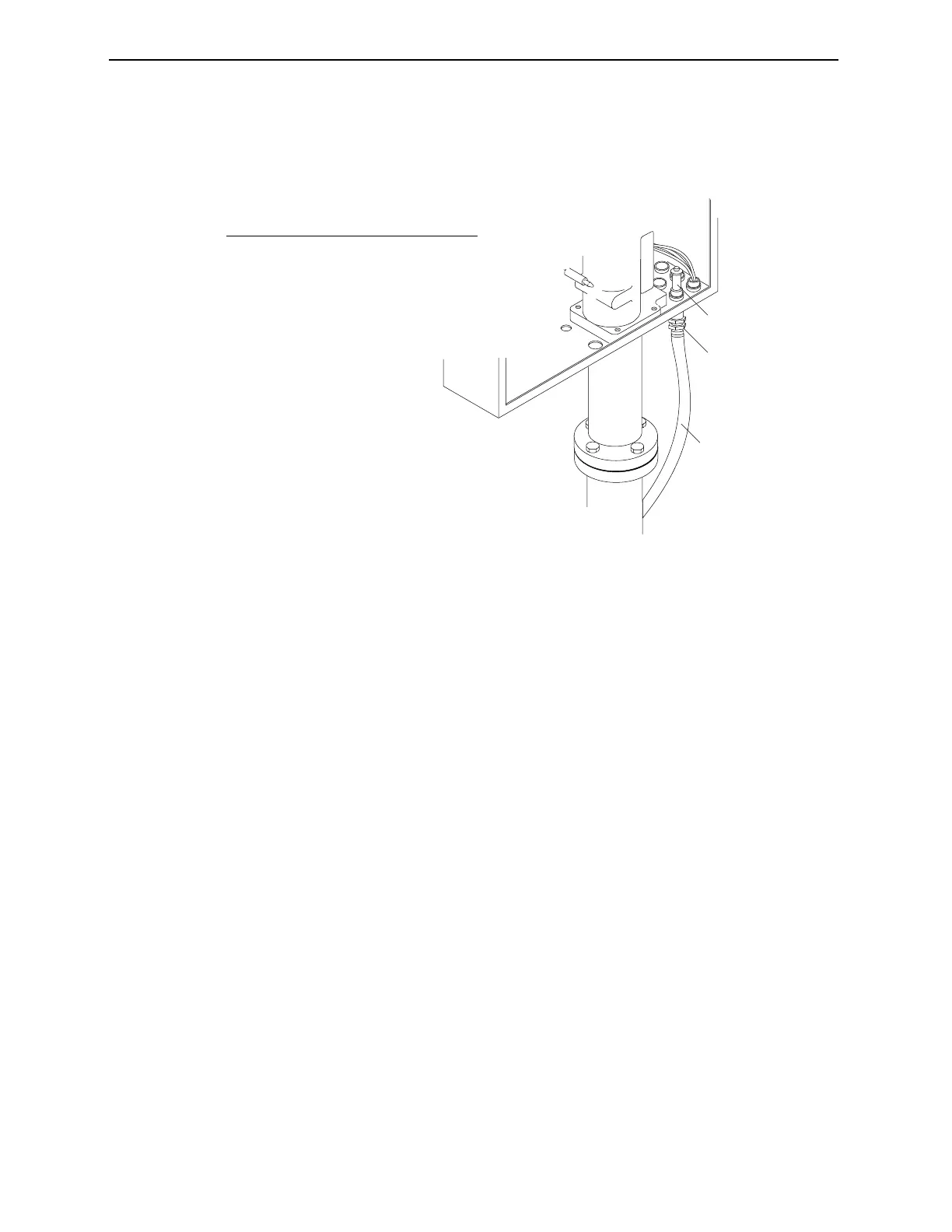

Figure 3-18. Connecting the air line to the FT-70.
3. Connect the input air source line to the input of the
filter/regulator. The input air pressure should be approxi-
mately 80-120 psi at 1.5 cfm.
1
2
3
No. Description
1 Air Regulator/Disperser
2 Air Input
3 Air Hose (from filter/regulator)
